1. Mission
6 vibration/shock + 2 temperature channels in one pack – covers bearings, shaft position & key-phasor
24-bit high-resolution sampling – enables spectral analysis & predictive maintenance
Dual-port IONet – real-time data, SOE and trending straight into the controller
2. At a Glance
|
Channel
|
Function
|
Range / Sensor Types
|
Accuracy / Resolution
|
|
0-5
|
Vibration
|
Eddy-current, Velomitor, ICP accel.
|
24-bit ADC
|
|
6-7
|
Temperature
|
K or J thermocouple
|
±0.1 %
|
|
System Interface
|
Specification
|
|
Network
|
2 × RJ45, 100 Mbit IONet (UDP)
|
|
Power
|
Rack 28 VDC (18-32 V)
|
|
Isolation
|
Channel-system 2.5 kV AC
|
|
Operating Temp.
|
-20 °C → +60 °C
|
|
Mounting
|
Mark VIe rack, hot-swap
|
|
Firmware
|
Remote update via ToolboxST
|
3. Typical Applications
ü Gas & steam-turbine bearing vibration, shaft displacement, key-phasor
ü Online condition monitoring for compressors, pumps, fans
ü AHMI predictive-maintenance solution with System 1® or ToolboxST
4. Quick Tips
ü Select sensor type & sensitivity correctly in ToolboxST
ü Calibrate channels yearly to keep ±1 % accuracy
ü Avoid high humidity / strong EMI; use original armoured extension cables
5. One-sentence Summary

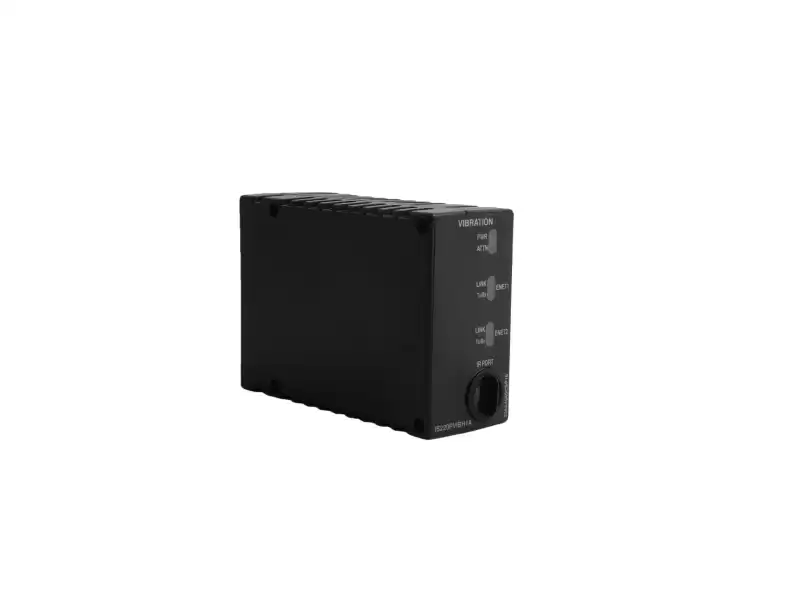

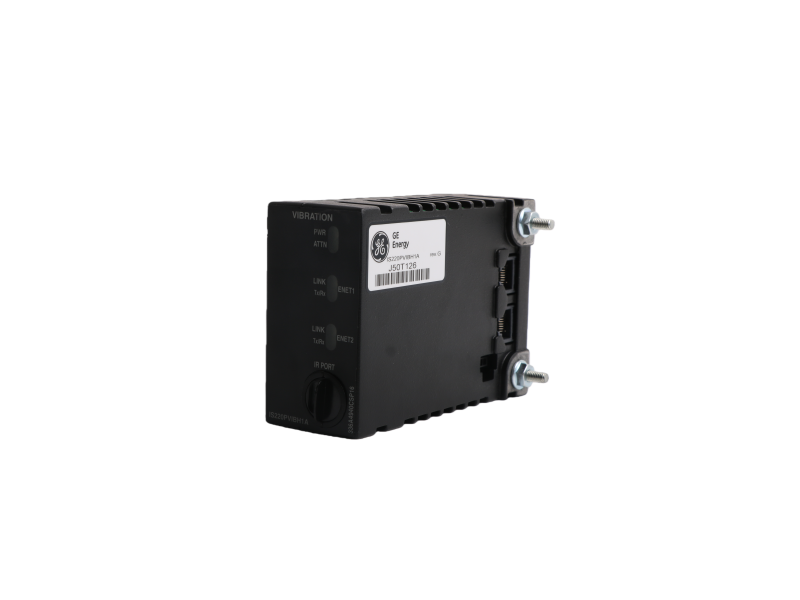

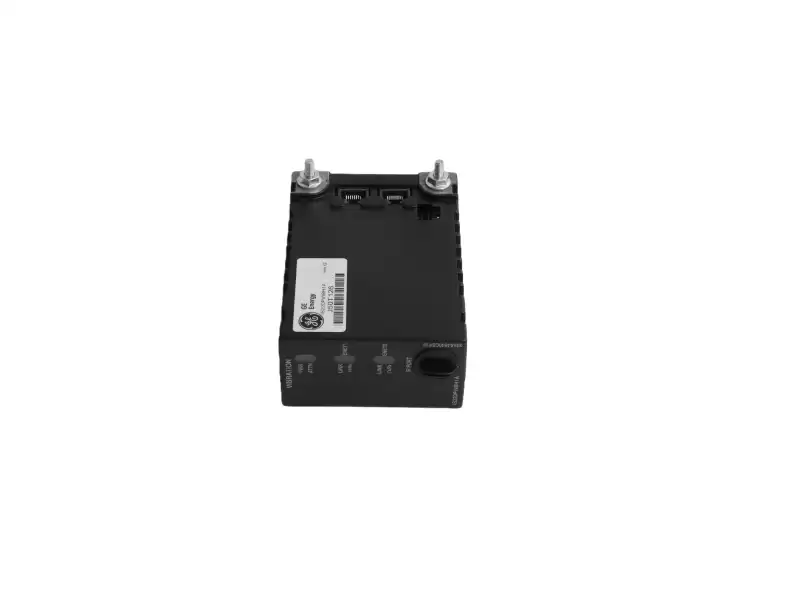

IS220PVIBH1A is Mark VIe’s “mechanical stethoscope”, turning vibration and temperature into predictable machine life and automatic trip protection.
