Identity & Function

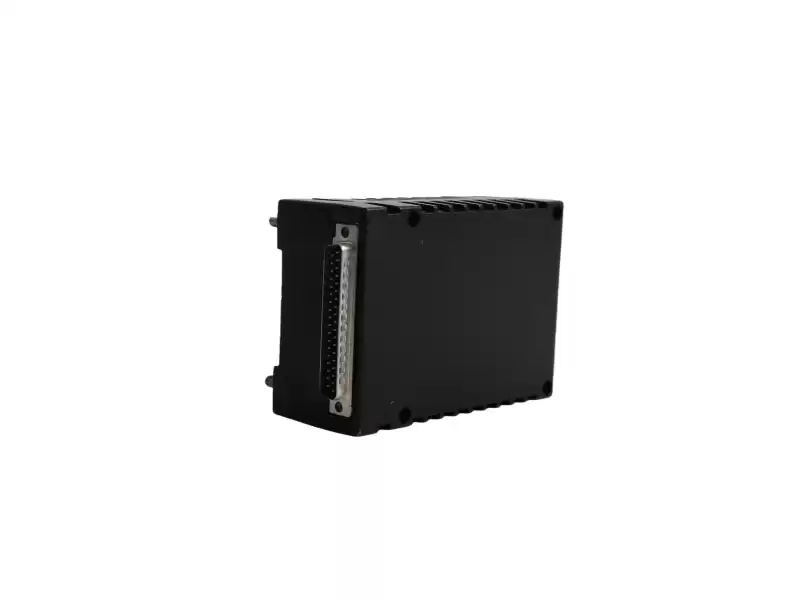

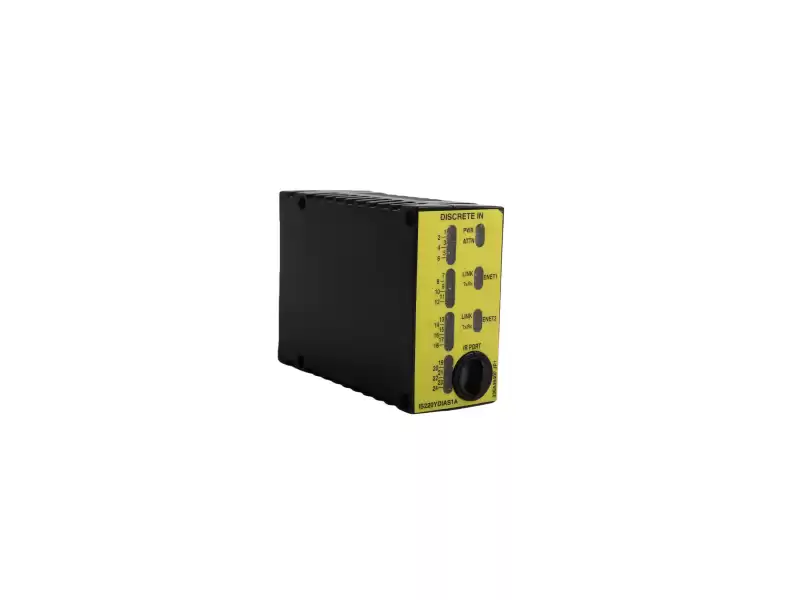

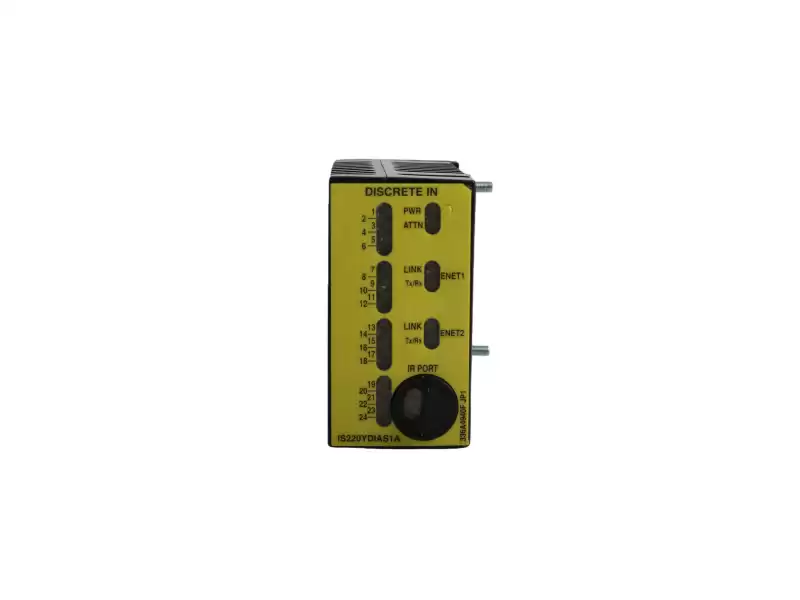

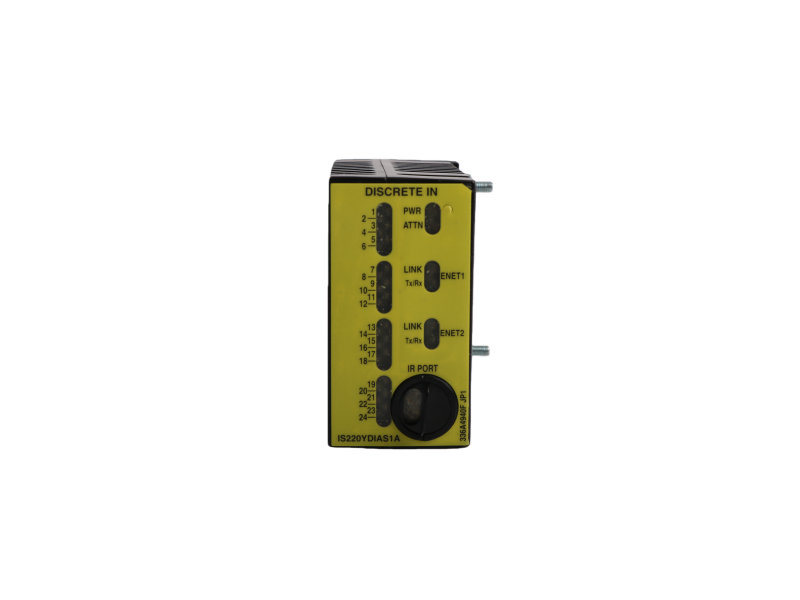

IS220YDIAS1AK is a 16-channel, 24 VDC discrete-input I/O-Pack in GE’s Mark-VIe safety-critical architecture.
It is NOT a stand-alone PLC card; it clicks directly onto a terminal board (e.g., IS200TREGH1B) and communicates with the controller over the IONet / Ethernet I/O ring. In turbine language it is the “contact-wetting” pack for speed probes, limit switches, vibration locks and ESD push-buttons.
Key Parameters at a Glance
|
Item
|
Specification
|
|
Channels
|
16, current-sinking
|
|
Nominal Voltage
|
24 VDC (operating range 16…32 V)
|
|
Input Impedance
|
4.7 kΩ
|
|
Typical Wetting Current
|
5 mA
|
|
Scan / Debounce
|
1 ms, configurable 0…255 ms
|
|
Isolation
|
500 Vrms channel-to-bus, 1500 Vrms field-to-ground
|
|
Power Consumption
|
≤5 W from 28 VDC back-plane, no external supply
|
|
Operating Temperature
|
-40…+70 °C
|
|
Relative Humidity
|
5…95 % RH non-condensing
|
|
Protection Rating
|
IP20
|
|
Housing / Dimensions / Weight
|
Aluminum, 12.2 × 8.2 × 6 cm, ~0.38 kg
|
|
Certifications
|
CE, UL, CSA, IEC 61131-2 Zone 2; optional G3 conformal coat
|
|
Communication
|
100 Mb/s EtherNet I/O (IONet)
|
One-Minute Installation Checklist
a) Slide along DIN-rail until black latch clicks—wrong orientation will not seat.
b) Use Belden 7965A CAT-5e for IONet; copper ≤100 m, fiber up to 2 km with SFP.
c) Field wires: 0.5–2.5 mm², 85 °C minimum, cage-clamp torque 0.5 N·m.
d) Set “Input Filter” in ToolboxST—default 2 ms eliminates contact bounce.
e) Redundancy: same part number covers Simplex, Dual or TMR R-sectors.
Compatibility & Retrofit
Drop-in replacement for legacy IS200STAIH2A board-set while keeping existing terminal boards and field cabling. Do NOT confuse with IS220YDIAS1A (no “K” suffix) which lacks G3 corrosion coating.
Typical Applications
Gas & steam turbines, centrifugal compressors, HRSG gensets—any SIL-2 discrete input inside a Mark-VIe or Mark-VIeS safety loop. Common signals: overspeed bolt, thrust-bearing wear, fire-gas trip, generator differential lock-out.
Quick Fault Guide
• IONet LED amber blink → switch port mismatch; set fixed 100-FDX.
• DIAG LED red 2 Hz → channel over-voltage (>32 V); add external 24 V regulator.
• No LED life → pack not seated or 28 V rail missing; measure P3-P4 ≥18 V.
