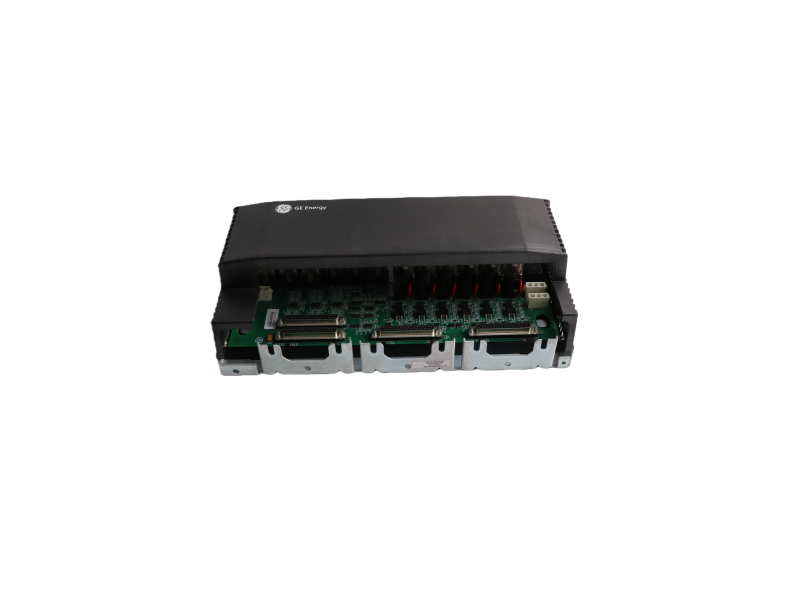

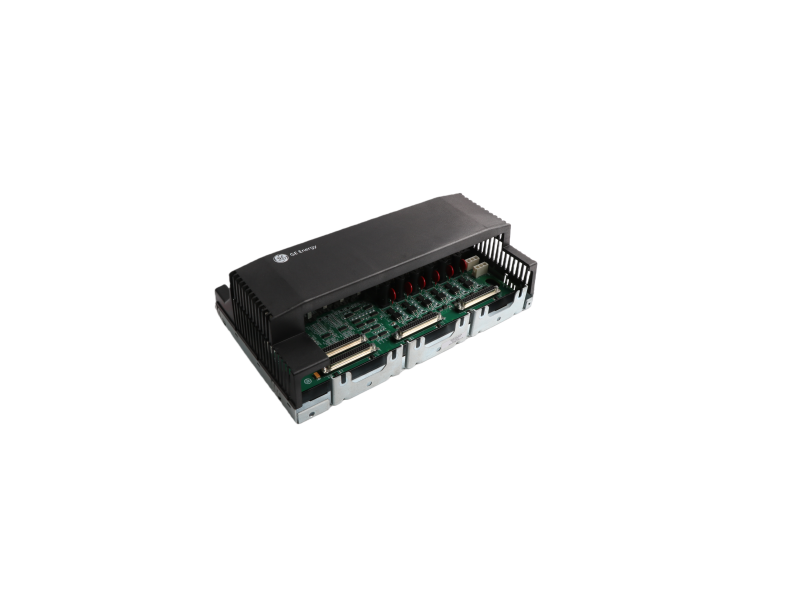

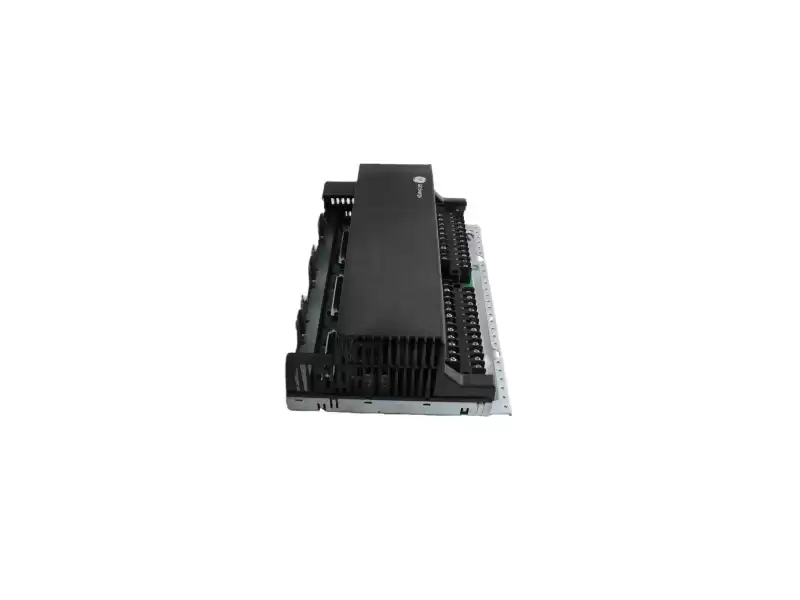

What are GE IS230TRLSH2B & IS200TRLYS1BGG?
They are a matched pair of AC relay output boards used in GE Speedtronic Mark VI and VIe systems to switch high-power alternating-current loads while providing safety isolation.
Key Data at a Glance
|
Feature
|
IS230TRLSH2B (Mark VIe)
|
IS200TRLYS1BGG (Mark VI)
|
|
Function
|
AC relay output module
|
AC relay terminal board
|
|
Channels
|
8 × Form-A (SPST-NO)
|
8 × Form-A (SPST-NO)
|
|
Load rating
|
115 Vac 2 A / 240 Vac 1 A (AC-15, 50/60 Hz)
|
same
|
|
Contact material
|
AgSnO₂, ≥ 10⁵ electrical operations
|
AgSnO₂
|
|
Isolation
|
coil-contact 4 kVrms; ch-system 2 kVrms
|
same
|
|
Surge protection
|
on-board 7 × 20 mm MOV (150 J)
|
7 × MOV
|
|
Field terminals
|
pluggable 20-pos., vertical entry
|
48 screw terminals, rear exit
|
|
Mounting
|
35 mm DIN-rail, hot-swap
|
rear-panel screws, fixed
|
|
Size / weight
|
330 × 178 × 55 mm, 1.42 kg
|
≈ 160 × 178 mm, 0.7 kg
|
|
Certifications
|
CE, UL, ABS, Class I Zone 2
|
UL E2067685, Class I Div 2
|
Typical Applications
1. Start/stop of AC aux. motors on gas/steam turbines
2. Heaters, cooling fans, solenoid valves (220 Vac loops)
3. Plant ESD system AC trip outputs
4. Redundant BMS AC load drives
Comparison Highlights
|
Aspect
|
IS230TRLSH2B
|
IS200TRLYS1BGG
|
|
System
|
Mark VIe
|
Mark VI
|
|
Installation
|
DIN-rail, online replacement
|
cabinet back-plane, power-off
|
|
Communication
|
IONet Ethernet, remote diag.
|
cable to I/O Pack
|
|
Surge elements
|
built-in 7 MOV
|
built-in 7 MOV
|
|
Stock
|
in stock
|
in stock
|
