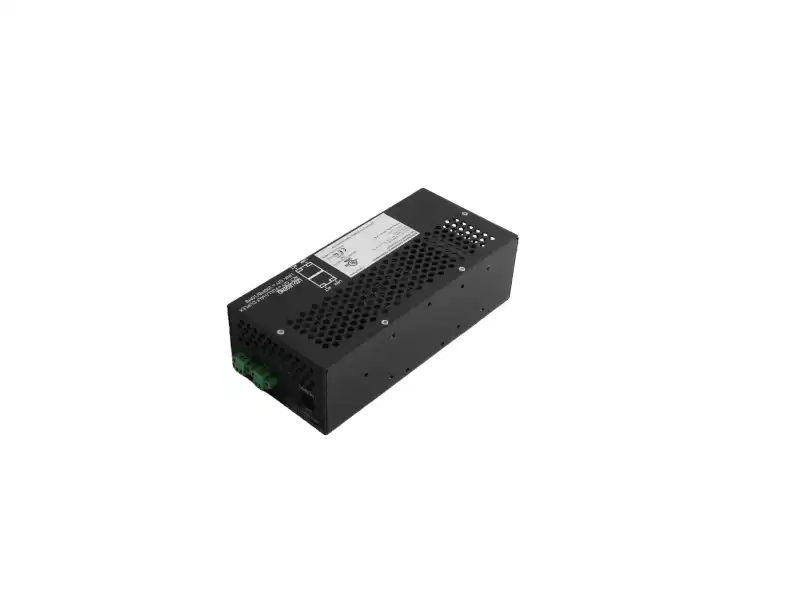

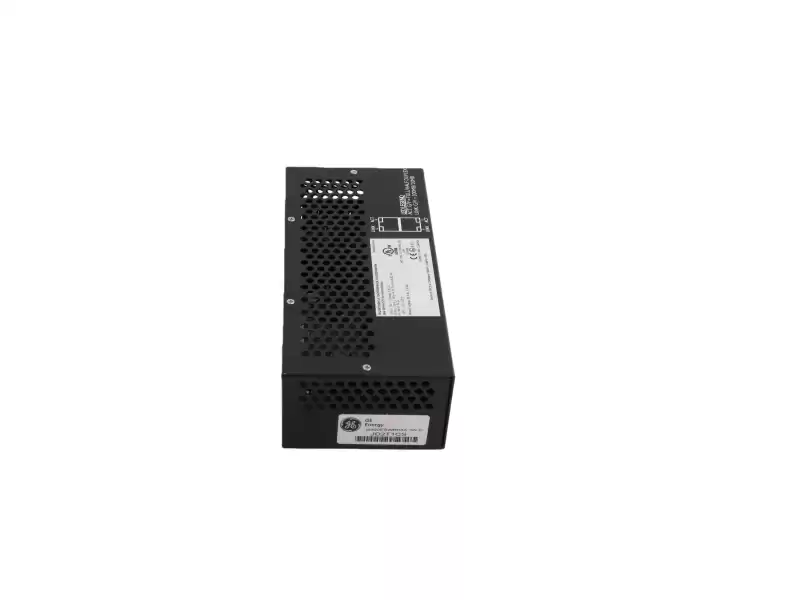

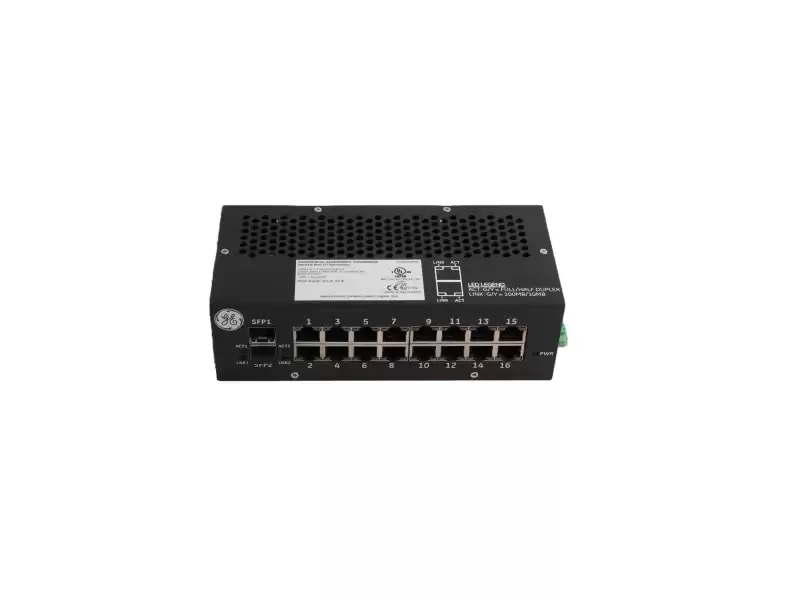

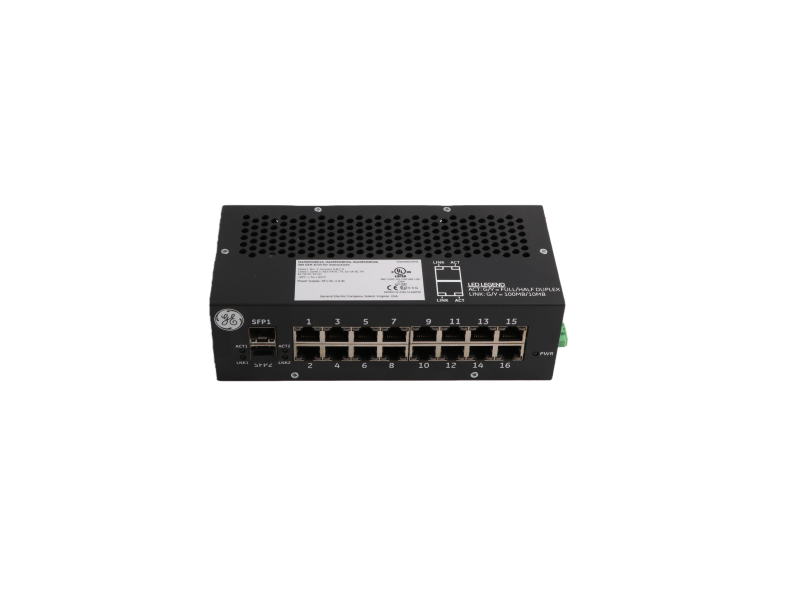

The GE IS420ESWBH3A is an industrial-grade Ethernet switch module (IONet Switch) used in the GE Mark VIe Control System.
It belongs to the ESWB series (Ethernet Switch Board) and provides reliable, high-speed network communication between controllers, I/O modules, and operator interfaces (HMIs).
The IS420ESWBH3A plays a critical role in the IONet communication network of the Mark VIe/Mark VIeS system, ensuring robust data transfer and redundancy across turbine and process control environments.
Technical Specifications
|
Item
|
Description
|
|
Model Number
|
IS420ESWBH3A
|
|
Product Name
|
Industrial Ethernet Switch (IONet Switch Module)
|
|
Manufacturer
|
General Electric (GE)
|
|
Series
|
Mark VIe / Mark VIeS Control System
|
|
Function Type
|
Industrial Ethernet communication switch
|
|
Copper Ports
|
8 × 10/100Base-TX RJ-45
|
|
Fiber Ports
|
2 × 100Base-FX LC (multimode fiber)
|
|
Power Supply
|
24 VDC (operating range: 18–32 VDC)
|
|
Power Consumption
|
Typical 10 W
|
|
Mounting Type
|
DIN-rail installation
|
|
Cooling Method
|
Fanless, natural convection
|
Key Features
1. Supports redundant ring network architecture for improved system reliability
2. Enables full-duplex communication, auto-negotiation, and flow control
3. Offers hybrid copper and fiber connectivity to suit various network layouts
4. Designed for high-temperature and 24/7 continuous operation environments
5. Fully compatible with GE Mark VIe I/O packs such as EPDM, EPBP, and EPMC
Difference Between IS420ESWAH3A and IS420ESWBH3A
|
Specification
|
IS420ESWAH3A
|
IS420ESWBH3A
|
|
Copper Ports
|
8 × RJ-45
|
8 × RJ-45
|
|
Fiber Ports
|
1 × LC fiber
|
2 × LC fiber
|
|
Port Type
|
Single fiber port
|
Dual fiber ports (enhanced redundancy)
|
|
System Compatibility
|
Mark VIe / Mark VIeS
|
Mark VIe / Mark VIeS
|
|
Network Reliability
|
Standard level
|
Enhanced reliability
|
|
Typical Use Case
|
Standard IONet node communication
|
High-speed, redundant control network link
|
✅ Conclusion:
The IS420ESWBH3A is an enhanced version of the IS420ESWAH3A.
With dual fiber ports, it provides greater network redundancy and data reliability, making it ideal for mission-critical industrial control systems that require high uptime and robust communication.
