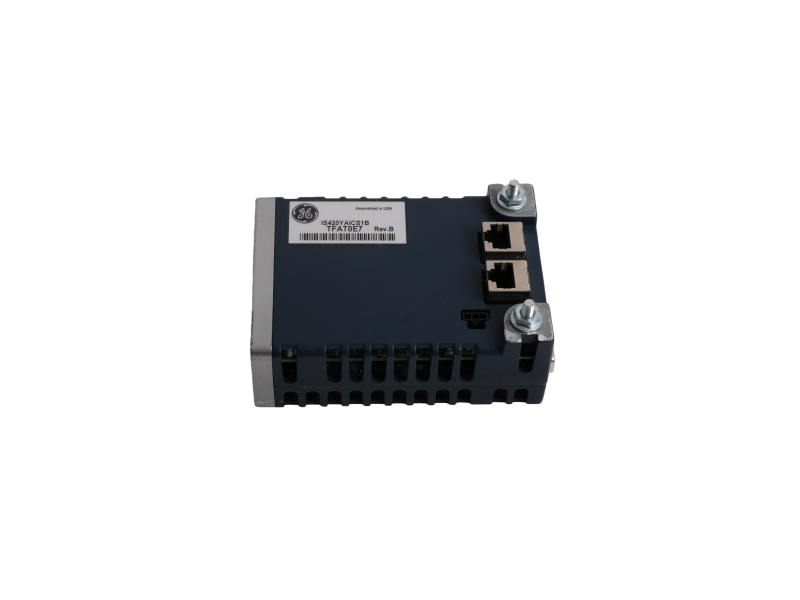

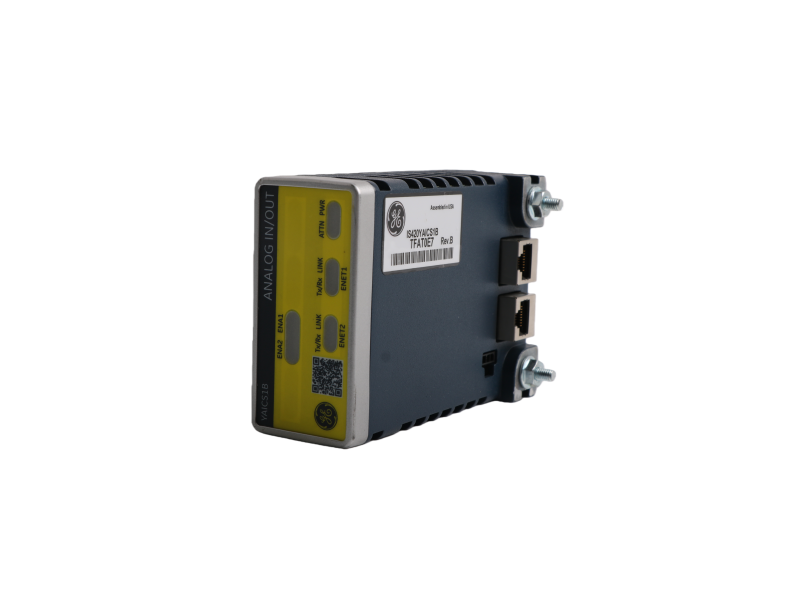

Product Snapshot – IS420YAICS1B
|
Key Parameter
|
GE Original Spec
|
PLC Autocontroller Equivalent (AC-IS420YAICS1B)
|
|
Analog Inputs
|
10, ±5 V / ±10 V / 0-20 mA / TC
|
10, identical range, 16-bit, 1 kHz scan
|
|
Analog Outputs
|
2, 0-20 mA, 12-bit
|
2, 0-20 mA, 16-bit, user-scalable
|
|
Network
|
Dual 10/100 Mbit IONet (UDP)
|
Same, auto-MDIX, < 2 ms loop latency
|
|
Redundancy
|
Simplex / TMR
|
Simplex / TMR, hot-swap, zero packet loss
|
|
Isolation
|
1 500 V channel-earth
|
Reinforced 2 300 V, 5-way protection
|
|
Firmware
|
V05.01 up
|
V05.01 + V06.03 field-upgradeable
|
|
Operating Temp.
|
-40 … +70 °C
|
-45 … +80 °C, conformal-coating optional
|
|
Power Draw @28 Vdc
|
5.3 W
|
4.6 W (energy-saving DC-DC)
|
|
MTBF @40 °C
|
285 kh
|
310 kh (Telcordia)
|
|
Warranty
|
–
|
3 years standard, 5 years extended
|
Mechanical & Wiring – Drop-In Guarantee
1. Identical footprint: 144 mm × 102 mm × 63 mm; mates with IS410STAIS2A/IS410TBAIS1C terminal boards without adapter cables

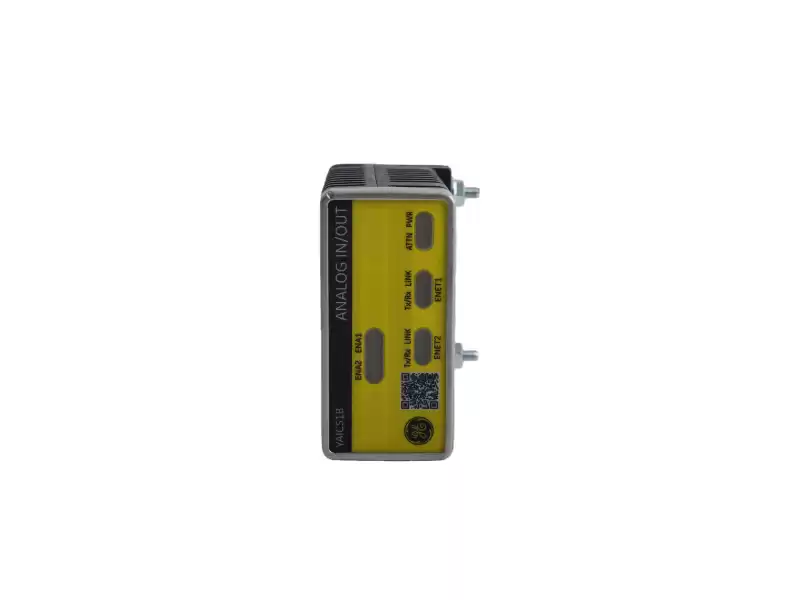

2. LEDs: 10 status LEDs mirror GE pattern – quick visual fault isolation
3. Retention: Captive screws, stainless steel, anti-vibration 5 g
Firmware & Software Compatibility
|
Toolbox Revision
|
GE Module Required
|
AC-IS420YAICS1B Support
|
|
V06.01 – V07.04
|
IS420YAICS1B
|
Native, no re-compile
|
|
V05.03 – V06.00
|
IS420YAICS1A
|
Auto-detect, A→B upgrade path
|
|
ControlST Suite
|
Identical .pib / .ion files
|
Drag-and-drop
|
