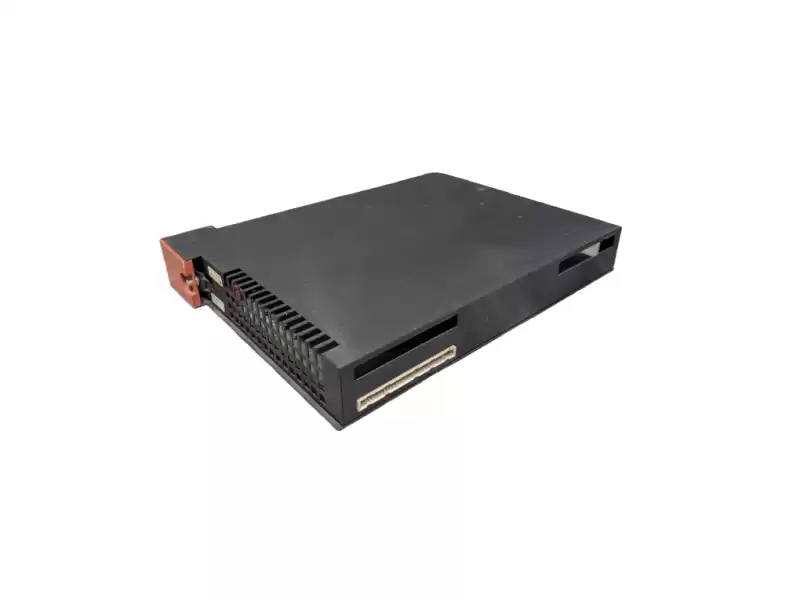

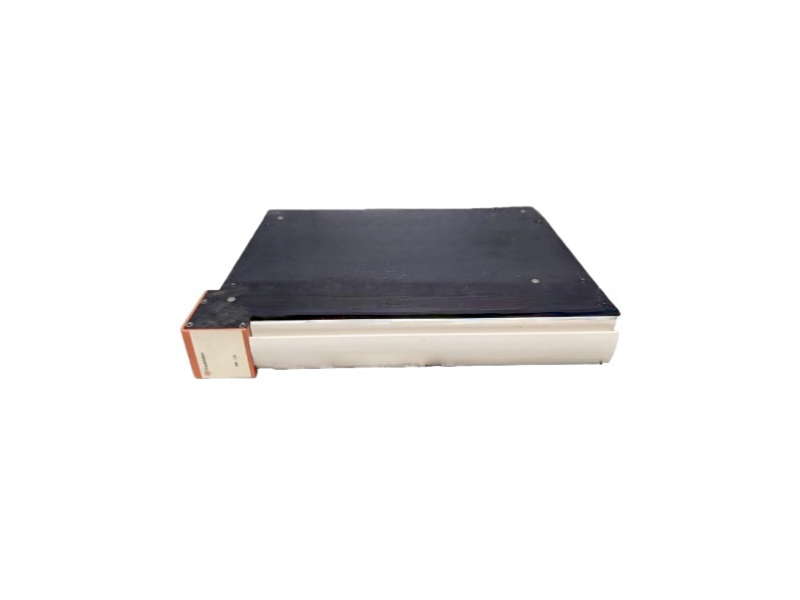

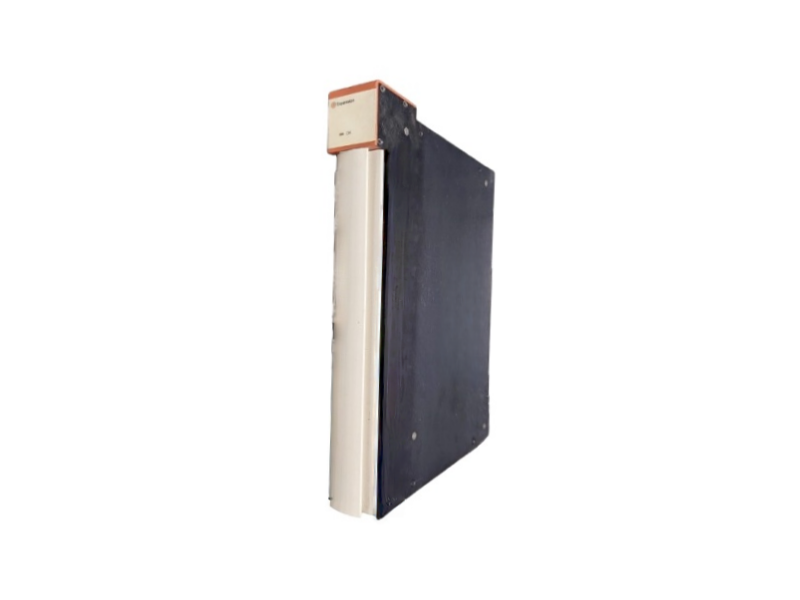

Frequently-Asked Questions – GE TGT-AIOV-8-0 Analog I/O Module
Q: How many analog channels does TGT-AIOV-8-0 provide?
A: 8 analog inputs plus 8 analog outputs; voltage and current can be mixed on the same module.
Q: Which signal ranges are supported?
A: Input –10…+10 V (also 0…10 V, 4…20 mA); Output 0…10 V (some revisions selectable ±10 V).
Q: What are the typical accuracy and refresh rate?
A: ±0.05 % of full-scale; 500 Hz–1 kHz update rate.
Q: What communication interfaces are available?
A: RS-485 (Modbus RTU); the “-T” suffix version adds Ethernet TCP/IP.
Q: Power requirements and consumption?
A: 24 V DC ±10 %; typical 5 W, max. 10 W.
Q: Environmental specifications?
A: –40…+70 °C, 5…95 % RH non-condensing, IP20.
Q: How is the module mounted?
A: 35 mm DIN-rail or panel screws.
Q: Typical applications?
A: Power-plant auxiliary control, oil & gas, water treatment, manufacturing lines—anywhere multi-channel analog acquisition & drive are required.
Our Basic Services
1. Selection Support – Cross-reference and replacement solutions for GE, ABB, Siemens, Schneider, etc.
2. Off-the-Shelf Stock – >2 000 part numbers including TGT-AIOV-8-0 and IC695 series, ships within 24 h.
3. Warranty & Repair – 12-month factory-level warranty.
Popular GE Analog I/O Modules
|
#
|
GE Part Number
|
Channels
|
Signal Range
|
Protocol
|
Remarks
|
|
1
|
TGT-AIOV-8-0
|
8 AI / 8 AO
|
–10…+10 V, 4…20 mA
|
RS-485 / Modbus
|
Cost-effective combo module
|
|
2
|
TGT-AIOV-8-0-T
|
8 AI / 8 AO
|
same as above
|
RS-485 + Ethernet
|
Network-enabled upgrade
|
|
3
|
IC695ALG708
|
8 AI
|
0…20 mA, 4…20 mA
|
RX3i PACSystems
|
12-bit, isolated
|
|
4
|
IC695ALG728
|
8 AO
|
4…20 mA
|
RX3i PACSystems
|
14-bit, HART option
|
|
5
|
IC694ALG223
|
16 AI
|
±10 V, 0…10 V
|
Series 90-30
|
High-speed voltage
|
|
6
|
IC694ALG392
|
8 AO
|
±10 V
|
Series 90-30
|
Voltage output, short-circuit protected
|
|
7
|
IC200ALG326
|
12-bit 4 AO
|
4…20 mA
|
VersaMax
|
Compact, low power
|
|
8
|
IC200ALG264
|
16 AI
|
4…20 mA, 0…20 mA
|
VersaMax
|
Channel-to-group isolated, economical
|
