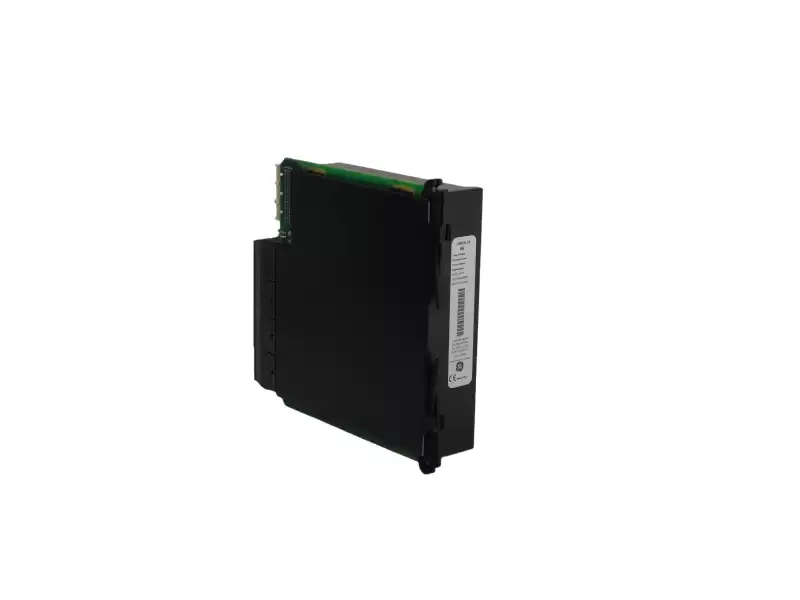

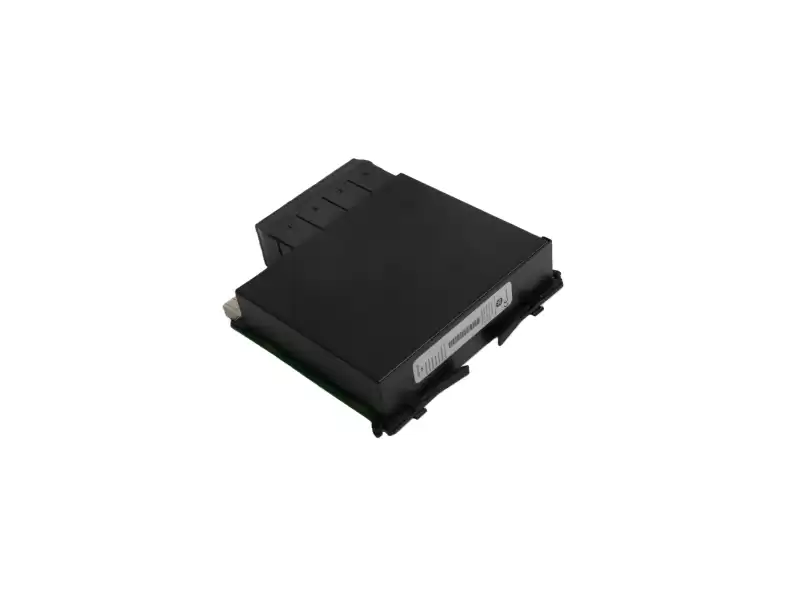

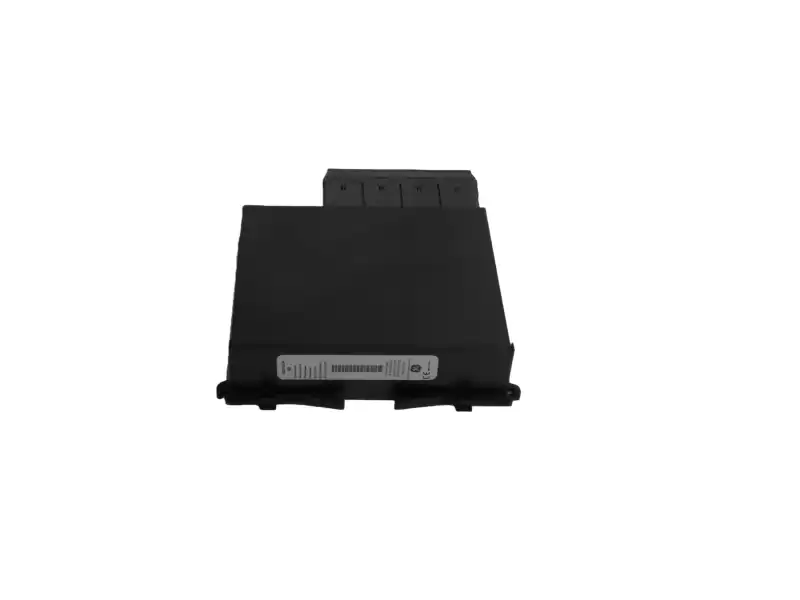

Key features
1. 8 digital inputs – dry-contact, wetting-current supervised
2. 4 Form-A (normally-open) relay outputs – 8 A make, 250 VAC/30 VDC
3. < 4 ms pick-up / drop-out time – ideal for inter-tripping and lock-out logic
4. Latching-output option – hold state without external seal-in relay
5. Hot-swappable – slide into any I/O slot while the UR rack is energized
Quick specification
|
Parameter
|
UR6AH value
|
|
Inputs
|
8, 24–250 VDC / 24–230 VAC, 2 mA wetting
|
|
Outputs
|
4 × Form-A relay, 8 A make, 6 A carry (L/R = 40 ms)
|
|
Isolation
|
2 kV RMS coil-to-contact, 1 kV RMS contact-to-ground
|
|
Burden
|
< 0.25 W per input, < 0.5 W per output (de-energised)
|
|
Operating temp
|
–20 °C … +70 °C (–40 °C storage)
|
|
MTBF
|
280 000 h @ 40 °C (Telcordia SR-332)
|
|
Agency
|
UL 508, IEC 60255-1, CE, RCM
|
Application snapshots
|
Industry
|
Use-case
|
|
Utility substation
|
CB open/close status + trip/close command
|
|
Data-center MV switch-gear
|
Lock-out relay reset via SCADA DO
|
|
Process plant
|
Motor-drive ready DI, start-pulse DO
|
|
Rail traction
|
Section-isolator position feedback
|
