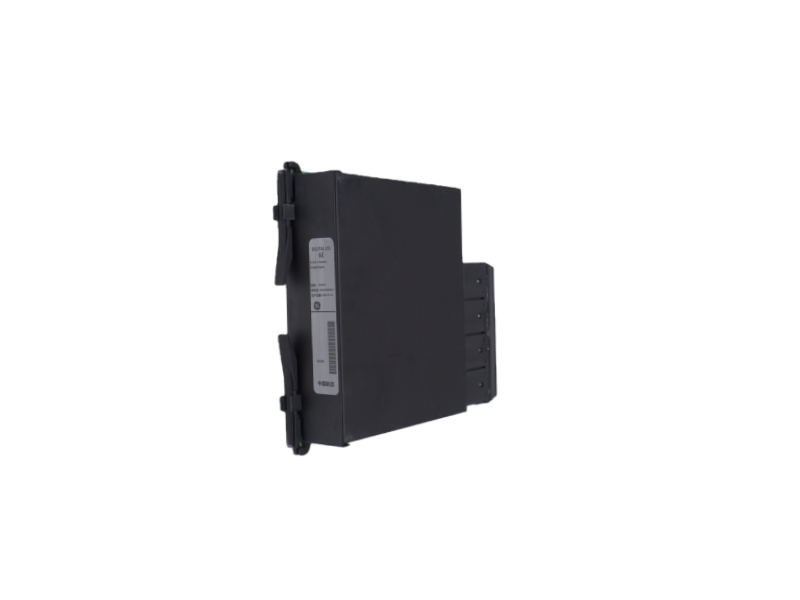

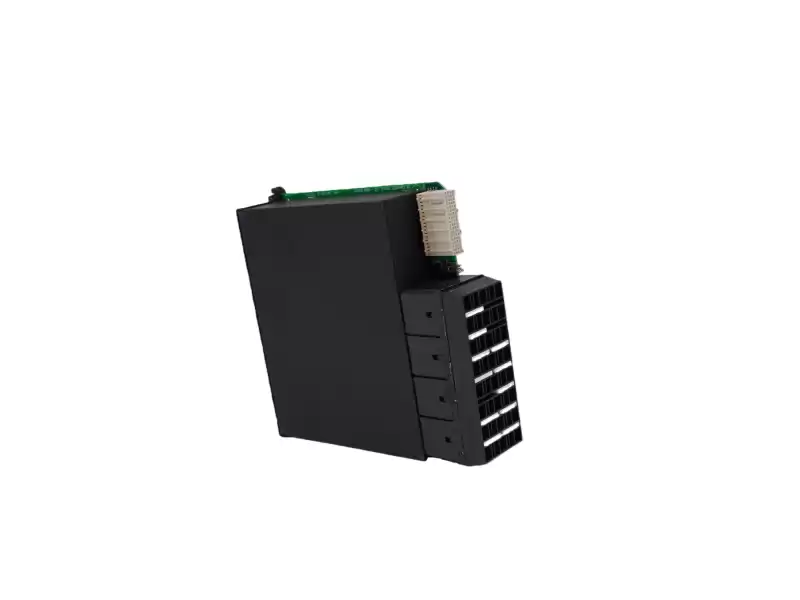

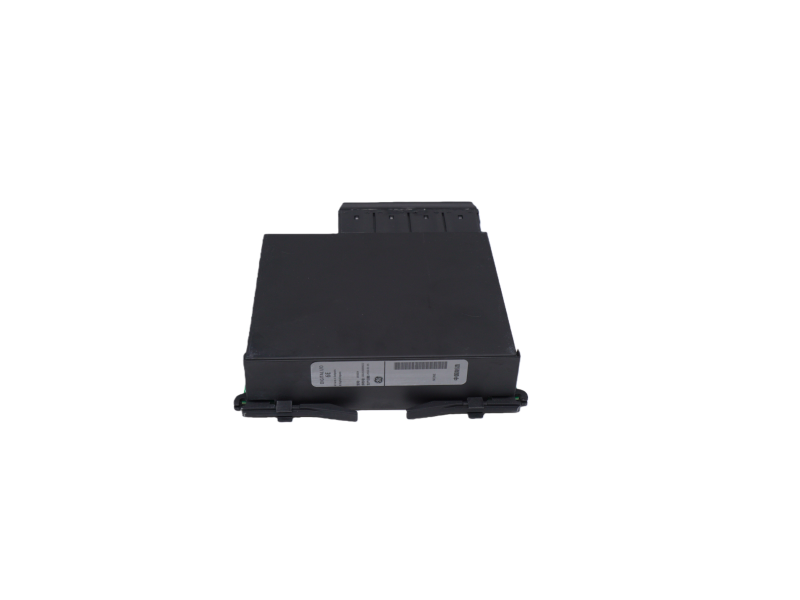

The GE UR6EH plug-in card gives any Universal Relay (UR) chassis eight true high-voltage digital inputs. Breaker auxiliary contacts, disconnect switches, spring-charge and gas-pressure flags can be wired straight to the UR6EH terminals—no interposing relays, no extra panel depth—while 2 kV optical isolation and <2 ms pick-up time keep protection logic and SOE records sub-cycle accurate.
Key Data
|
Item
|
Specification
|
Notes
|
|
Inputs
|
8 × HV digital
|
2 kV opto-isolated, channel-to-ground
|
|
Rated voltage
|
110 – 380 V AC/DC
|
45 – 65 Hz universal
|
|
Pick-up / drop-off
|
70 V ON / 30 V OFF
|
Wide hysteresis, noise immune
|
|
Input current
|
≈ 3 mA @ 220 V
|
Low heat, no derating
|
|
Response
|
< 2 ms
|
Suitable for 1 ms SOE tagging
|
|
Isolation
|
2 kV RMS, 1 min
|
Channel-to-channel & channel-to-backplane
|
|
Temperature
|
–40 … +85 °C
|
Conformal-coated, no fan
|
|
Compliance
|
CE, UL 508, IEC 61850-3
|
Substation-hardened EMC
|
Typical Wiring
Field dry-contact → UR6EH Euro-style terminal → on-board limiting → opto-coupler → UR bus. Self-resetting PTCs protect the circuit from surge or mis-wire; LED per channel gives local status at a glance.
Where It Fits
1. Substation automation: 220 V breaker position, lock-out relay and gas-low flags wired direct to UR6EH; CPU runs protection, metering and SOE in one box.
2. Generation plants: exciter ready, field-breaker and synchronizer selector voltages up to 380 V feed the same card, eliminating rows of 110 V interface relays.
3. Oil & gas topside: 380 V main-tie contactor auxiliaries drive emergency-shutdown logic through UR6EH with <2 ms update.
