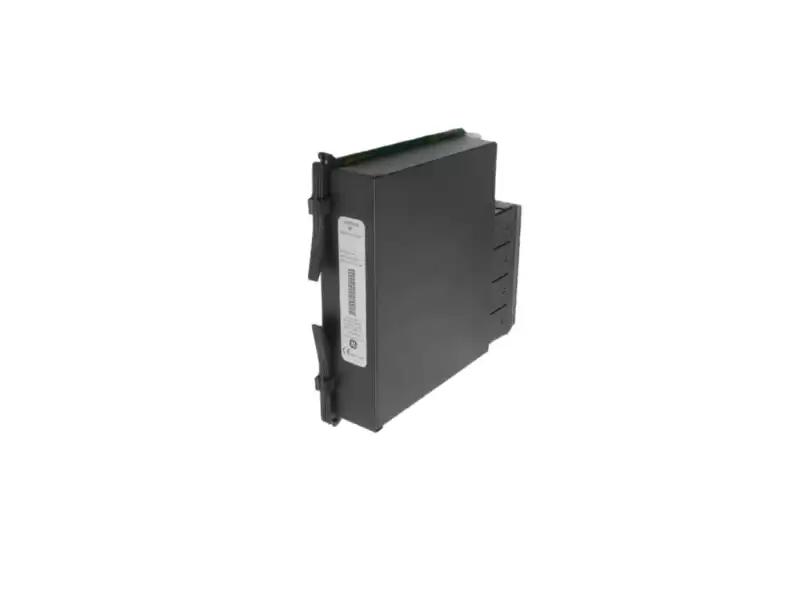

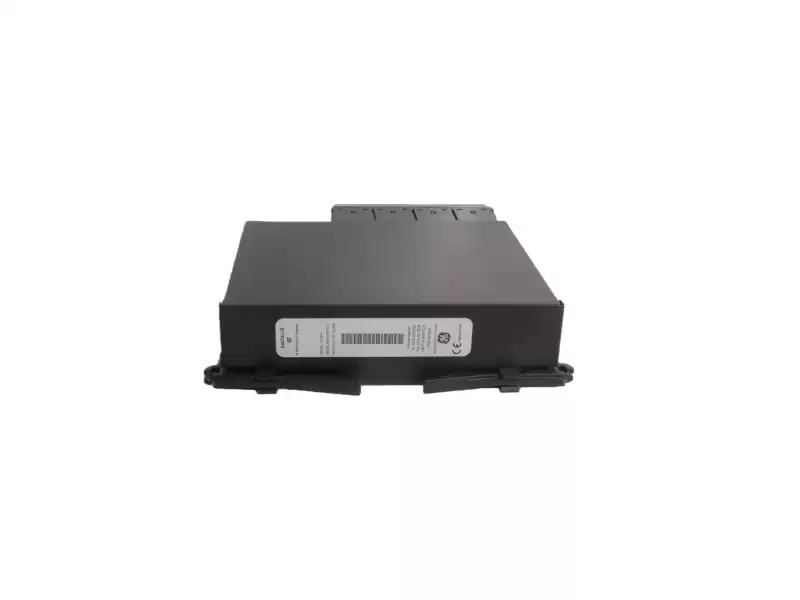

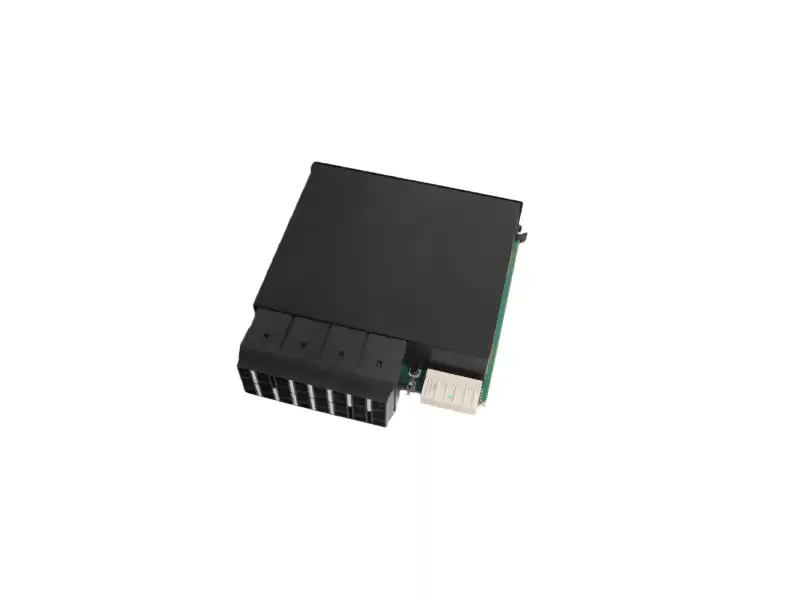

The UR6FH module features eight Fast Form-C (SPDT) relay outputs, suitable for signaling, control, and interlocking applications. Designed for high-speed operation, it can handle up to 10A at 125V AC or 5A at 250V AC, making it ideal for high-power devices in protection schemes.
Key benefits include:
ü Rapid response for tripping and interlocking
ü Compact, modular design for easy installation
ü Reliable performance in harsh industrial environments
Card at a glance
|
Item
|
Specification
|
|
Outputs
|
8 × Form-A (NO)
|
|
Contact rating
|
2 A @ 250 VAC / 30 VDC (resistive)
|
|
Isolation
|
2 kV RMS, 4 kV impulse (channel-to-ground)
|
|
Electrical life
|
100 k ops @ 2 A; 1 M @ 0.5 A
|
|
Indication
|
1 LED per channel (local status)
|
|
Supply
|
24 VDC from UR backplane, coil current ≈5 mA
|
|
Operating temp
|
–40 … +85 °C (conformal-coated, no derating)
|
|
Compliance
|
UL 508, IEC 61850-3 (substation-grade)
|
Applications
The UR6FH Relay Output Card is widely deployed in:
1. Feeder protection and control systems
2. Substation automation and monitoring
3. Industrial automation and process control
4. Switchgear and circuit breaker control
5. Alarm and status signaling systems
This versatility makes it ideal for any system requiring fast, reliable digital outputs.
