1. Product Snapshot

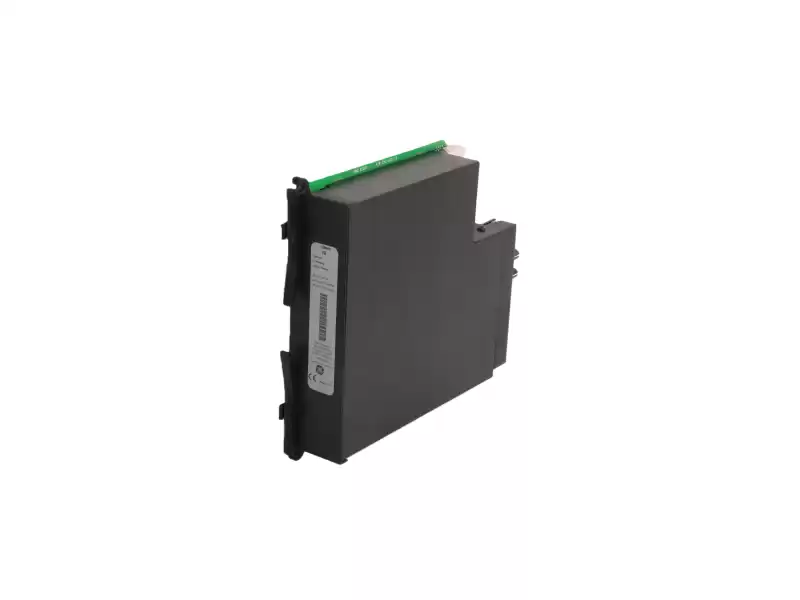

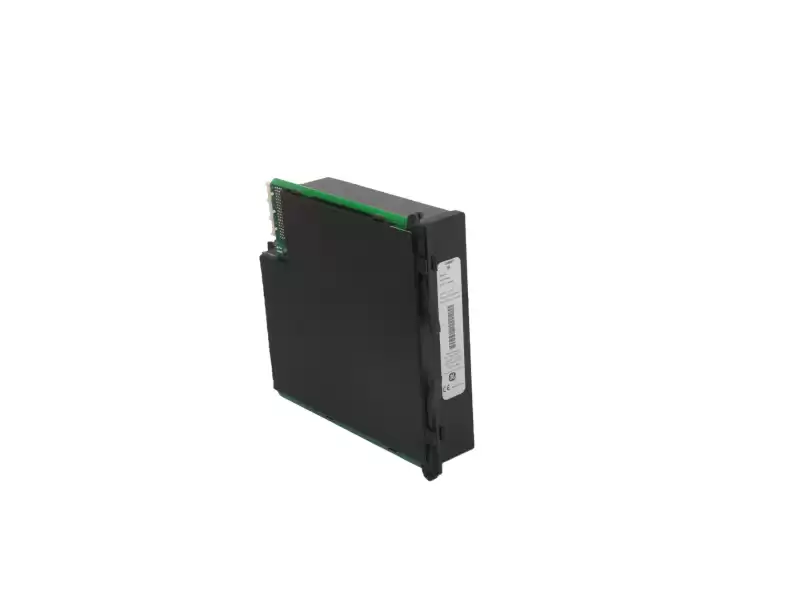

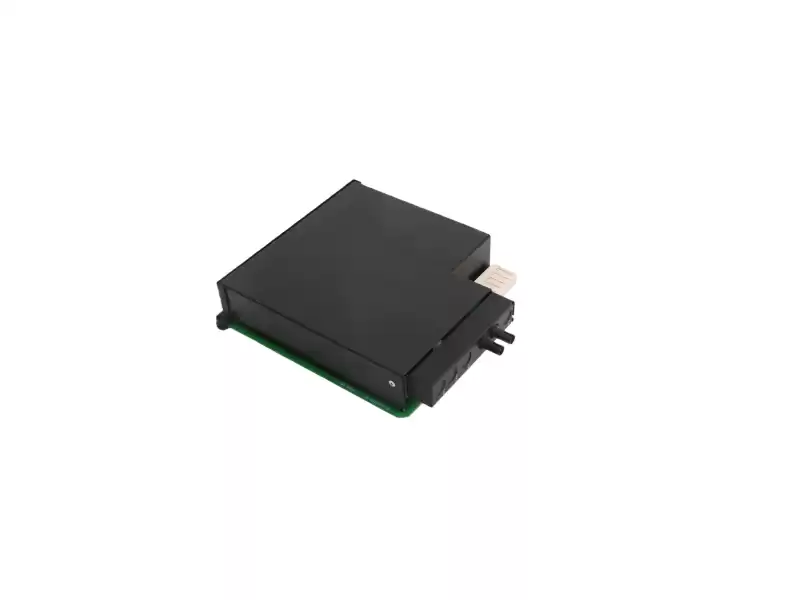

GE UR7BH is shipped in two interchangeable formats:
·"Relay-Only" module – 24 VDC coil, 10 A SPDT contacts, DIN-rail.
·"Smart face-plate" – adds 80188 CPU, 512 I/O points, Modbus TCP/IP, for local control & display inside Mark* VI racks.
Both versions share the same 28-pin back-plane connector and −20…+60 °C operating range, making UR7BH a drop-in spare for turbines, compressors, power-gen and general process skids originally engineered by GE.
2. Verified Technical Parameters
|
Item
|
Relay-Only Variant
|
Smart Face-Plate Variant
|
|
Coil / Logic power
|
24 VDC (18…32 V)
|
24 VDC (same range)
|
|
Contact rating
|
10 A @ 250 VAC, 8 A @ 30 VDC (res.)
|
internal dry contact same spec
|
|
CPU
|
—
|
80188, 10 MHz
|
|
Communication
|
—
|
Modbus TCP/IP, RS-232 service port
|
|
Isolation coil-contact
|
4 kV rms
|
4 kV rms
|
|
Mechanical life
|
≥10×10⁶ cycles
|
≥10×10⁶ cycles
|
|
Temperature
|
−20…+60 °C operating
|
same
|
|
Dimensions
|
83×57×32 mm relay
|
167×148×55 mm plate
|
|
Weight
|
≈0.2 kg
|
≈0.92 kg
|
|
Global certs
|
CE, cULus, RoHS
|
CE, cULus, RoHS
|
3. Typical Application Matrix
|
Industry Segment
|
UR7BH Function Used
|
Companion GE Modules
|
Benefit Seen by End-User
|
|
Power Generation (Mark VI)
|
Front-panel local display & override
|
VTUR, VCRC, I/O packs
|
30 % faster fault finding
|
|
Water Treatment Skids
|
DIN-rail relay interposing
|
90-30, RX3i, VersaMax
|
Isolates 120 VAC valves
|
|
Food Packaging OEM
|
24 VDC → 230 VAC motor start
|
QuickPanel+, PACSystems
|
Compact, 6 mm width saved
|
|
Marine Engine Retrofit
|
CPU variant for backup governor
|
EX2100, LM6000
|
Meets ABS shock/vib.
|
4.Discount Policy
Volume Discounts: Discounts are offered based on order quantity — the more you order, the bigger the discount.
5.Shipping & Delivery
ü Freight Calculation: Shipping costs are calculated based on the weight of the goods, courier selection, and destination.
ü Shipping Methods: Goods are shipped via DHL, FEDEX, TNT, UPS, EMS, etc.
ü Customer Preference: We can choose the appropriate shipping method according to customer requirements.
