1. UR7CV at a Glance

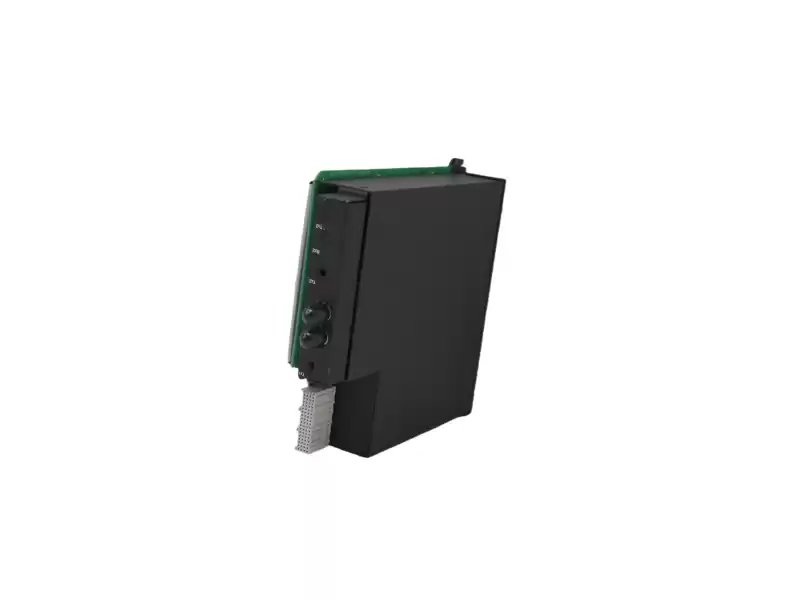

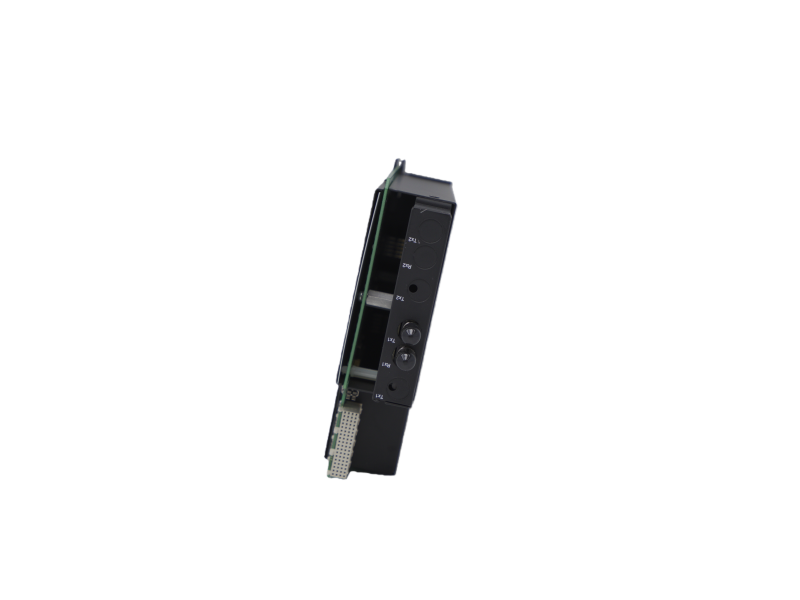

The GE Multilin UR7CV is a universal I/O & control card that slips into any UR-series relay chassis. It combines 8 × 24-240 V AC/DC digital inputs, 8 × Form-C relay outputs and full 4 kV isolation in one plug-in module—ideal for motor-bus transfer, breaker fail and arc-flash schemes.
Key data (25 °C, 50 Hz)
Supply burden: < 0.15 VA per input
ü Pick-up time: 0.2 ms typ.
ü Contact rating: 8 A @ 250 V AC (resistive)
ü Dielectric: 2 kV RMS input-to-ground, 4 kV contact-to-coil
2. Verified Stock – Ship Today
|
Part No.
|
Firmware
|
Hardware Rev.
|
|
UR7CV
|
8.1x
|
H4B
|
|
UR7CV
|
7.6x
|
H3A
|
3. Quick-Spec Reference Table
|
Parameter
|
UR7CV Value
|
UR Family Limit
|
|
Input range
|
24–240 V AC/DC, ±20 %
|
300 Vpk
|
|
Burden per input
|
0.15 VA max
|
—
|
|
Output contacts
|
8 × Form-C (SPDT)
|
10 A resistive
|
|
Operate / release time
|
< 0.2 ms / < 8 ms
|
—
|
|
Isolation
|
4 kV contact-to-coil
|
5 kV system
|
|
Temperature
|
–40 °C … +85 °C
|
–40 °C … +85 °C
|
4. Service Snapshot
ü Same-day quote within 2 h (GMT+8)
ü DHL/UPS/FedEx —your choice
ü 12-month functional warranty (return to Xiamen)
ü Replacement UR chassis, CPU and CT/VT modules available from common stock—build a complete spare relay in one box.
5.Need UR7CV or any UR module?
Sales Manager: May
PLC Autocontroller – Xiamen, China
E: ab@mooreplc.com
WhatsApp / Phone: +86-18106909650
WeChat ID: dcsfcs
