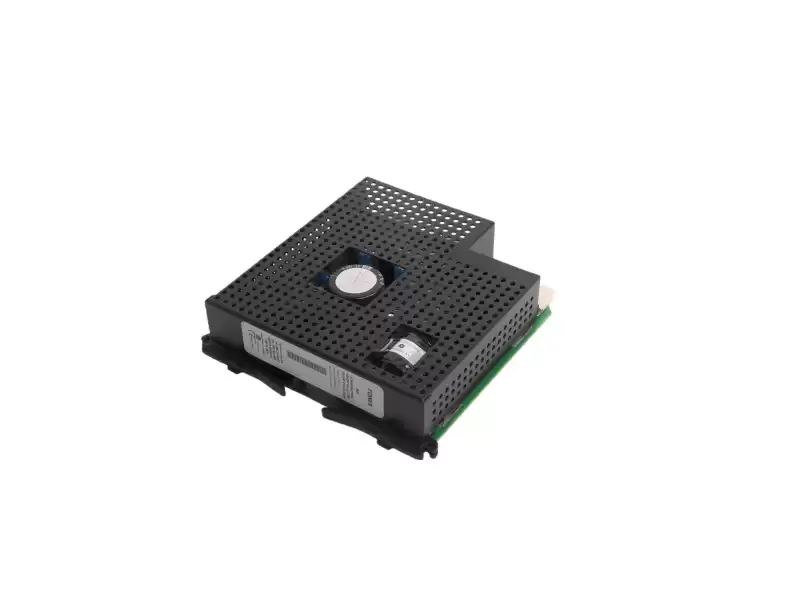

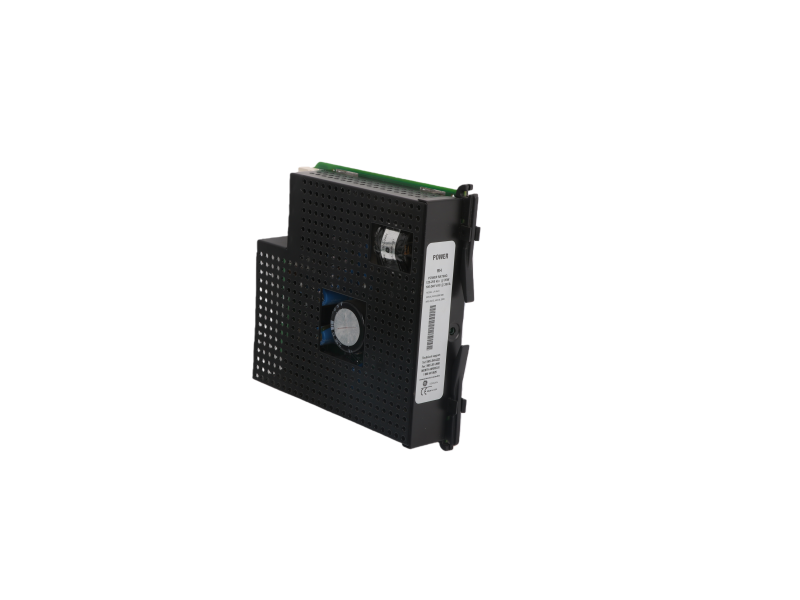

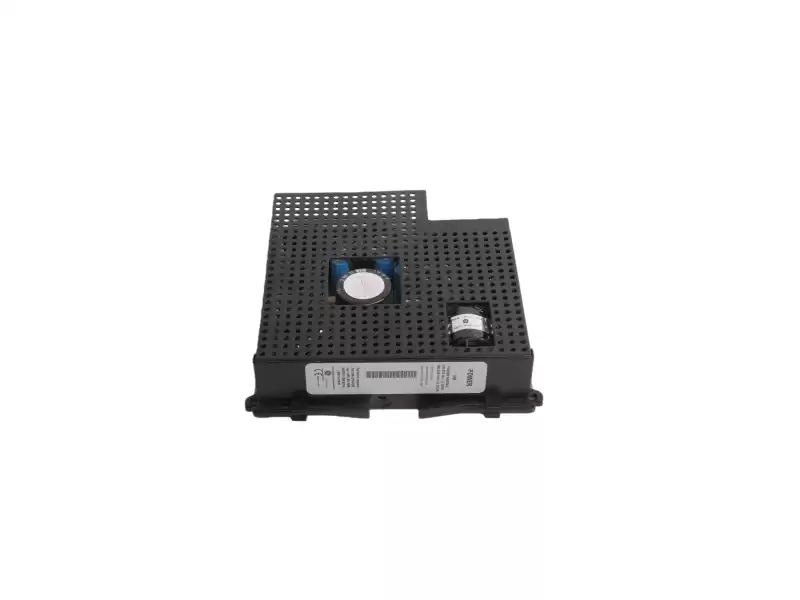

The GE model "URRHH" isn't a protective relay or I/O board, but rather a dedicated power supply module for the GE Multilin UR series. Engineering documentation often refers to it as UR-RH (with the H representing the revision code).
Its sole purpose is to provide a rock-solid 24V DC bus for the entire UR chassis, ensuring reliable operation of the CPU, DI, DO, CT/VT, and other boards.
Product Snapshot
|
Item
|
Value / Description
|
|
Model
|
GE Multilin UR-RHH (often written URRHH)
|
|
Type
|
Hot-swap power module, 2nd-gen RH family
|
|
Input Range
|
Auto-sensing, no jumpers:
• LO: 24–48 VDC
• HI: 125–250 VDC / 100–240 VAC
|
|
Rated Output
|
24 VDC ±0.5 %, 1.45 A (35 W)
|
|
Ripple
|
<50 mV pp, SIL-2 sampling compatible
|
|
Isolation
|
2 kVrms input-output, 1 kVrms channel-ground
|
|
Change-over
|
<0.5 ms when used in redundant pair
|
|
Self-test
|
Real-time V, T, fuse monitor; LED + relay alarm
|
|
Temperature
|
–40 °C … +70 °C (no derating)
|
|
Size
|
≈ 100 × 70 × 30 mm, plug-in
|
|
Marks
|
UL 508, IEC 61010-1, CE, RoHS
|
Selling Point
1. Mains “flicker” 0 ms interruption → dual-module redundancy, <0.5 ms change-over, protection never reboots
2. Salt mist / plateau / hot cabinets → –40 … +70 °C industrial grade, 2 kV surge passed
3. 02:00 a.m. spare shortage → PLC Autocontroller Xiamen warehouse keeps >50 pcs, 24 h global DHL
4. Afraid of counterfeits → original GE COO + cloud-based serial-number check included
Stock & Price
|
Status
|
Warranty
|
Ship-from
|
ETA
|
|
In Stock
|
12 months
|
Xiamen
|
Worldwide by DHL /Fedex /TNT / UPS
|
