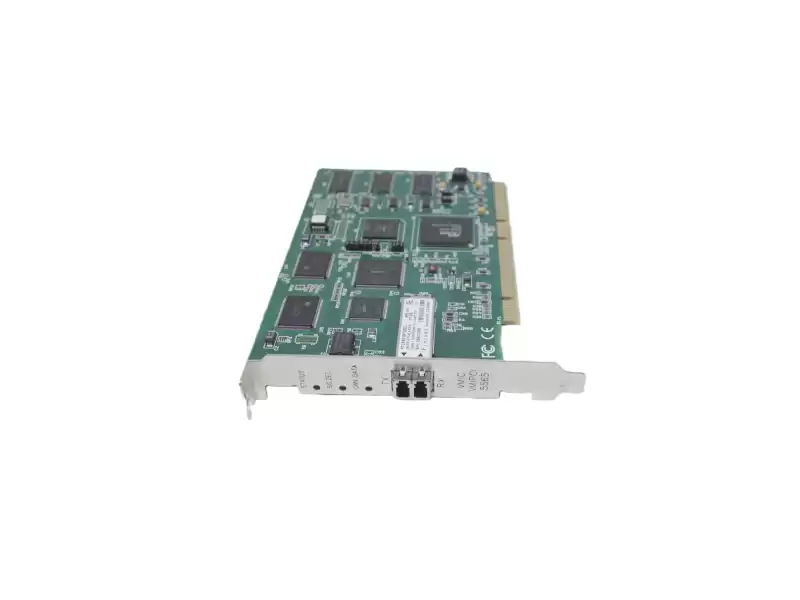

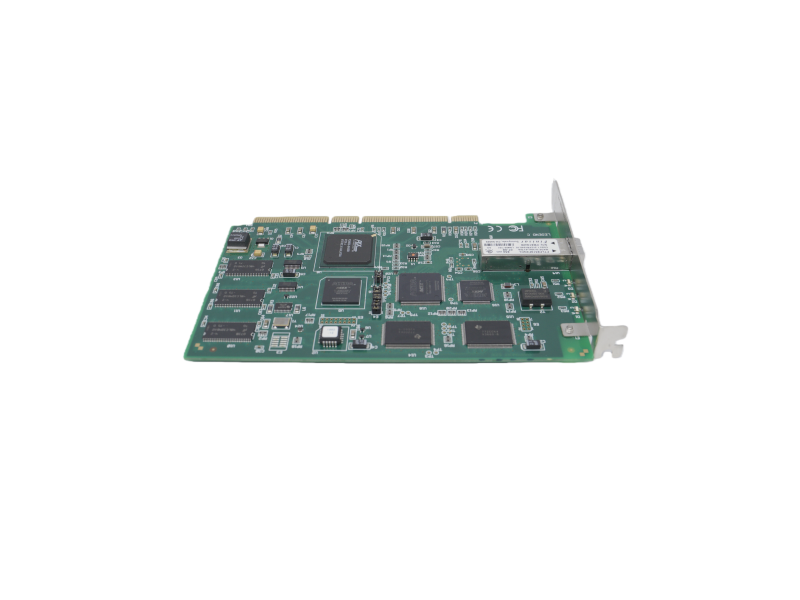

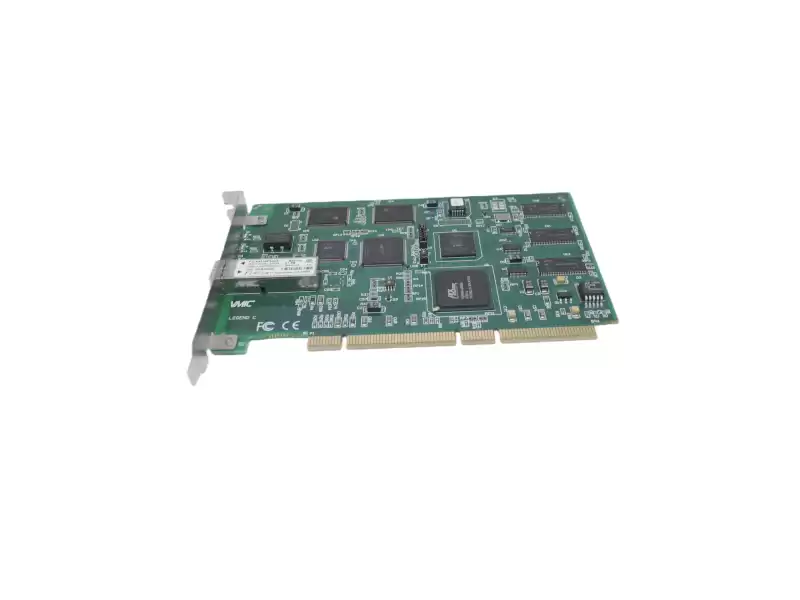

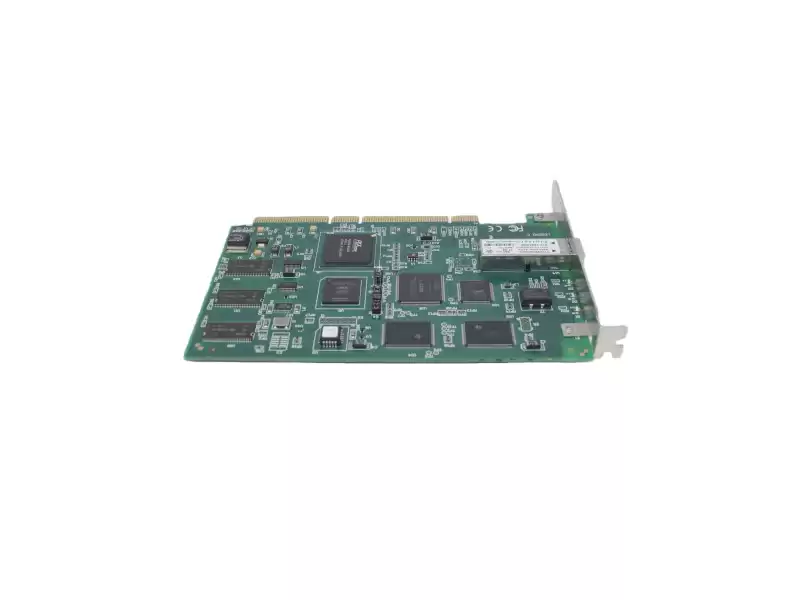

❓ What is the GE VMIPCI-5565-110000?
The GE VMIPCI-5565-110000 is a high-performance reflective memory interface card. It uses a PCI bus design to support real-time data sharing across multiple nodes, widely used in industrial automation, simulation testing, aerospace, and other fields.
Key Specifications
Q: What type of bus does it use?
A: It uses the PCI bus to connect to the host system.
Q: What is the data transfer rate?
A: The data transfer rate ranges from 43 MB/s (4-byte packets) to 174 MB/s (64-byte packets).
Q: What is the memory configuration?
A: It comes with 64 MB or 128 MB SDRAM for shared data storage.
Q: What is the FIFO buffer capacity?
A: The FIFO buffer can hold 110,000 entries.
Q: What interface mode does it support?
A: It supports multimode fiber interface.
Q: What is the maximum connection distance?
A: Multimode fiber up to 300 meters; single-mode fiber up to 10 kilometers.
Q: What is the operating temperature range?
A: -20°C to +60°C.
Q: What is the power consumption?
A: Power consumption is ≤ 15W.
Q: What are the module dimensions?
A: Dimensions are approximately 6 cm x 20 cm x 17.2 cm.
Q: What is the module weight?
A: Weight is approximately 0.86 kg.
Typical Applications
Q: What is its role in industrial automation?
A: Enables real-time data synchronization and sharing between multiple devices, improving system responsiveness and reliability.
Q: How is it used in simulation and testing?
A: Used for real-time data exchange and status monitoring in multi-node systems for aerospace, military, and other fields.
Q: What does it do in process control?
A: Provides real-time data processing and control for sensors and actuators, widely used in power and chemical industries.
