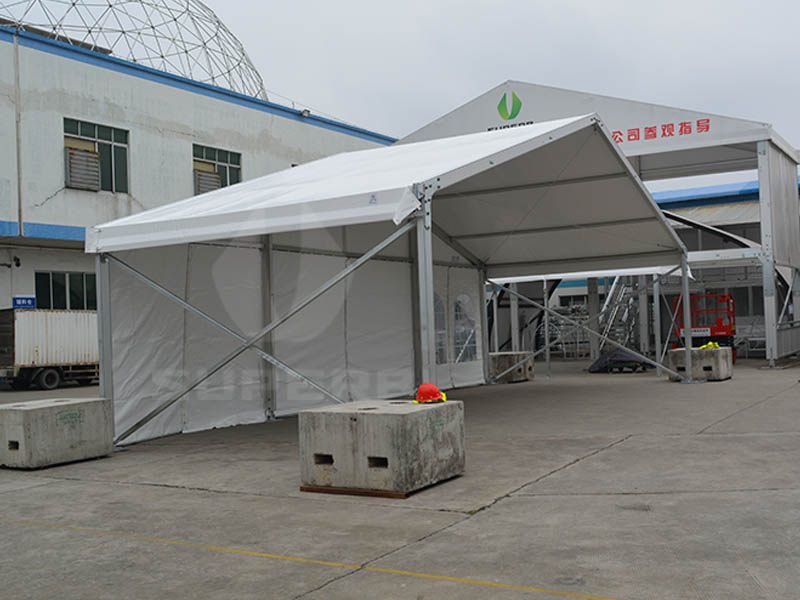

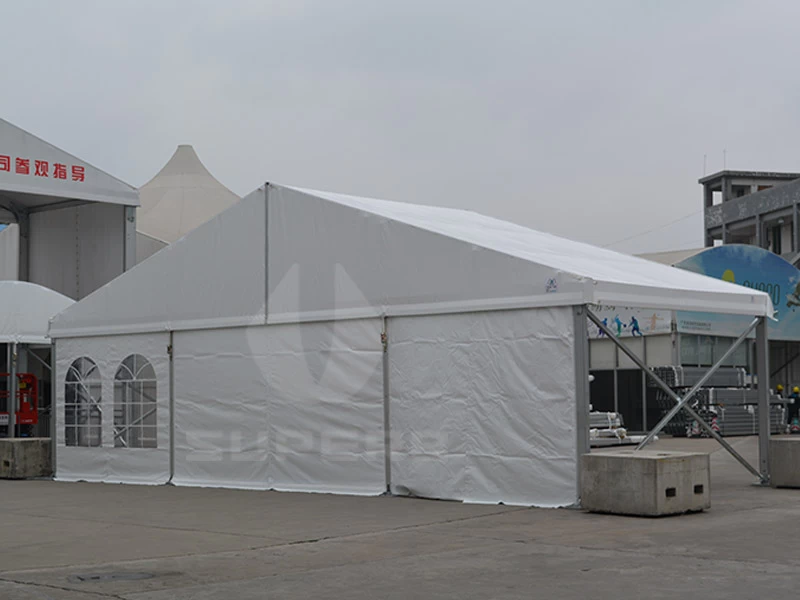

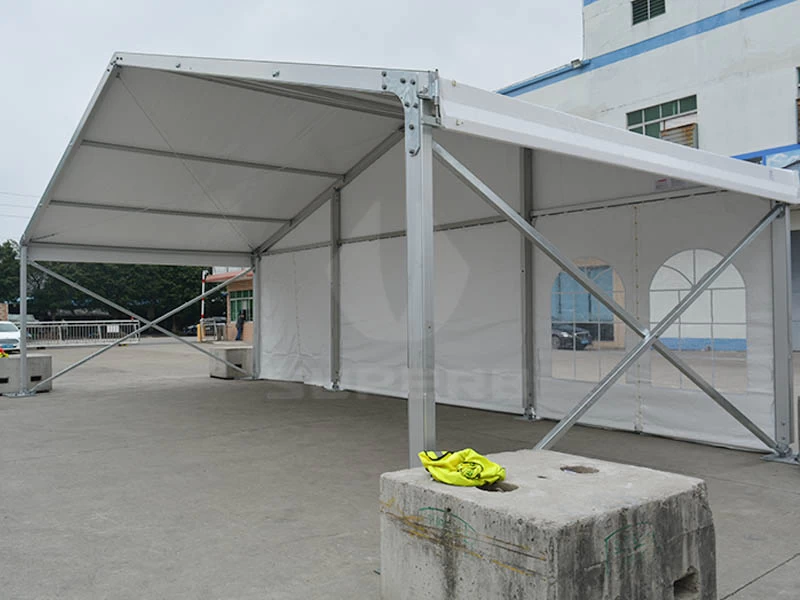

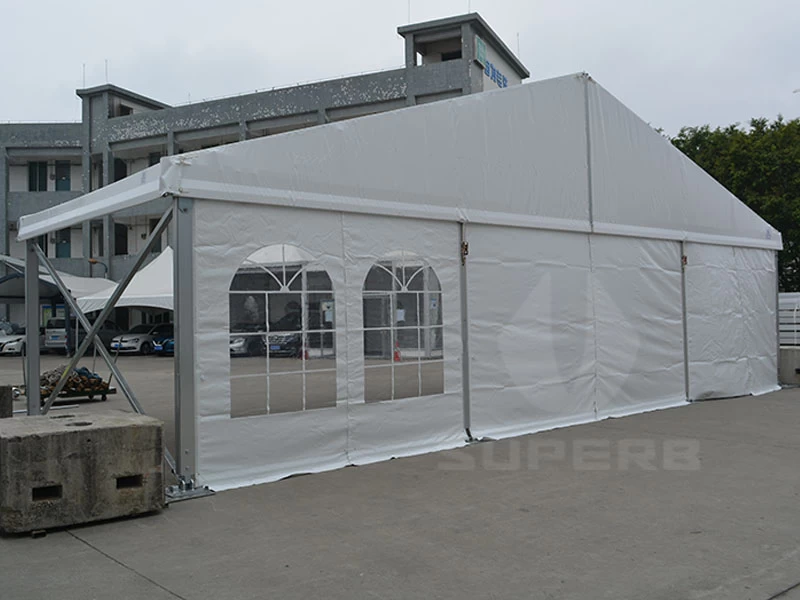

Germany Standard Ceremony Festival Tent
Festival Tent Advantage:
1. Popular shaped tent for all events.
2. Weather resistant with keder tracked tops and sidewalls.
3. Easy to integrate heating and A/C.
4. Roof and gable vent is available.
5. A variety of accessories available for customization.
Available sizes:
Clear span available from 3m to 60m.
Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
Cover:
Kedered roof fabric and sidewalls provide weather-proof tight coverings.
Bar tensioning roof & sidewalls system.
Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
Frame:
No maintenance required.
Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
All steel connectors including small parts have galvanized finishing above 60um.
Modular character for diverse combination and expansion.
The Specification of festival tent :
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
|
BS10/4-5
|
10
|
4
|
5.5
|
5
|
18°
|
6
|
100
|
|
BS15/4-5
|
15
|
4
|
6.4
|
5
|
18°
|
8.5
|
100
|
|
BS20/4-5
|
20
|
4
|
7.1
|
5
|
18°
|
10.7
|
100
|
|
BS25/4-5
|
25
|
4
|
7.9
|
5
|
18°
|
10.7
|
100
|
|
Main frame Profile
|
204x120x4mm（4-channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
The accessories of Festival Tent :
