Guangli Car Lift:

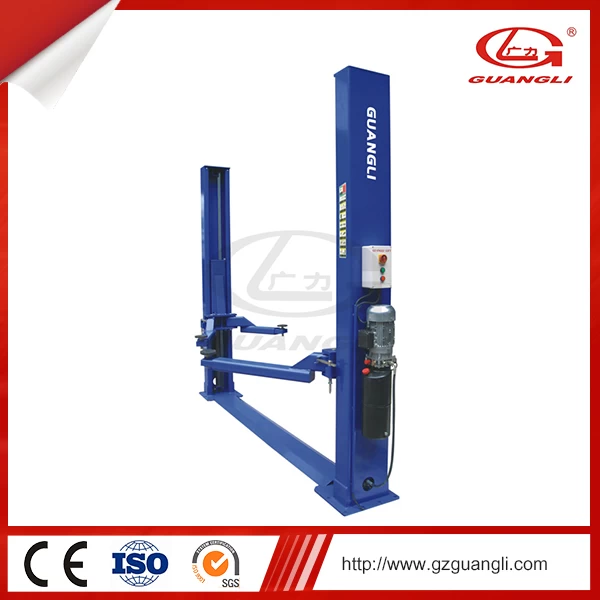

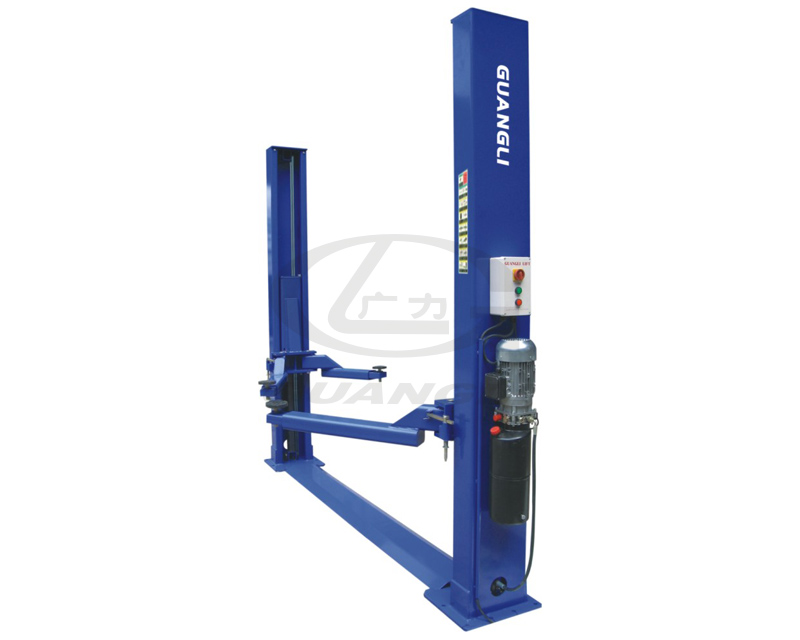

GL-3.2-2E Two Post Hydraulic Auto Lift features:
Hydraulic power driving to elevate;
The posts formed & molded as a whole at a time;
Applying the asymmetrical corbels to support car;
380V Chinese pump. Option: imported pump or 220V electrical motor;
more reliable & steady to ascending or descending Standard configuration;
With double insurance device of self-holding, rising by chains and balancing through steel ropes.

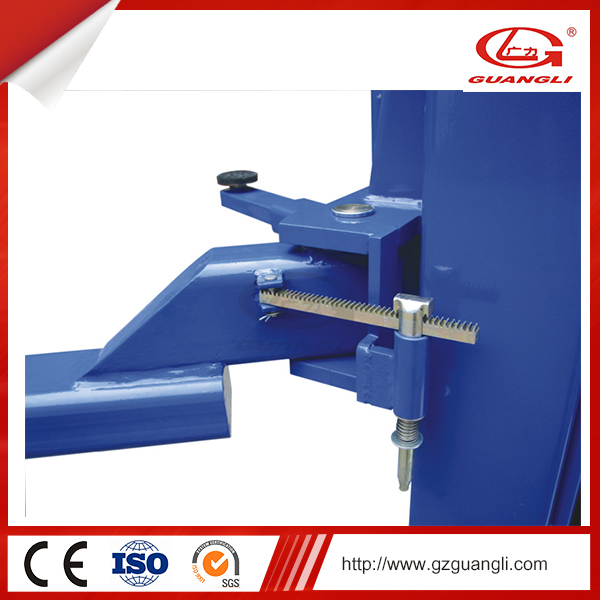

The arm is credible locking structure.

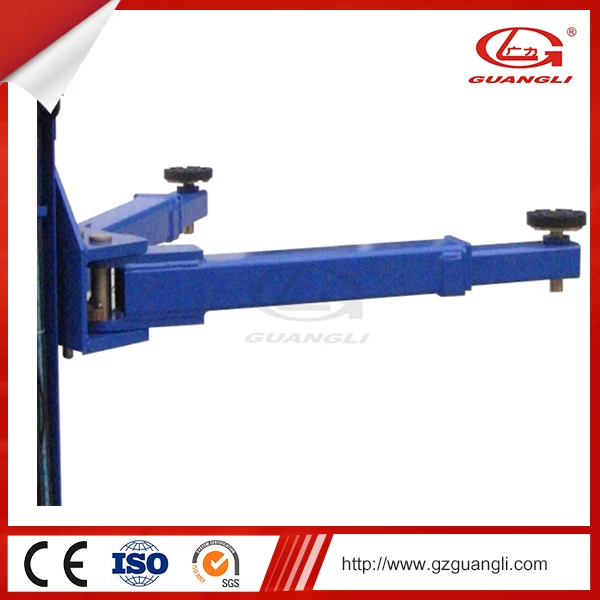

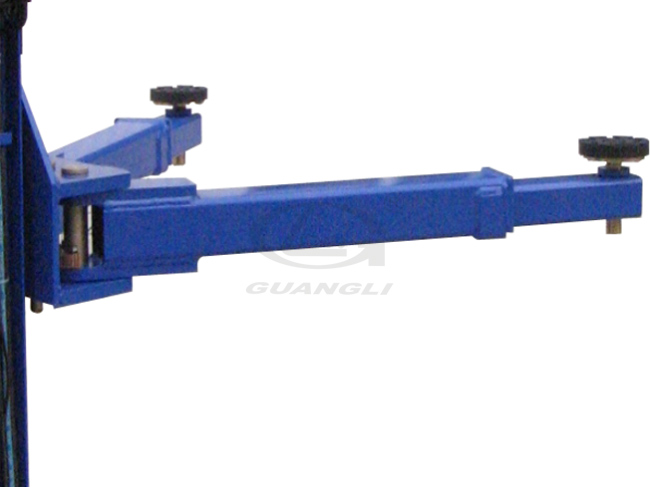

Adopt un-symmetry arm.
Technical Specifications
Max.lifting weight(Kg) 3200
Max.lifting height(mm) 1900
Voltage(V) 380
Frequency(Hz) 50
Motor power(Kw) 2.2
Remark Chinese pump

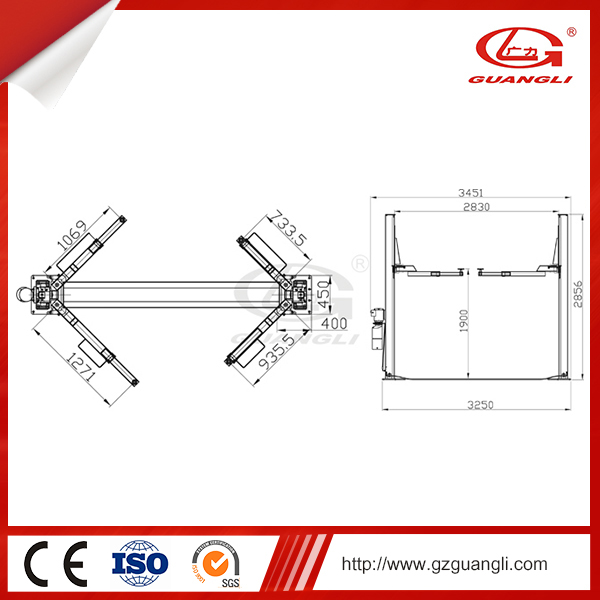

Enconomy Car Lift Outline Drawing (unit:mm)
