GuangLi Car Lifts:

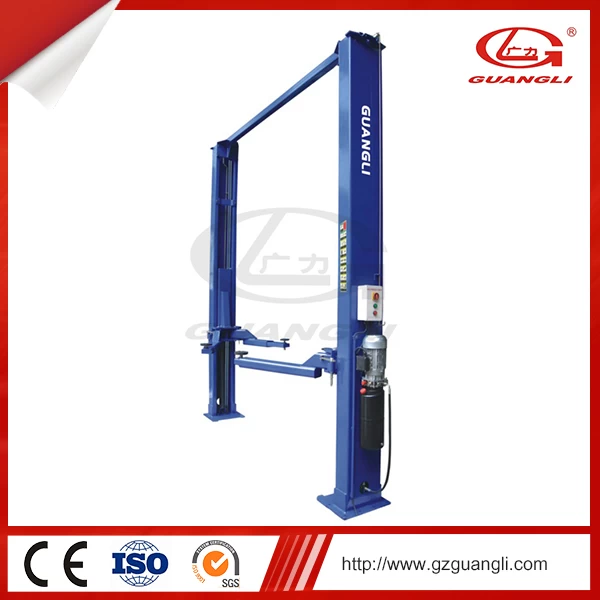

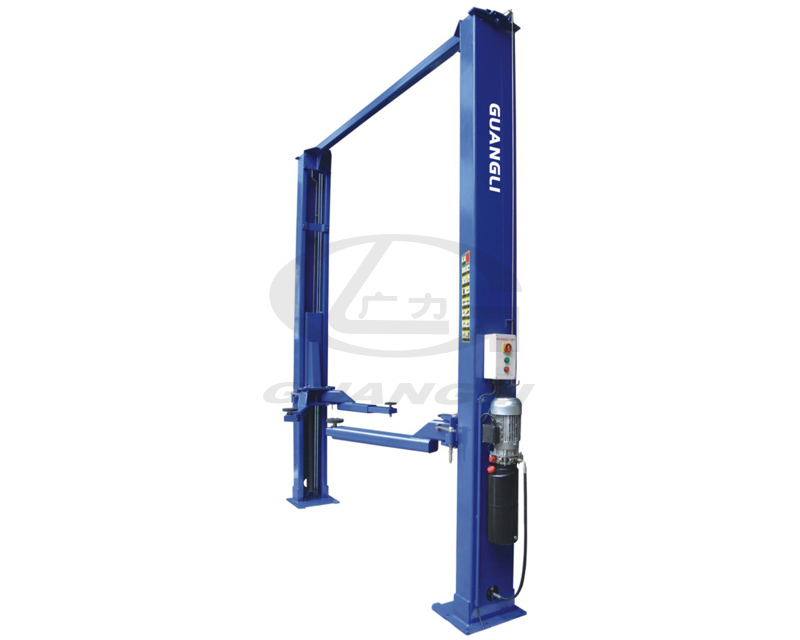

GL-3.5-2E1 Two Post Gantry Auto Lift features:
Hydraulic power driving to elevate;
The safety protection released by one handle;

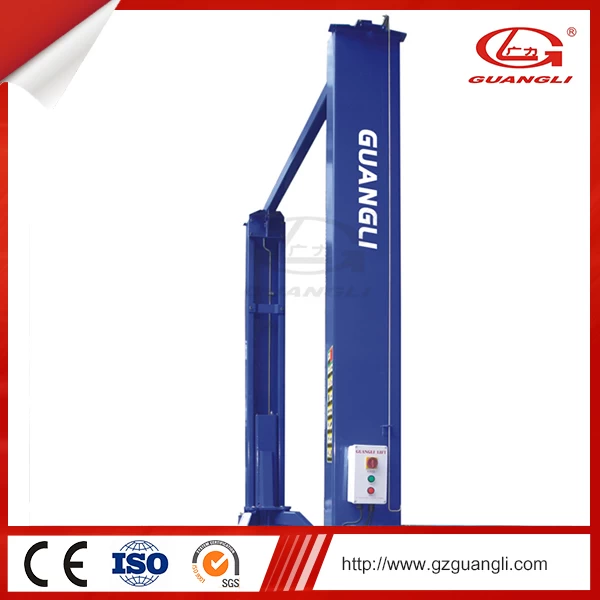

The posts formed & molded as a whole at a time;
Adopting mechanical height-limiting protection;
Standard configuration: 380V Chinese pump. Option: imported pump or 220V electrical motor;
With double insurance device of self-holding, rising by chains and balancing through steel ropes.
Safety unit handle by one switch.

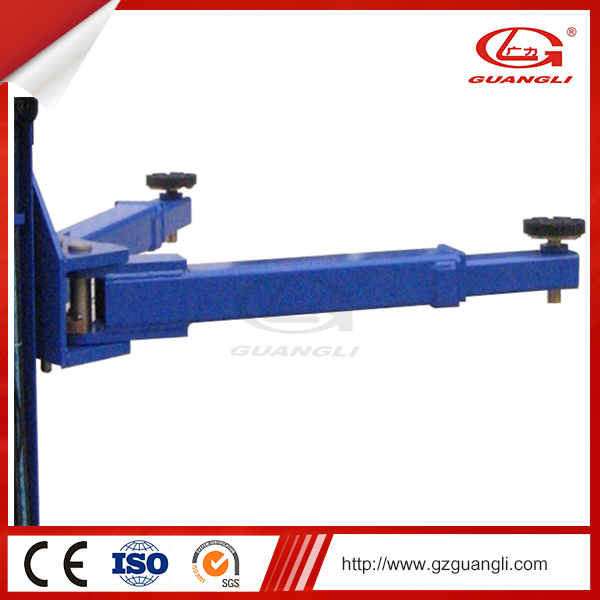

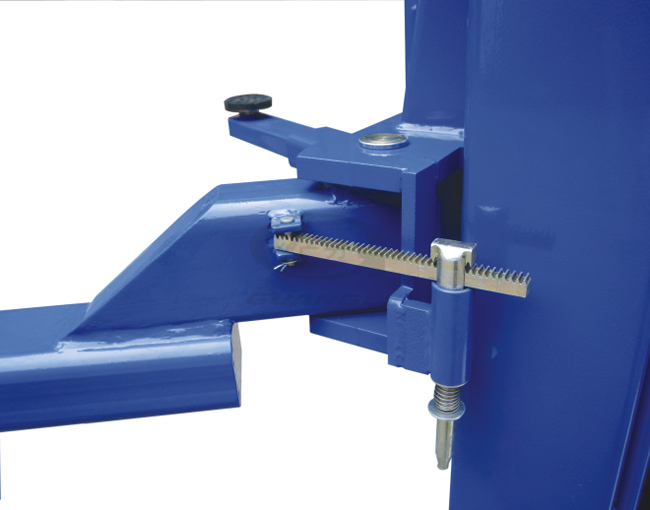

The arm is credible locking structure.
Adopt un-symmetry arm
Technical Specifications
Max.lifting weight(Kg) 3500
Max.lifting height(mm) 1900
Voltage(V) 380
Frequency(Hz) 50
Motor power(Kw) 2.2
Remark Chinese pump

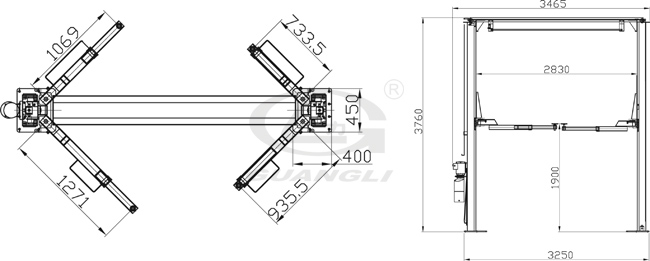

Outline Drawing (unit:mm)
