GuangLi Car Lift:

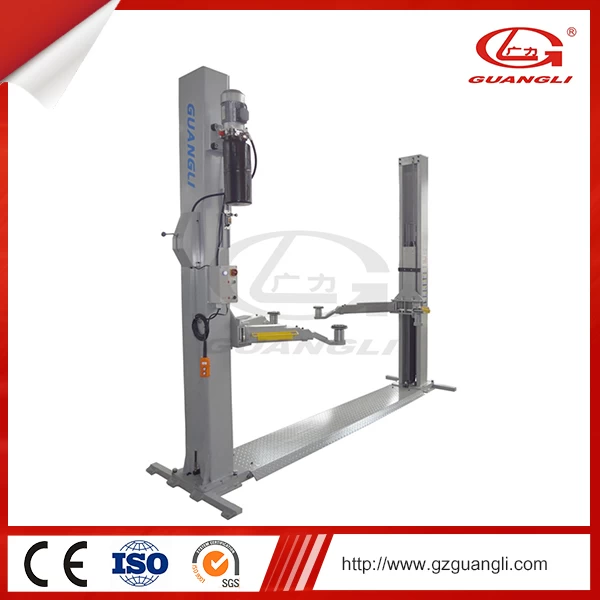

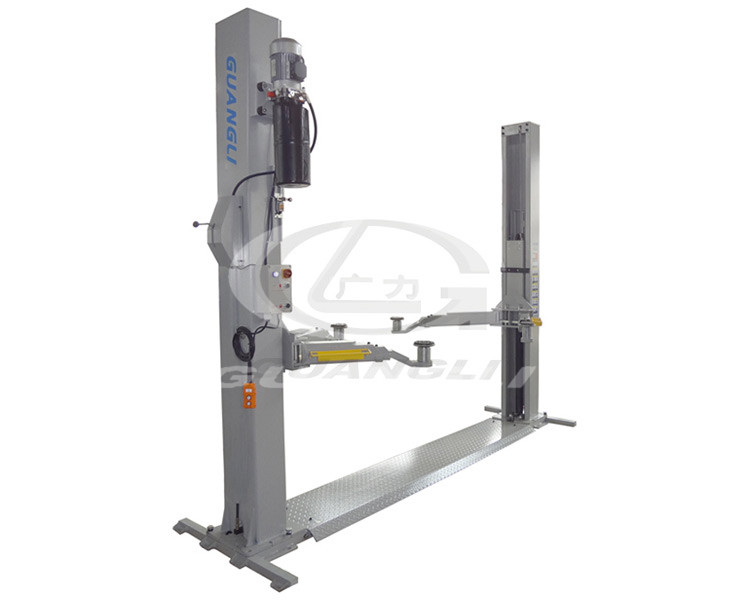

GL-4.0-2H Two Post Gantry Auto Lift features:

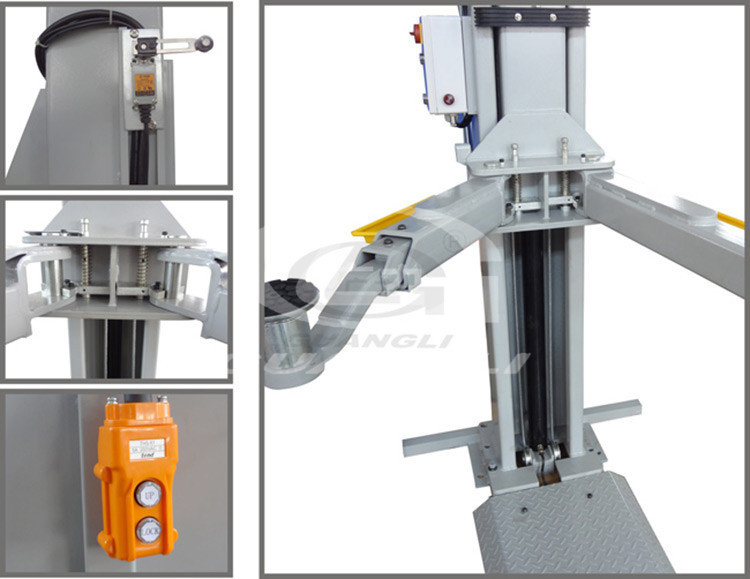

The whole post formed once without any welding;
Sliding carriage driven directly by cylinder without chain;
Electrically single release,Stroke switch used for safety;
Double safety: automatically lock/unlock and cable balance;
380v imported pump as standard,220v or pump made in China as option.
Adopt un-symmetry arm.
Technical Specifications
Max.lifting weight(Kg) 4000
Max.lifting height(mm) 1900
Voltage(V) 380
Frequency(Hz) 50
Motor power(Kw) 2.2
Remark Chinese pump

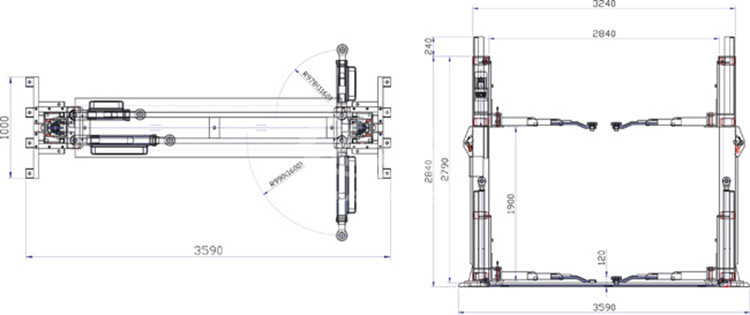

Outline Drawing (unit:mm)
