GL2-CE Factory Supply durable Spray Paint Booth
Description:
Main room & basement:
-

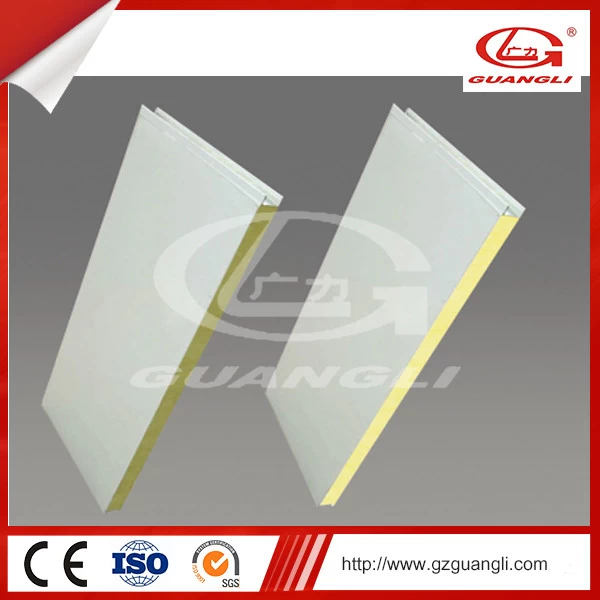

Wall panel :sandwich style,δ=50mm,rock wool.(Polystyrene is optional)
-
Basement:steel structure,3 rows of vein board and 2 rows of grids,full grids as optional.
-
Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
-
Ramp: 2 pcs of vein board.
Fans & ducts:
-

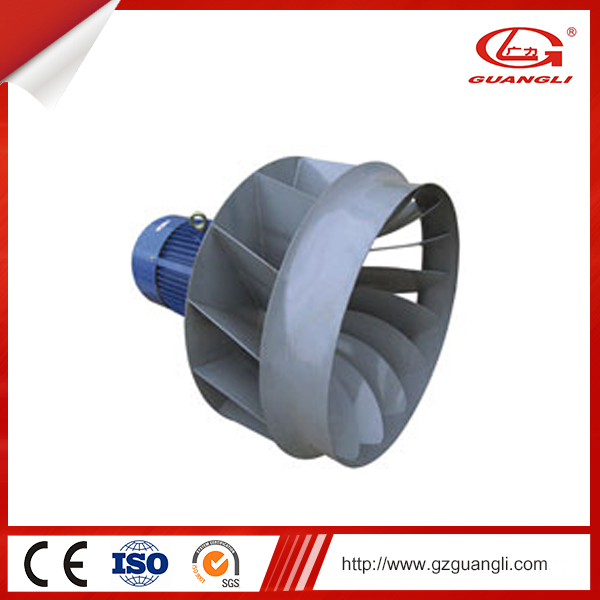

One 7.5 kw intake fan.
-
4 meters straight exhaust ducts,one 90° bend,and one 60°bend, 4 meters straight chimney and 2 small bends.
-
Spraying/baking transition damper,automatically air controlled.
Heat & filter:
-
Heat ex-changer:stainless steel. Riello G20 Burner.
-
Roof filter:4 pieces of filter,mounted above support frame,which is made of steel and powder coated.
-
2 pieces of floor filter and 1 piece of outlet filter.
Light & control system:
-
Upper light: 10 sets,4*18w per set.
-
Control box:components made in china,overload,overheat,phase-lacking protection,straight driven motor.
-
Automatically stop when preset time is up.
-
Constant temperature spraying.
Specifications:
|
Model
|
GL2-CE
|
|
External size (m)(LxWxH)
|
7.0x5.3x3.5
|
|
Internal size (m)(LxWxH)
|
6.9x3.9x2.7
|
|
Entrance door width(m)
|
3.0
|
|
Entrance door height(m)
|
2.66
|
|
Fan capacity( m3/h )
|
24000
|
|
Air velocity (m/s)
|
0.25-0.35
|
|
Drying temperature(°C)
|
60-80
|
|
Oil consumption (L/unit)
|
6-8
|
|
Power (kw)
|
9.5
|
|
Suitable automobile Type
|
Saloon Car
|

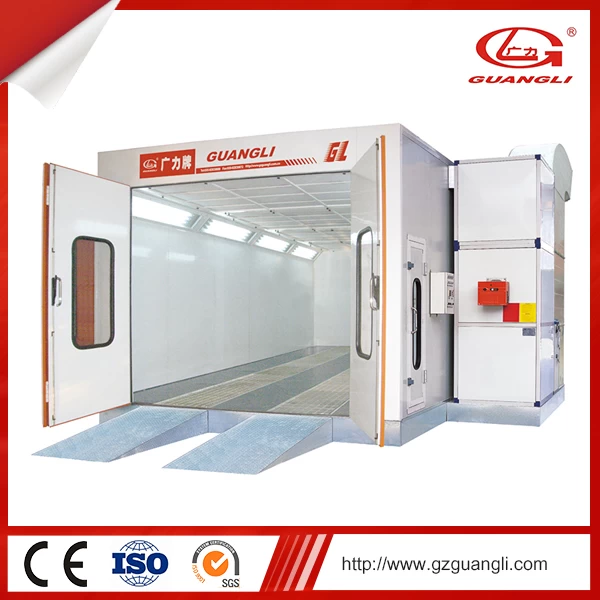

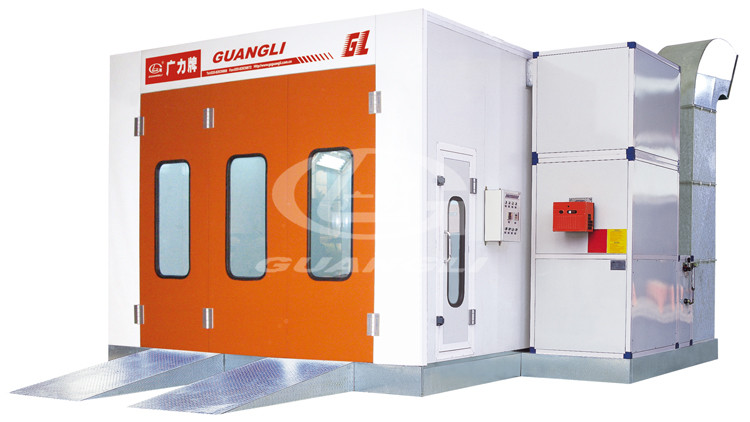

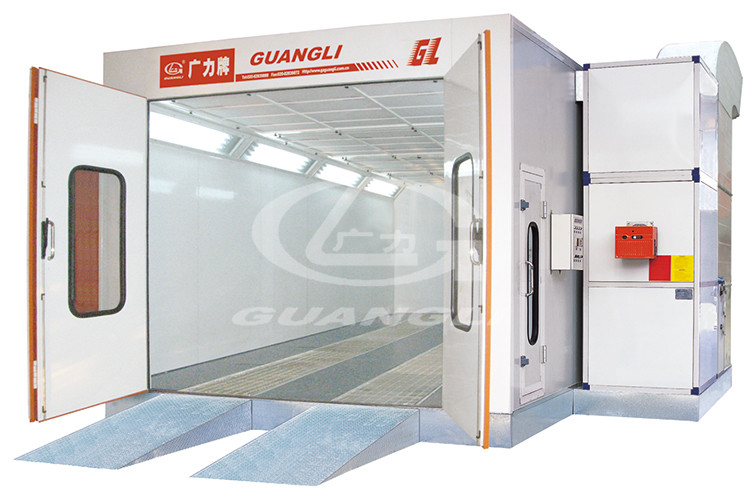

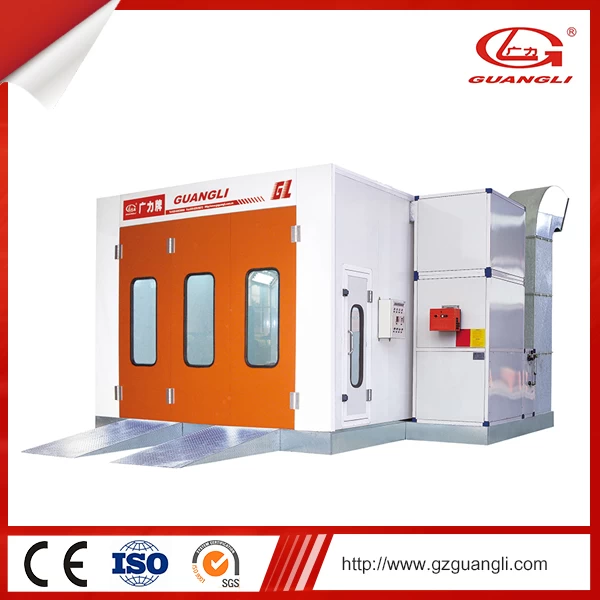

GL2-CE Spray Booth Show
