GL3-CE Professional Hot Sell Durable Auto Spray Paint Booth
Product Description:
Main room & basement:
-
Wall panel: sandwich style, δ=50mm, rock wool. (Polystyrene is optional)
-
Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
-
Door: 3 pieces of front door without aluminum side cover. 1 piece of emergency door with pressure lock.
-
Ramp: 2 pieces of vein board.
Fan & ducts:
-
Fan:One 7.5 kw intake fan and one 5.5 kw exhaust fan.
-
4 meters straight exhaust ducts, one 90° bend, and one 60° bend. 5 straight chimney and 2 small bends.
-
Spraying/baking transition damper, automatically air controlled.
Heating & filter system:
-
Heat ex-changer: stainless steel. Riello G20 burner.
-
Roof filter: 4 pieces of filter, mounted above support frame, which is made of steel and powder coated.
-
2 pieces of floor filter and 1 piece of outlet filter.
Light & control box
-

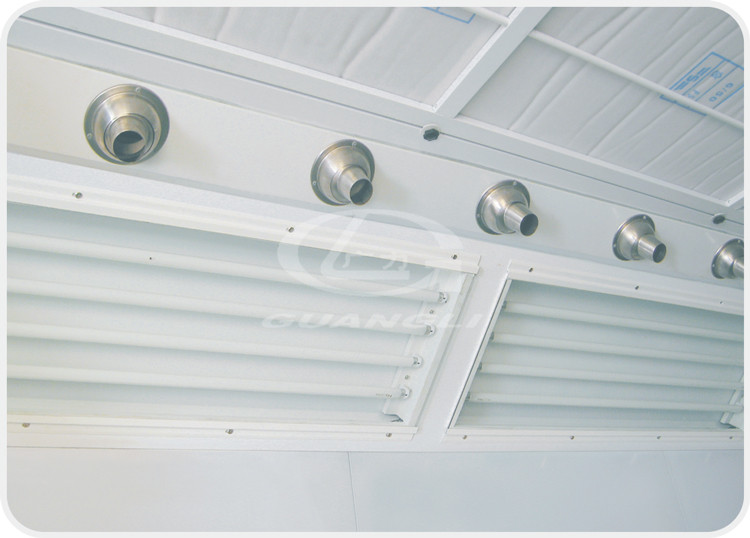

Upper light: 10 sets, 4*40w per set. side lights: 8 sets,2*40w.
-
Control box: components is import, overload, overheat, phase-lacking protection, straight driven motor
-
Automatically stop when preset time is up.Constant temperature spraying.
-
Environmental filter: the equipment can be adopted M style activated carbon or drawer style activated carbon as optional.
|
Technical Specifications
|
GL3-CE
|
|
External size(m)(LxWxH)
|
7.0×5.3×3.5
|
|
Internal size(m)(LxWxH)
|
6.9×3.9×2.7
|
|
Door width(m)
|
3.0
|
|
Door height(m)
|
2.66
|
|
Air flow (m3/h)
|
24000
|
|
Inside no-load air speed(m/s)
|
0.3-0.5
|
|
Power (kw)
|
16
|
|
Exhaust type
|
Full-undershot,Bilateral,Semi-down,Unilaternal
|
|
Vehicle suited
|
Saloon car
|
|
Heating System
|
RIELLO Brand Diesel Burner/Gas Burner
|
Baking Temperature(ºC)
|
20-80
|
|
Water based device
|
As optional
|
Environmental protection Device
|
As optional
|

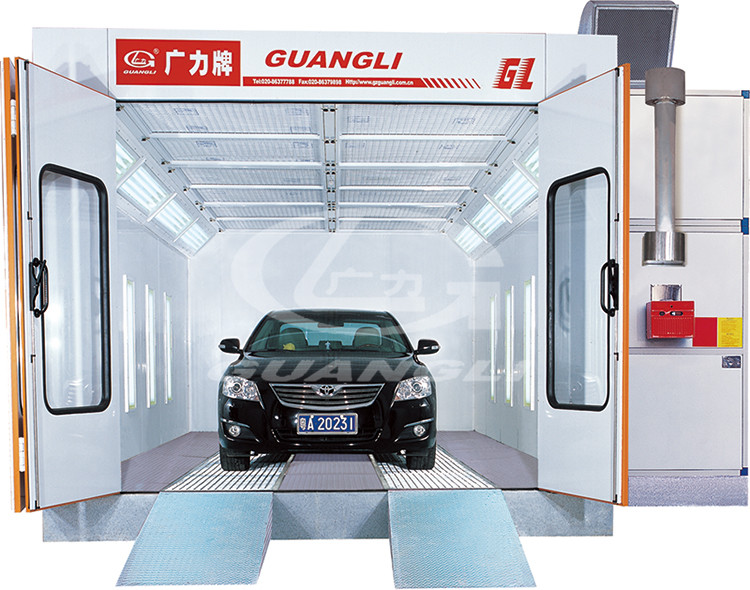

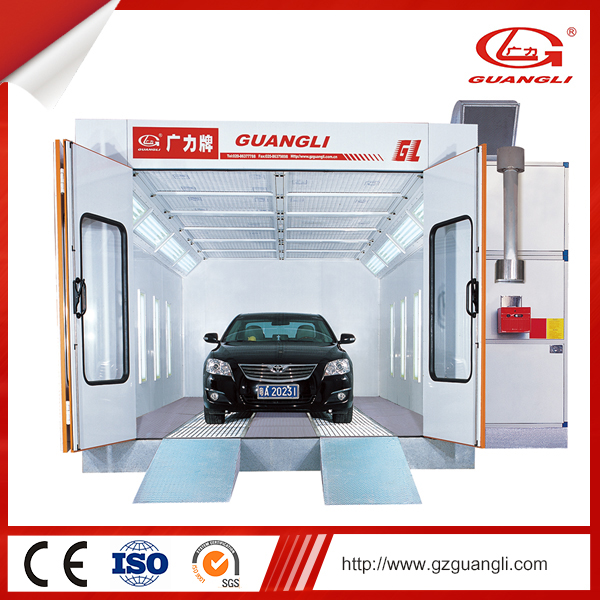

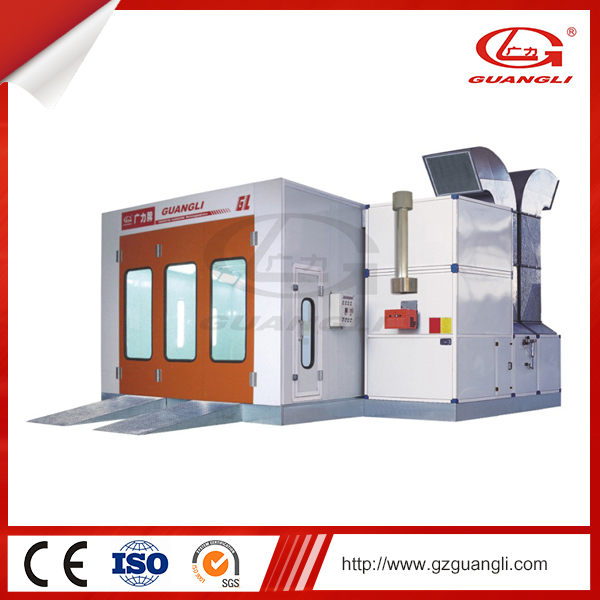

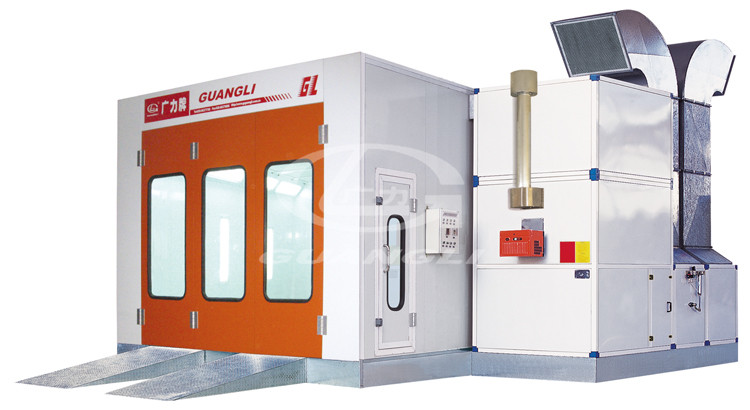

GL3-CE Spray Booth Show
