GL5-CE Auto Garage Equipment Spray Paint Booth

Garage Equiment/ Garage Tools Spray Paint Booth with CE



GL5-CE Auto Garage Equipment / Garage Tools Spray Paint Booth with CE


Guangli Spray Booth Description:

Main Body & Basement:

  • Wall panel: sandwich style, δ=50mm, rock wool. (Polystyrene is optional)
  • Basement: steel structure, full grids,ramp: 2 pcs of grids.
  • Door: 3 pcs of front door without aluminum side cover. 1pc of emergency door with pressure lock.
  • Lengthened room as optional: outside size: 7.6*5.6*3.5(m) inside size:7.5*3.9*2.7(m)


Fans & Ducts:

  • One 11kw intake fan and one 11kw exhaust fan.
  • 4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
  • 1 manual VCD exhaust damper, electrical VCD as optional. one pressure meter.
  • Spraying/baking transition damper, automatically air controlled.


Heating & Filters:

  • Heat exchanger: stainless steel. Riello G20 burner.
  • Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
  • 5 pcs of floor filter and 2 pcs of air mouth filter.


Light & Control Box:

  • Upper light: 10 sets, 4*18w per set. side lights: 8sets, 4*18w. LED light
  • Control box: imported components, overload, overheat, phase-lacking, phase-locking protection,
  • engine Y/△ start.
  • Automatically stop when preset time is up.
  • Constant temperature spraying.
  • Environmental filter :either M style or drawer style active carbon equipment can be adopted.

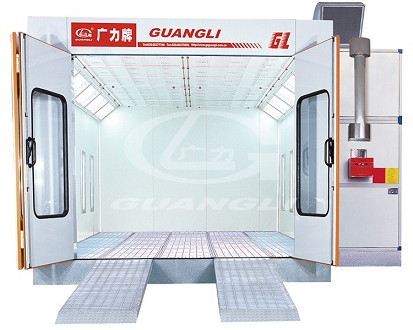

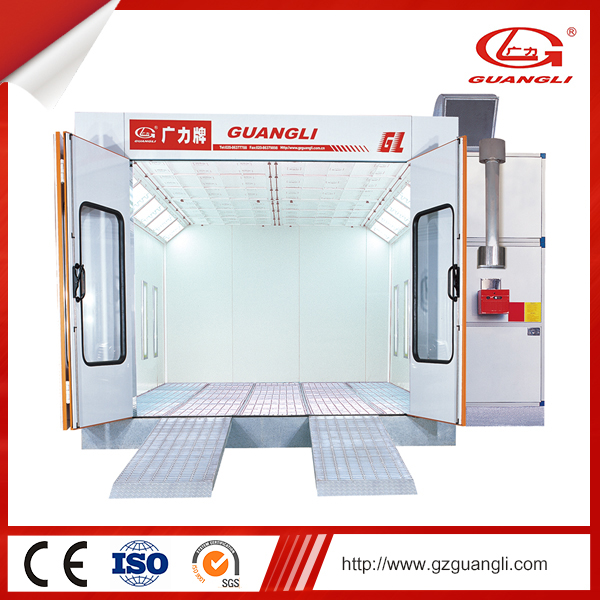

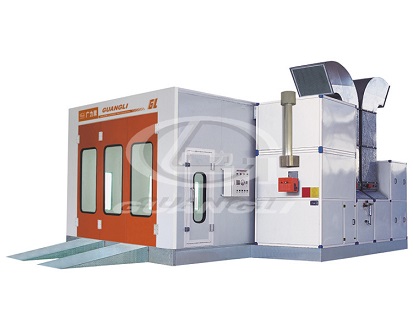

Guangli Spray Booth Show:

Spray Paint Booths
Spray Paint Booths
