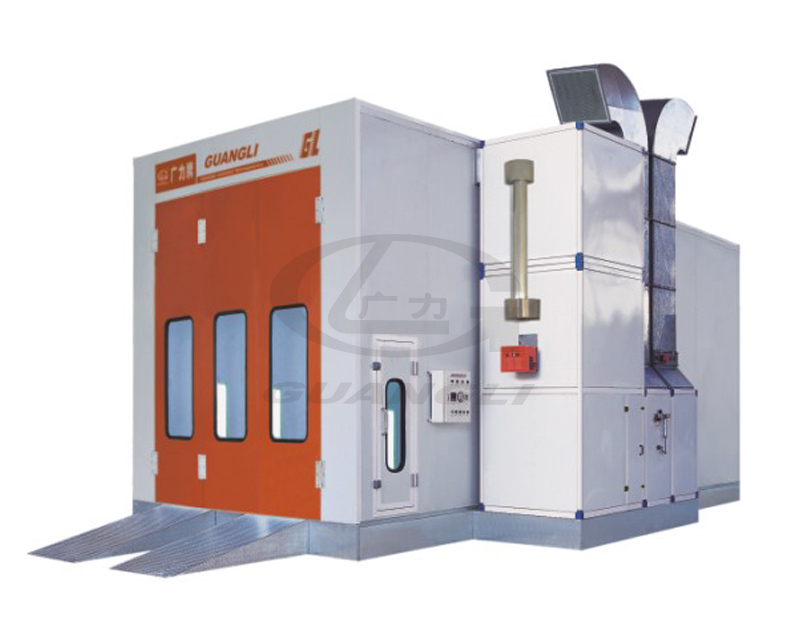

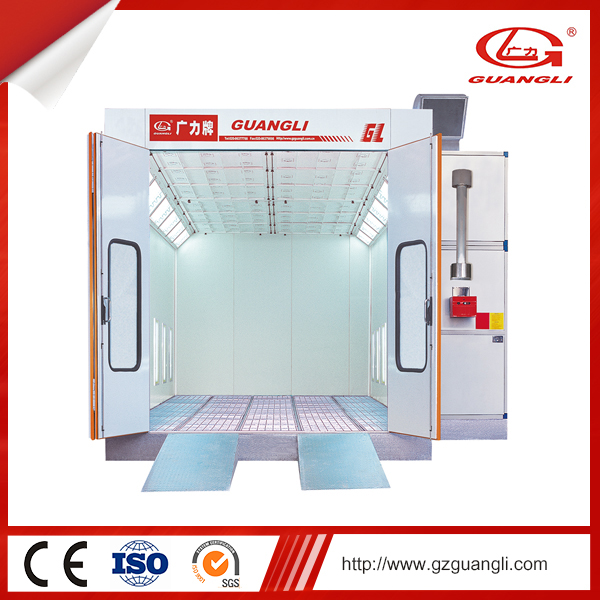

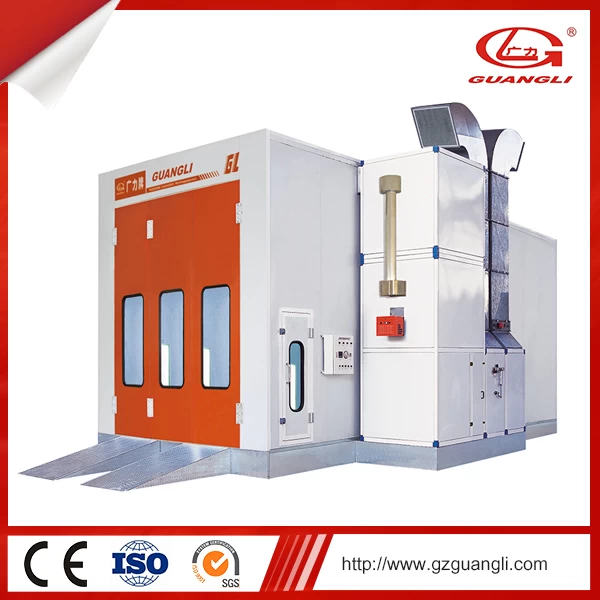

GL9-CE Professional Factory Supply Midsize Spray Booth
The Booth features:
Main body & basement:
--Wall panel: sandwich style, δ=50mm, rock wool. (Polystyrene is optional)
--Basement: steel structure, full grids. ramp: 2 pieces of grids.
--Door: 3 pieces of front door without aluminum side cover. 1 piece of emergency door with pressure lock.
Fans & ducts:
--One unit of 11 KW intake fan, and one unit of 7.5 KW exhaust fan.
--5m straight exhaust ducts, one 90° bend, and one 60° bend. 5m straight chimney and 2 small bends.
--Spraying/baking transition damper, automatically air controlled.
Heat & filters:
--Heat ex-changer: stainless steel. Riello G20 burner.
--Roof filter: 8 piece of filter, mounted above support frame, which is made of steel and powder coated.
--5 pieces of floor filter and 2 piece of air mouth filter.
LED Light & control box:
--Upper light: 12 sets, 4*18w per set. side lights: 10sets, 4*18w.
--Control box: imported components, overload, overheat, phase-lacking, phase-locking protection,
engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying.
--Environmental filter :either M style or drawer style active carbon equipment can be adopted.
|
Technical Specifications
|
GL9-CE
|
|
External size(m)(LxWxH)
|
8.7×5.63×4.23
|
|
Internal size(m)(LxWxH)
|
8.6×4.0×3.4
|
|
Door width(m)
|
3.0
|
|
Door height(m)
|
2.66
|
|
Air flow (m3/h)
|
36000
|
|
Inside no-load air speed(m/s)
|
0.3-0.5
|
|
Power (kw)
|
22.5
|
|
Exhaust type
|
Full-undershot,Bilateral,Semi-down,Unilateral
|
|
Vehicle suited
|
Midsize Bus
|
|
Heating System
|
RIELLO Brand Diesel Burner/Gas Burner
|
Baking Temperature(ºC)
|
20-80
|
|
Water based device
|
As optional
|
Environmental protection Device
|
As optional
|

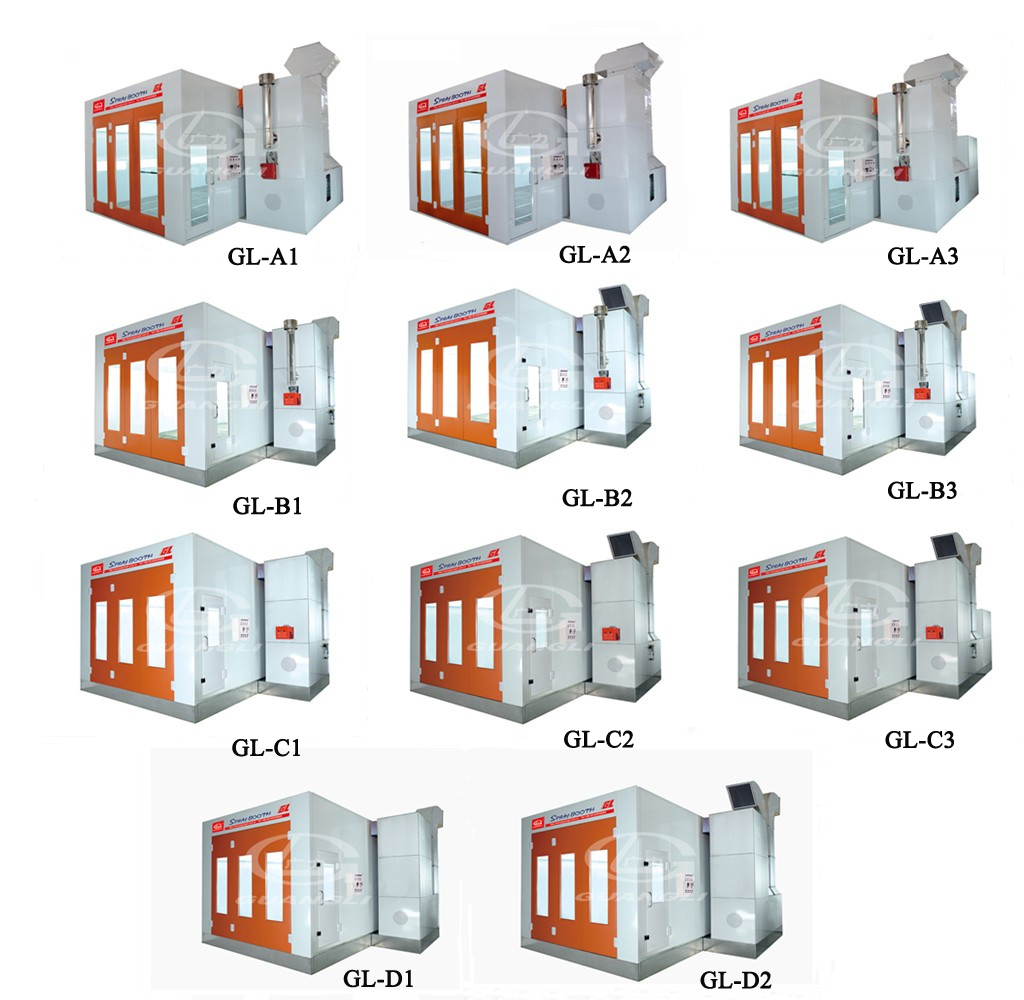

Guangli Spray Booth Show
