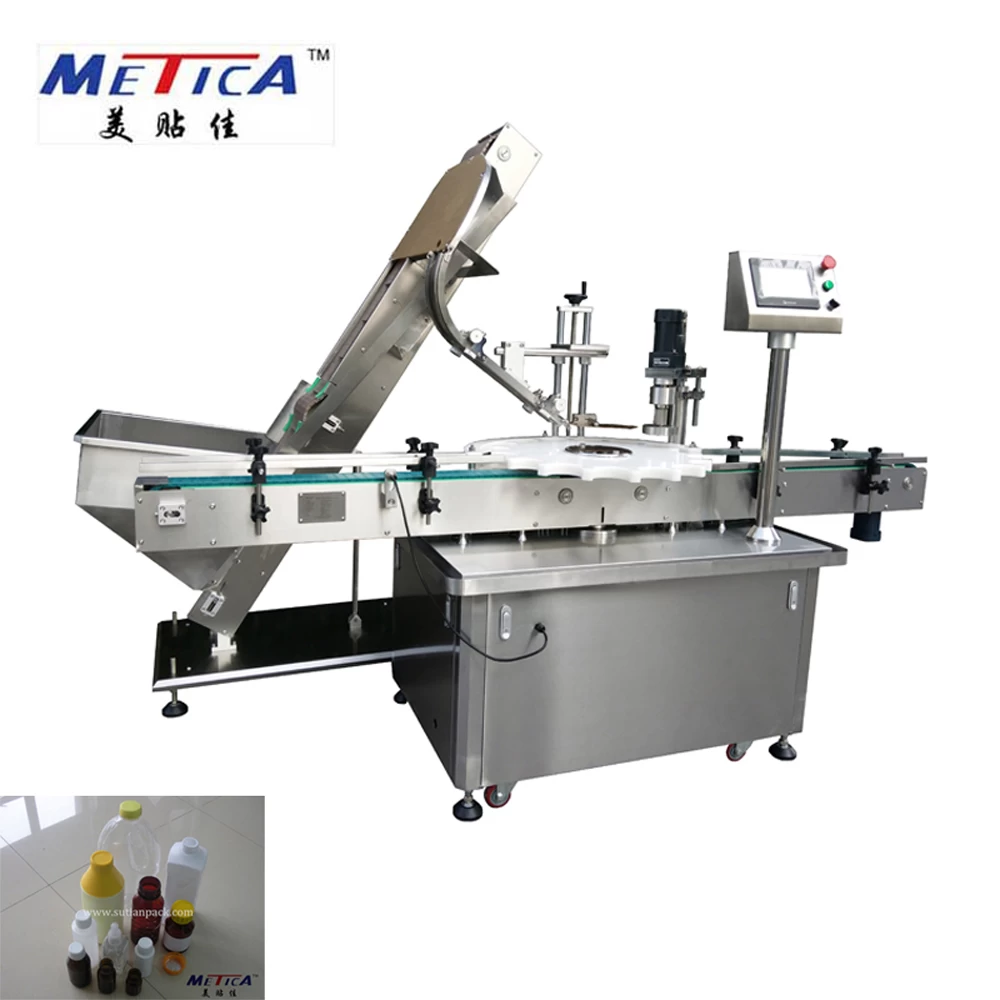

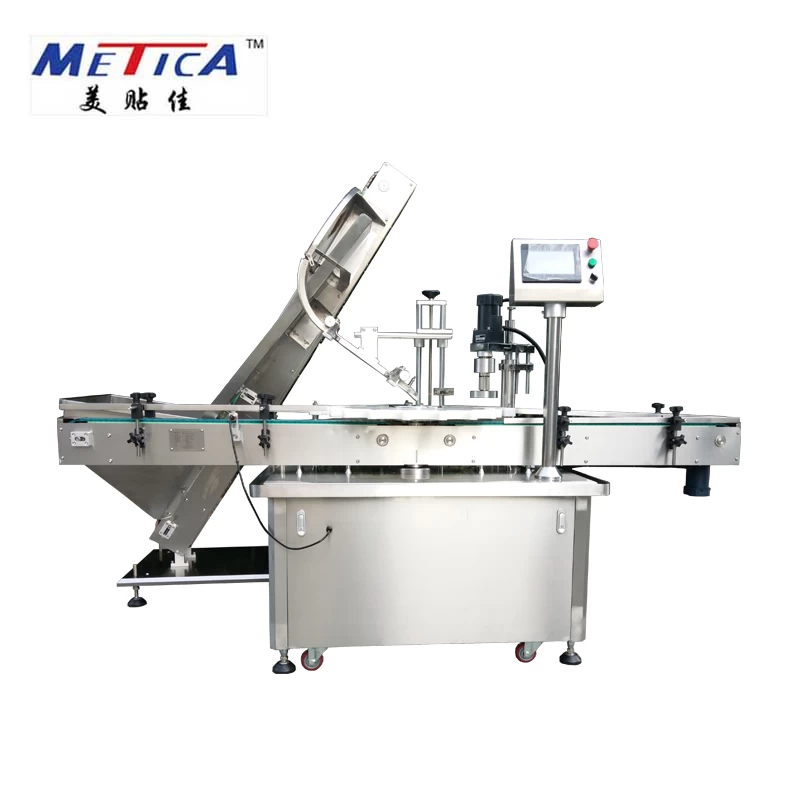

Glass Bottle and Plastic Bottle Automatic Rotary Type Capping Machine with Feeding Plate MTCP-100 for Screw Cap and Press Cap
Auto Capping Machine Application
- MTCP-100 automatic plastic bottle screw capping machine is our new designed product recently.
- Automatic capping machine adopts rotary plate to positioning the bottle and capping.
- The type machine is widely used in packaging cosmetic,chemical,foods,pharmaceutical,pesticides industry and so on.
- The bottle capping machine adopts Frequency controlled drive,and transportation exit is adjustable,so it could meet different packaging machinery pipeline request.
- It uses PLC programmable control.Structure compact,just used similar size of bottles and caps.
Capping Machine Features
- Automatic Feeding with Feeding Plate or Vibration bowl and Feeding Track
- Automatic Capping for all kinds of caps, such as lug/twits off caps, plastic screw caps and so on
- We can also design machine according to customer's special requirements.
Auto Capping Machine Technical Parameters
| Speed |
1500-3000 BPH |
| Capping accuracy |
>99% |
| Caps applicable |
Screw caps or press caps |
| Caps size range |
20-80mm (can be customized)
|
| Power supply |
220V 50/60Hz, 1KW |
| Air supply |
0.6 MPa |
| Machine size |
240*135*173 cm |
| Bottle applicable |
a wide shape range |
| Caps feeding |
Lifter or vibration bowel |
| Feature |

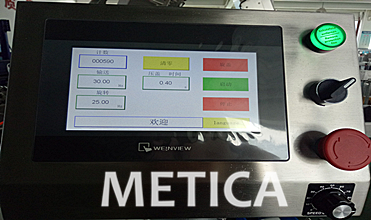

PLC, touch screen, with clutch |

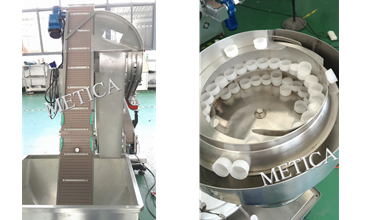

Cap feeder device:
Lifter and vibration bowel for option

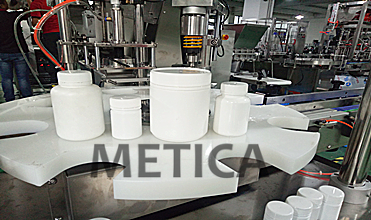

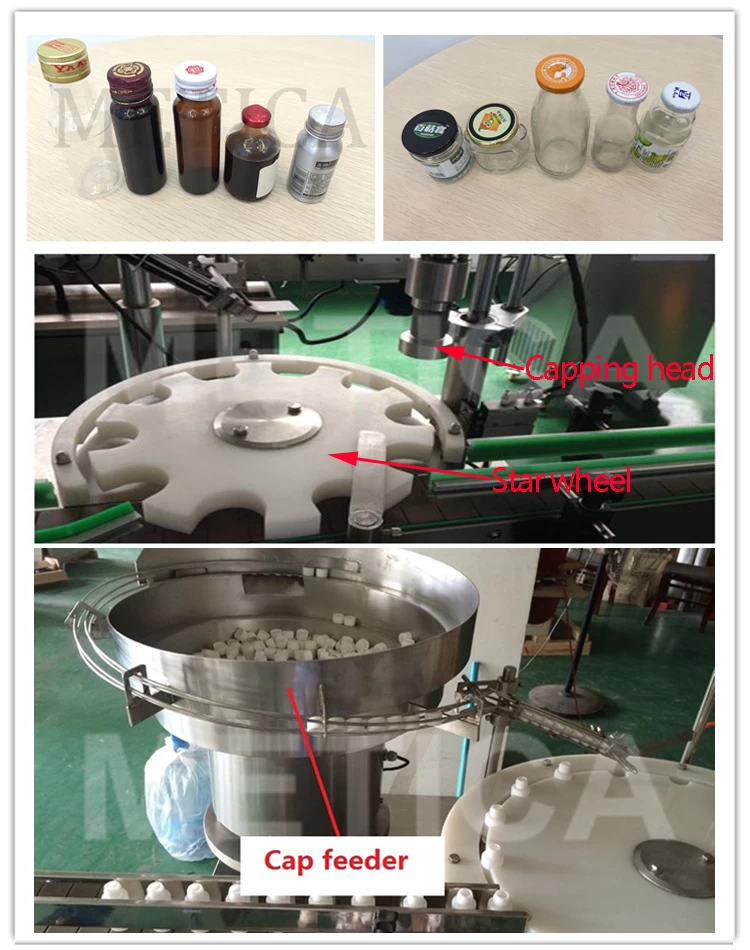

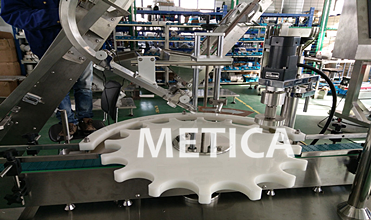

Capping Projects Samples
