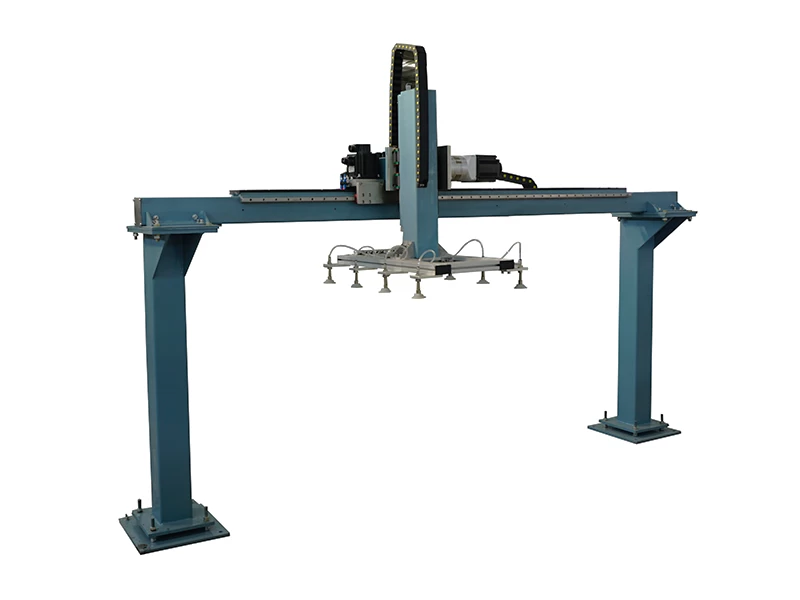

Structure Description:

Single beam structure; rack, rail drive; servo motor drive; X, Z axis motion. Touch screen control; 8 suction cups

Processing parameters:

X-axis travel: 1200mm (can be customized)

Z axis travel: 300mm (can be customized)

Suction size range: 400*400—1300*1000mm (can be customized)

Picking speed: satisfying the small glass output rate of 10 s/pc

Configuration:

Motor: Delta servo

Rack: import

Guide rail: Taiwan

Touch screen: Mitsubishi (optional other brands)

PLC: Mitsubishi (optional other brands)

Columns and beams: aluminum or square tube welding

Electrical original: Great Wall or CHINT

Proximity switch: SONON or Si Yan Technology

Vacuum generator: domestic

Suction cup: silicone material, 8pcs
