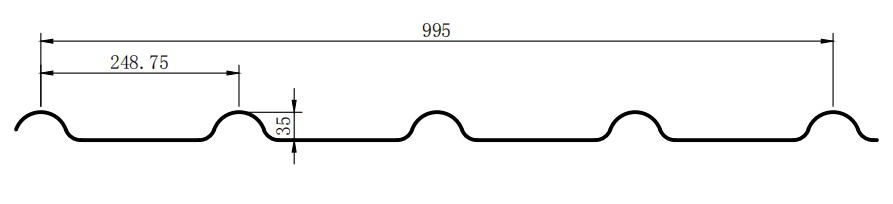

Glazed Tile Roll Forming Machine for YX35-925 profile

Bamboo style Glazed Tile Roll Forming Machine with Taiwan Quality,China Price.

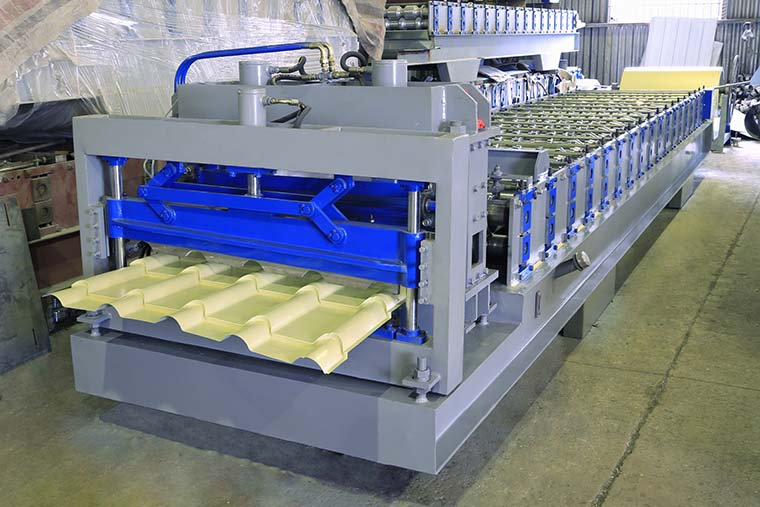

           Bamboo style Glazed Tile Roll Forming Machine





Bamboo style Glazed Tile Roll Forming Machine


Click here to check the video : Bamboo Style Glazed Tile Roll Forming Machine




1.Main features of Glazed Tile roll forming machine




    The advantages of Glazed Tile machine are as follows:

    1.The machine produced tile with low cost,light weight but high strength.

    2.Short building period, and re-cycle use ,save material and no waste.

    3.Easy operation, low maintenance cost

    4.With Taiwan Quality,China Price.



2.Detailed Images of YX35-925 Glazed Tile forming machine




    Machine Parts

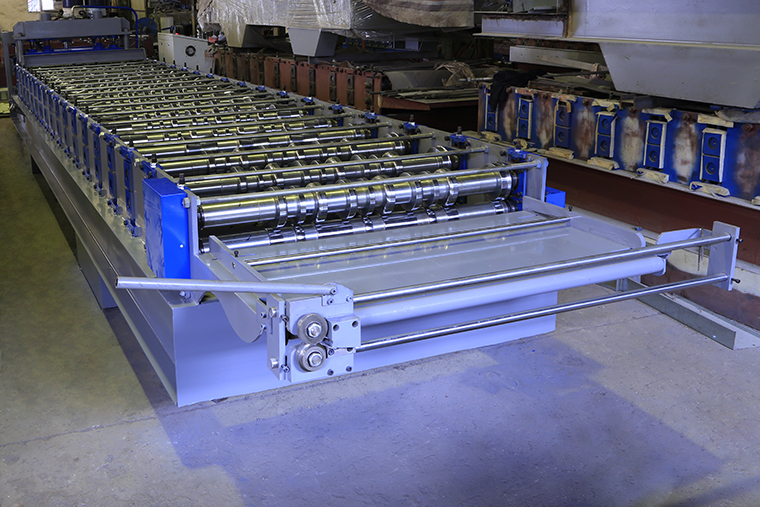

1)    YX35-925 Glazed Tile roll forming machine pre-cutter

        Brand: BMS    Original: China

        With feeding material guide.



      Bamboo style Glazed Tile Roll Forming Machine

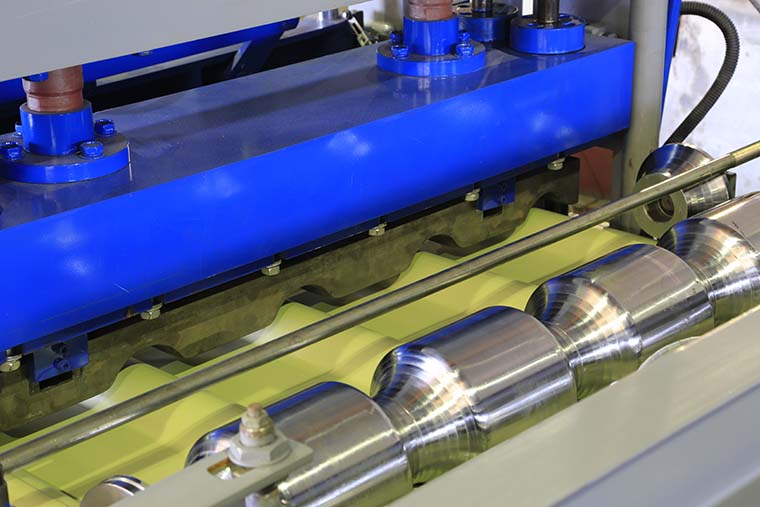

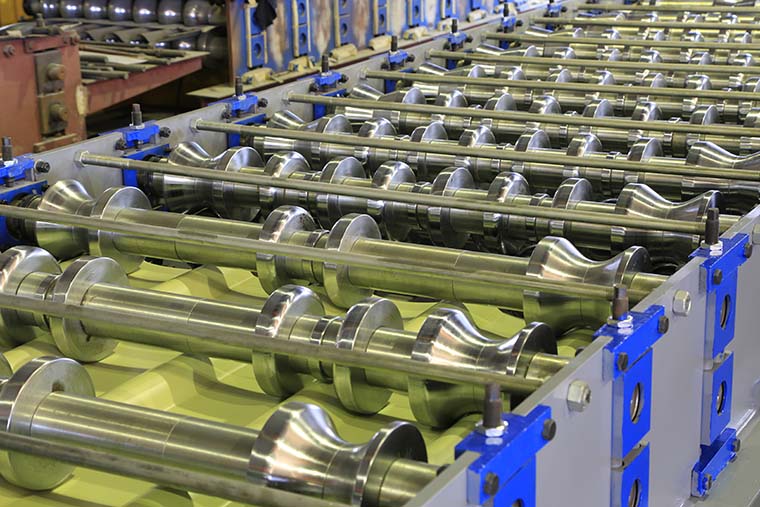

2)    YX35-925 Glazed Tile roll forming machine rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        with Hard-Chrome Coating for long working life

        Body framemade from 350# H type steel by welding



Bamboo style Glazed Tile Roll Forming Machine

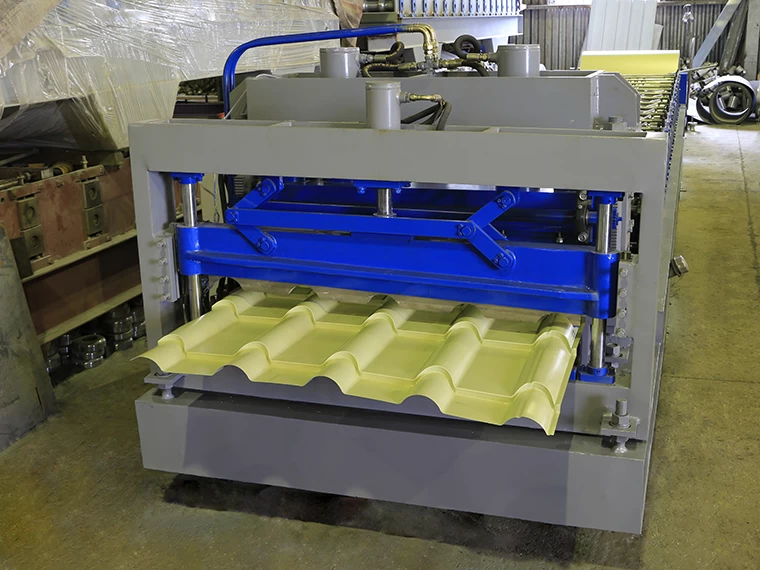

3)    YX35-925 Glazed Tile roll forming machine post cutter

         Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa



Bamboo style Glazed Tile Roll Forming Machine



Bamboo style Glazed Tile Roll Forming Machine

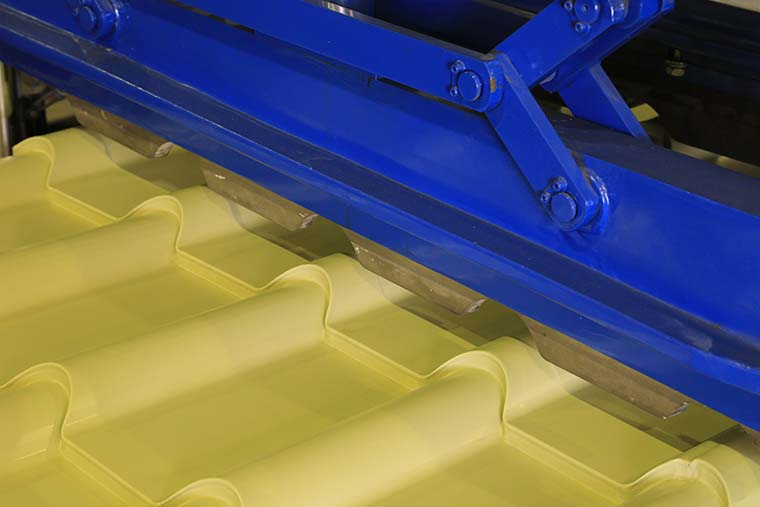

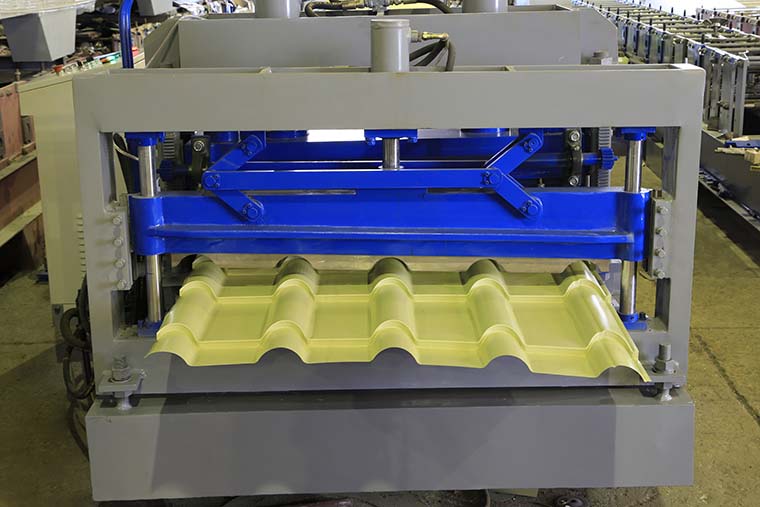

4)    YX35-925 Glazed Tile roll forming machine punching mould




Bamboo style Glazed Tile Roll Forming Machine

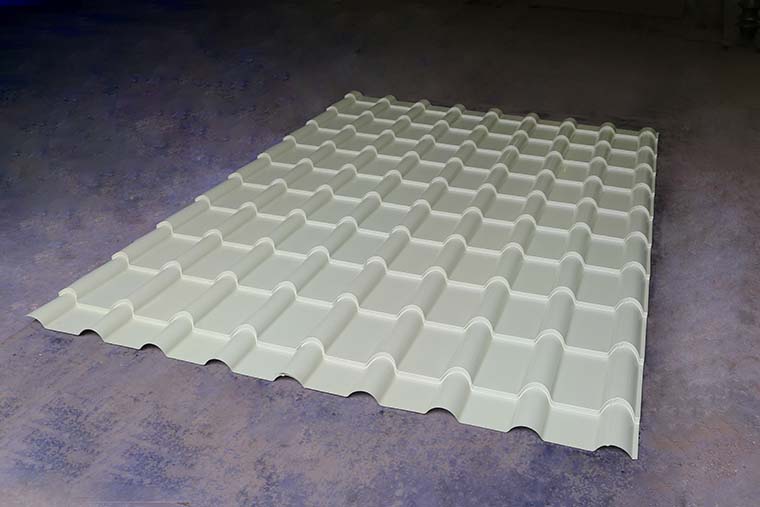

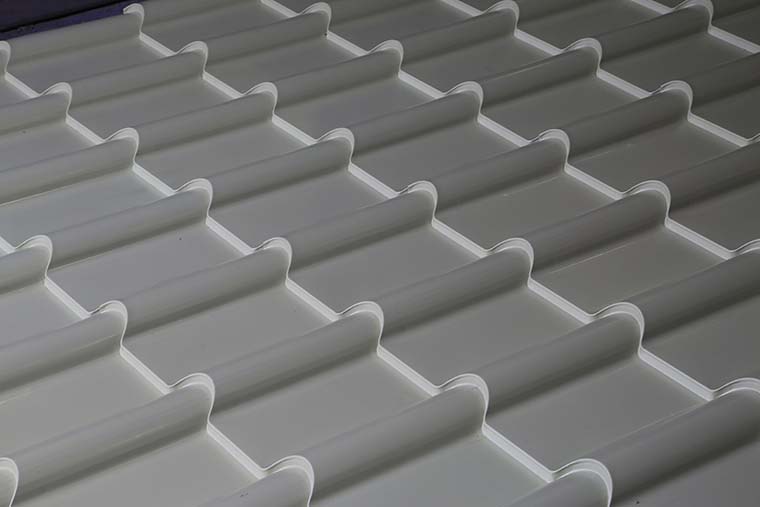

5)    YX35-925 Glazed Tile roll forming machine product show





Bamboo style Glazed Tile Roll Forming Machine



Bamboo style Glazed Tile Roll Forming Machine


6)    YX35-925 Glazed Tile roll forming machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1200mm, coil ID range 508mm±30mm

        Capacity: 5-9 Ton



     With 6 tons hydraulic decoiler for option


Bamboo style Glazed Tile Roll Forming Machine



7)    YX35-925 Glazed Tile roll forming machine exit rack

        Un-powered,one unit



Other detailes of YX35-925 Glazed Tile roll forming machine



Suitable for material with thickness 0.3-0.8mm

Shafts manufactured from 45#,shaft diameter=φ90/75mm,precision machined

Motor driving,Gear chain transmission, 20 steps to form.

Main motor=15KW , Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Schneider Electric/Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of Glazed Tile roll forming machine



1. The warranty of purlin Glazed Tile roll forming machine

    is 18months after the client receives the machine.

    Within the 1.5years, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export to more than 50 countries and regions, including Taiwan, UK, France,

   Ireland, Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia,

   UAE, Iran, Kuwait, Yemen, India, Pakistan, Singapore, Malaysia, Thailand, Indonesia, Philippines,

   Vietnam, Myanmar, Brunei, South Africa, Zimbabwe, Mozambique, Zambia, Congo, Cameroon,

   Sudan, Ethiopia, Nigeria, Guinea, Algeria, Libya and Egypt, Russia,etc.
