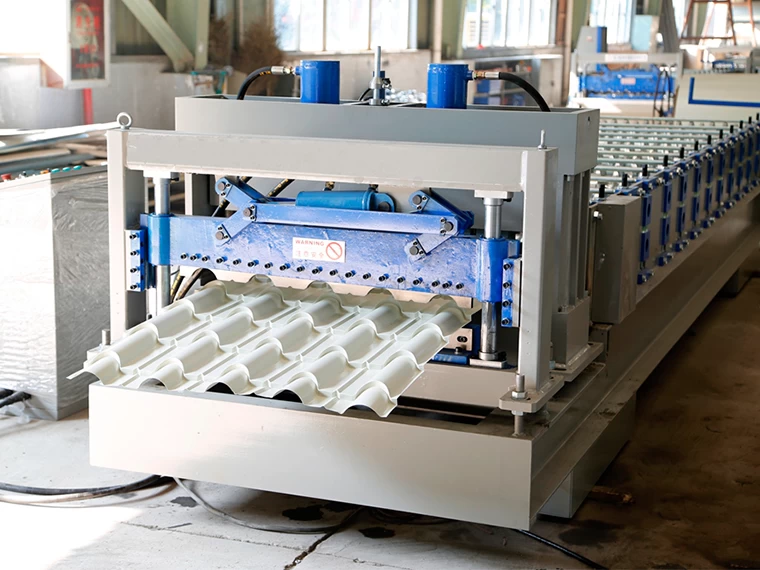

YX42-1000 Roof Panel Glazed Tile Roll Forming Machine

The tile roof machine can produce various of tile panel, which are used to construct curvaceous roofs, It can substitute the traditional clayey tile and cement tile and save much land resources. And the raw material can be in different color, with elegant and noble looking.



Main Components

1.Manual Decoiler: one set
Un-powered,Manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1000mm, coil ID range 470mm±30mm
Capacity: Max.5Ton
2.Cold Rolling Mills:
Material Thickness:0.3-0.6mm,Material Width:1220mm,
With feeding material guide, body frame made from 350# H type steel by welding,Side wall thcikness: 18mm
Rollers manufactured from 45#, precision machined, hard Chrome Coated
Shafts manufactured from 45#,Diameter=φ75mm,precision machined
Motor Driving,Gear chain transmission, 17 steps to form
Main Motor=7.5KW , Frequency speed control 380V/50Hz/3Ph
Forming speed approx.4-8m/min
3.Hydraulic Cutting device
Cutter frame made from high quality 20mm steel plate by welding
Post cut, stop to cutting, use the same hydraulic motor drive
hydraulic motor: 3.7KW, Hydraulic pressure range: 0-12Mpa
Cutting tool material: Cr12Mov, Heat treatment
4.PLC Control System(Touch screen brand:German Schneider Electric,Inverter brand:Taiwan DELTA,Encoder brand:Japan Koyo)
Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
5.Exit Rack Un-powered, two units
6.User's manual in English

Features of Glazed Tile Forming Machine
Different tile roof forming machines can produce different shapes of steel tile roof sheets in various thickness and colors. Steel tile roof sheets are the new substitutes for traditional clayey, concrete tiles. They are popular because of their low cost, short building period, re-cycle use, and elegant appearance. They are used as the roof of villas, luxury houses, theatres, exhibition centers, etc.

The complete glazed tile forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the glazed tile forming machine produces it automatically. The machines are easy to operate and running stable.

After-sale Service
1. The warranty of the roof panel forming machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.

Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: T/T
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,  Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
