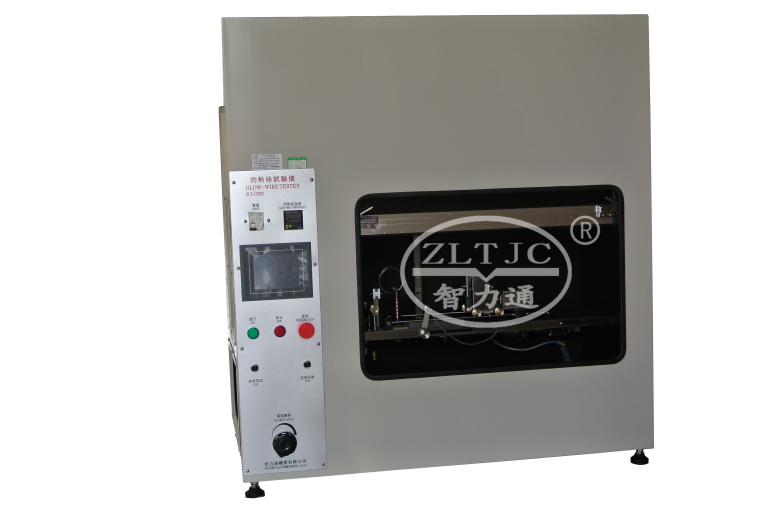

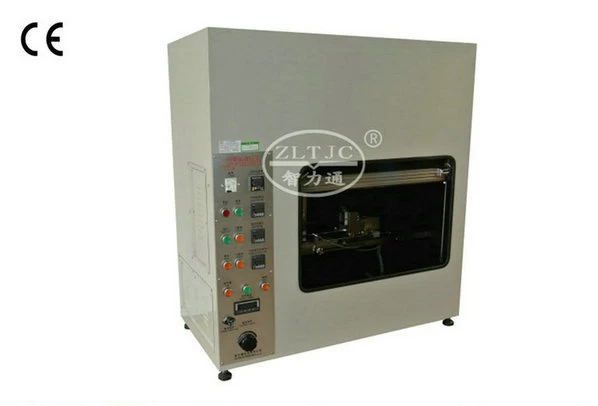

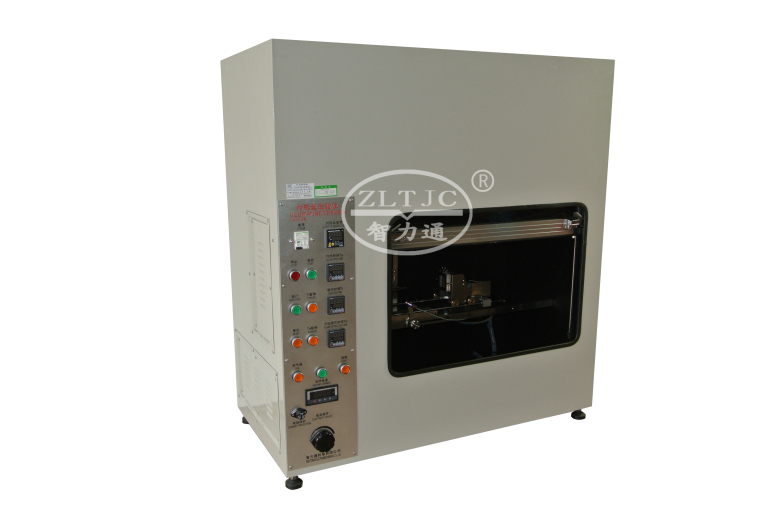

Glow Wire Tester ZLT-GTR
Product details: Model ZLT-GTR:
Glow wire tester is designed to carry out fire hazard testing on electrotechnical products in accordance with the provisions of International standards.
The control unit is supplied with all the controls and metering necessary to accurately set the temperature of the glow wire. The wire current is continuously variable by means of the panel-mounted controller and is monitored by the built-in ammeter. A digital temperature indicator is fitted in glow wire tester, in conjunction with the thermocouple supplied, accurately measures the glow wire temperature. The electrical circuit of the control unit is fully protected by fuses and a miniature circuit breaker and incorporates mains on/off switching and push button control of the output current. Self contained cabinet of glow wire tester with large viewing window and dark colored interior.
Specifications:
| Glow Wire Element |
Ni/Cr wire, diameter: 4mm |
| Temperature Range |
50ºC – 960ºC |
| Current Range |
0 to 200 A |
| Thermocouple |
Type K (Ni/Cr - Ni/Al) |
| Thermocouple Size O/D |
1.0 mm |
| Temperature Resolution |
1ºC |
| Traverse Unit |
Horizontal |
| Force |
0.95N±0.1N |
| Maximum Travel |
14.5 cms |
| Test Travel Limit |
7 mm |
| Flame Height Indicator |
30 cms |
| Input Power |
220 V 50 Hz 3A or 115 V 60Hz Optional |
| Volume Of Chamber |
>0.5m³, black interior |
| Outer Dimensions |
W*D*H=1100mm*550mm*1100mm |
| Conform to standard |
IEC60695-2-10(2013), IEC60335-1, IEC60598-1,IEC60884,
IEC60745 |
| Fitted to the base plate are a flame height scale, a level and adjustable feet |
| Digital Temperature Display |
Includes:
white Pine Test Board and five Sheets of Tissue Paper
Glow Wire Loop
Thermocouple Type K
CE mark can be used:
Order info:
Product Type:
Place of origin: Guangzhou ,China
Price Terms: FOB, CIF ,EXW
Payment Terms: T/T
Package: wooden case
Minimum Order: 1
Delivery Time: 20 working days
