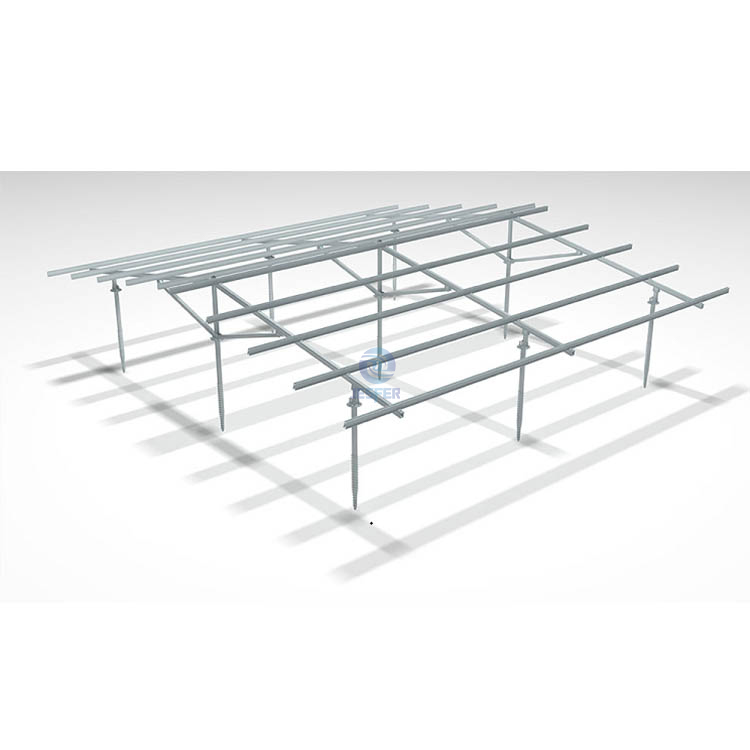

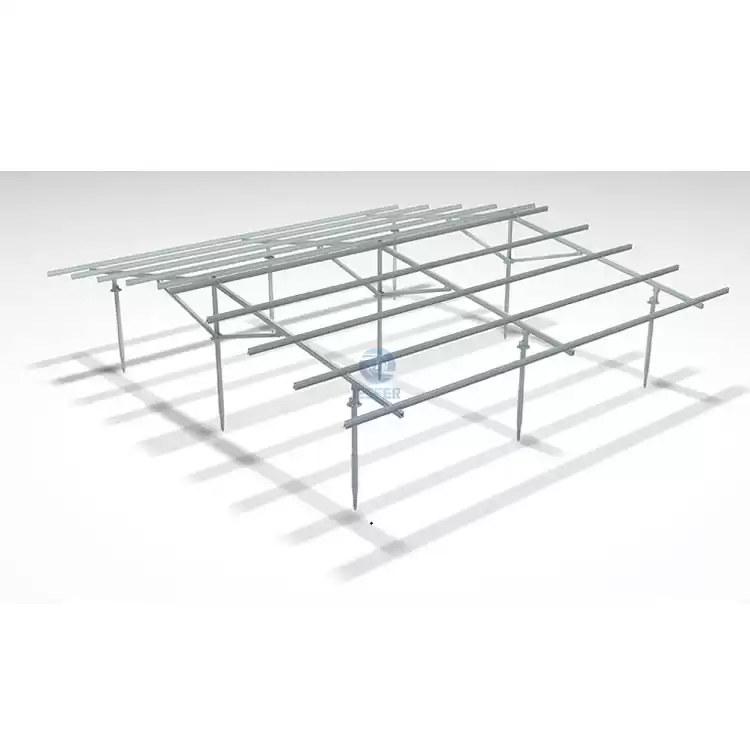

GM06 Solar Ground Mounting Bracket System
Jesfer solar ground mounting kits is designed to install solar panels on ground screw & concrete based.the systems have been caculated compatiable with tested strictly and strututal machines.the material mainly use anodized aluminum with great anti-corrosion suitabe for outdoor using.

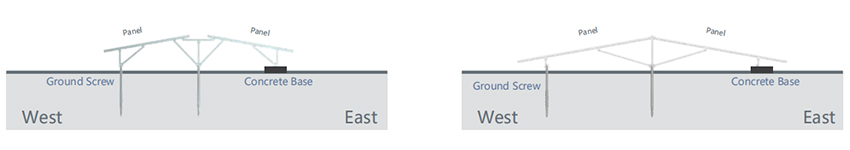

Structure
Technical Parameters
System Name
|
Ground Mount System GM06
|
Panel Layout
|
Landscape or Portrait
|
Foundation
|
Concrete Foundation,Ground Screw
|
Material
|
Anodized AL6005-T5
|
Tilt Angle
|
0-30degrees
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel
|
Snow Load
|
1.6KN/㎡
|
Color
|
Customized or Silver
|
|
Wind Load
|
60m/s
|
Design Standard
|
AN/NZS1170,DIN1055,JIS C8955,etc.
|
Applicable Solar Module
|
Framed or Frameless
|
Warranty
|
10 Years
|
|
Ground Clearance
|
500-2000mm
|
Small Components
|
Anodized AL-6005-T5
|

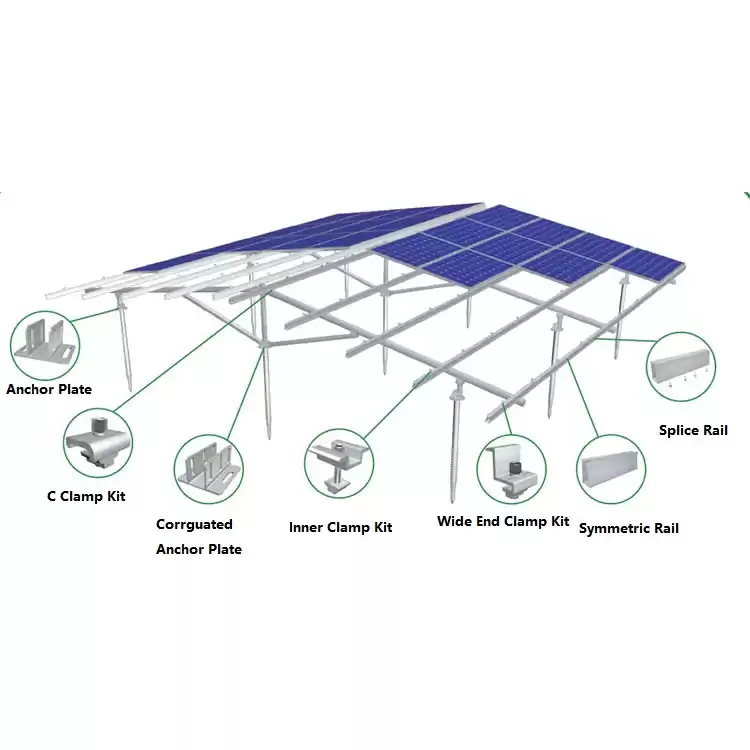

Components Details
|
Symmetric Rail 87
Specification:L*58*87
Standard Length:3100mm,4100mm,5100mm
|
|
Inner Clamp Kit
Components：Inter Clamp,Symmetric Cross Module
Spring Washer M8,Hexagon Socket Bolt
|
|
|
Splice Rail 87
Specification:L260mm
Components:Hexa Self-Tapping Screw With EPDM washer ST6.3*19
|
|
Pro-T Corrugated Anchor Plate Kit(Back)
Components:Corrugated Gasket,Corrugated T Plate,Hexagon Bolt Kit,Material:AL6005-T5（Anodized ）
|
|
|
Pre-Assembled Supports
Components:Symmetric Rail 80,Front/Back T Jointer,Hexagon Socket Bolt,Washer, Spring Washer,C Clamp 80;Hexagon Nut,Square Tube;Hexagon Bolt
|
|
55*55 Square Tube
length：L*55*55
Specification:3100mm,4100mm,
5100mm
|
|
|
C Clamp Kit
Components:C Clamp,Symmetric Cross Module,
Spring Washer M8,Hexagon Socket Bolt
|
|
Pro-T Corrugated Anchor Plate Kit L185
Components:Corrugated Gasket,Corrugated T Plate,Hexagon Bolt Kit
Material:AL6005-T5（Anodized)
|
|
|
Wide End Clamp Kit
Components:Wide End Clamp,Symmetric Cross Module,Spring Washer M8,Hexagon Socket Bolt
|
|
|
|

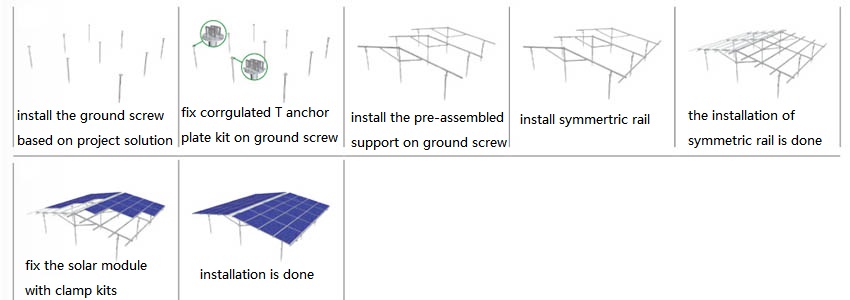

Installation Guide
Excellent quality made us more competitive in the markets, we are always looking for good partners for long cooperation, if you are interested in High Quality & Free Design For Solar Ground Mount Kit, pls contact us right now.Jesfer! Your Best Choice, Your Reliable Supplier!
Why Choose Us?
*Our ISO 9001 factory has accumulated 25-years of experience in aluminum products.
*Our Factory have 20 sets of punching machines, 10sets of aluminum alloy cutting machines, 20 sets of automatic drilling, tapping machines and 5 roll forming production lines, and monthly productions of aluminum alloy solar mounting up to 50MW.
