Single Pole Ground Mount For Solar Pumping Structure System

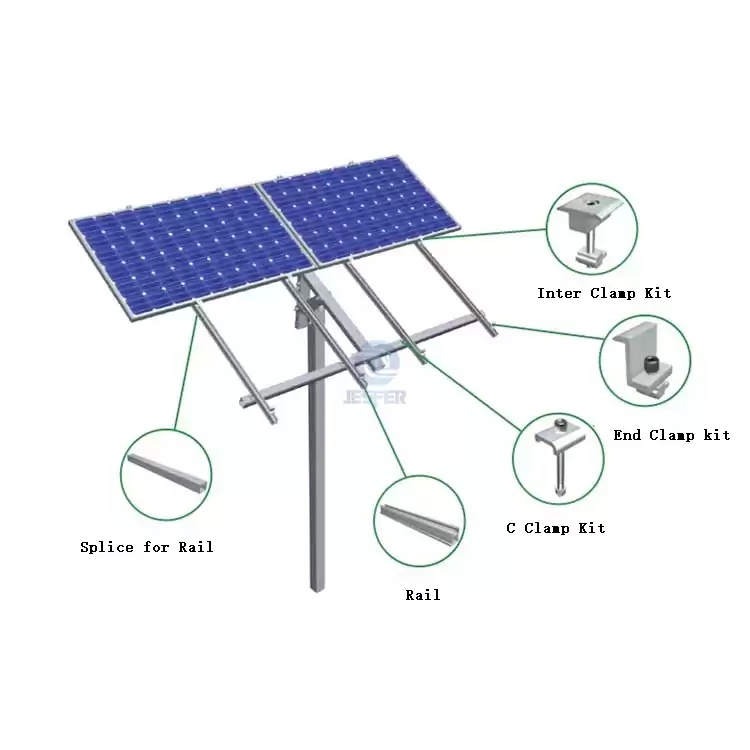

There are several of solutions are available basis on clients’ requirement and different solution .Solar Pole Mounting System can be installed Number 2,4,6 or 8pcs of solar panels on a single pole .the system mainly included round tube ,adjustable inner clamp ,adjustable end clamp ,square pipe ,pole and rail .The length of the purlin beam and pole can be customized for different conditions.

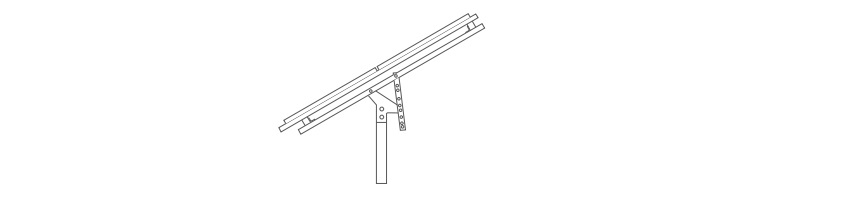

Structure

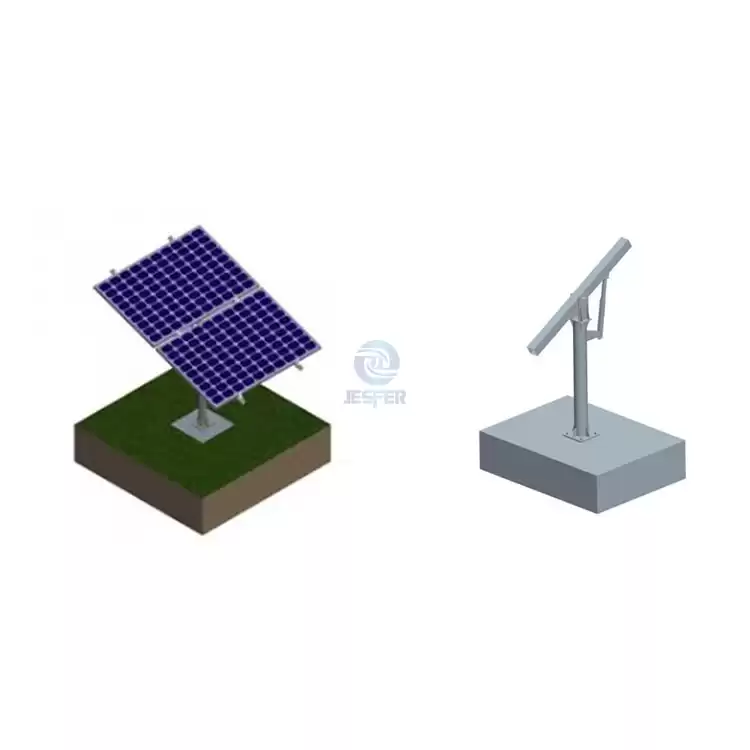

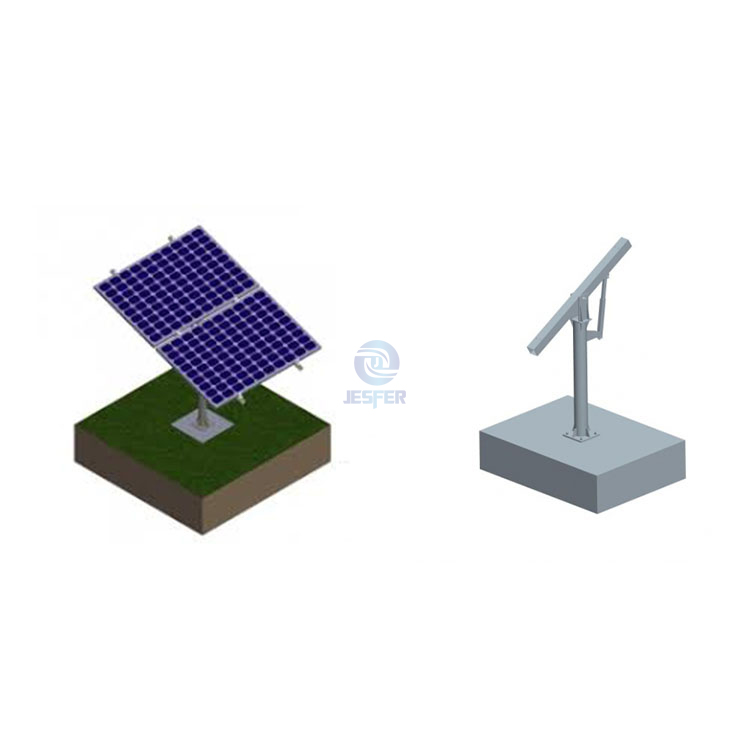

Single Pole for PV Solar Mounting System
Benefits
-
Integrated design for the support pole minimizing the time and cost of installation .
-
Easy Installation
-
Safety
-
Design and check the structure according to the structure machines and installation acts.
-
Excellent Duration
-
All material is selected with first level anti-corrosion protection
Technical Parameters
System Name
|
Ground Single Pole Rack System
|
Panel Layout
|
Landscape or Portrait
|
Foundation
|
Concrete Foundation or Ground Screw
|
Material
|
Q235B (Hop-Dip Galvanized) ,AL6005-T5(Anodized)
|
|
Tilt Angle
|
10-60degrees
|
Fastener
|
Hop Dip Galvanized & SUS304
|
Snow Load
|
1.3KN/㎡
|
Color
|
Customized or Silver
|
|
Wind Load
|
32m/s
|
Design Standard
|
AN/NZS1170,DIN1055,JIS C8955,etc.
|
Applicable Solar Module
|
Framed or Frameless
|
Warranty
|
10 Years
|
|
Ground Clearance
|
200-2000mm
|
Small Components
|
Anodized AL-6005-T5
|
Installation Guide

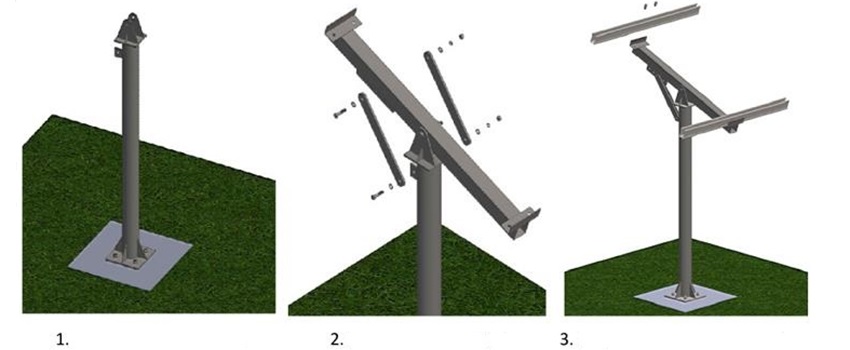

1.fixed the pole to ground 2.Fix Girder to the Pole

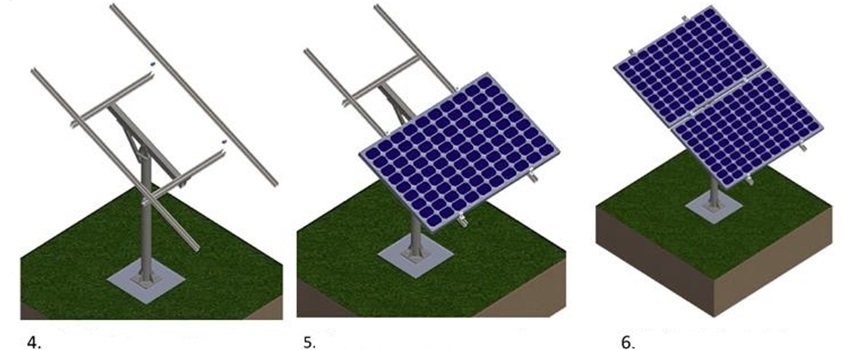

3. Fix Support beams to the girder 4.Fix rail to the support beam
5.Fix Panels to the rails with clamp 6.Finish the installation
Excellent quality made us more competitive in the markets, we are always looking for good partners for long cooperation, if you are interested in High Quality & Free Design For solar pole ground mounting system, pls contact us right now.Jesfer! Your Best Choice, Your Reliable Supplier!
