GoFast 650B 30mm Width 25mm Depth Super lightweigh mtb rims

30mm wide 25mm deep carbon mtb rims 27.5er constructed from Toray T700&T800.The max rider weight of mtb carbon rims is 110kg.

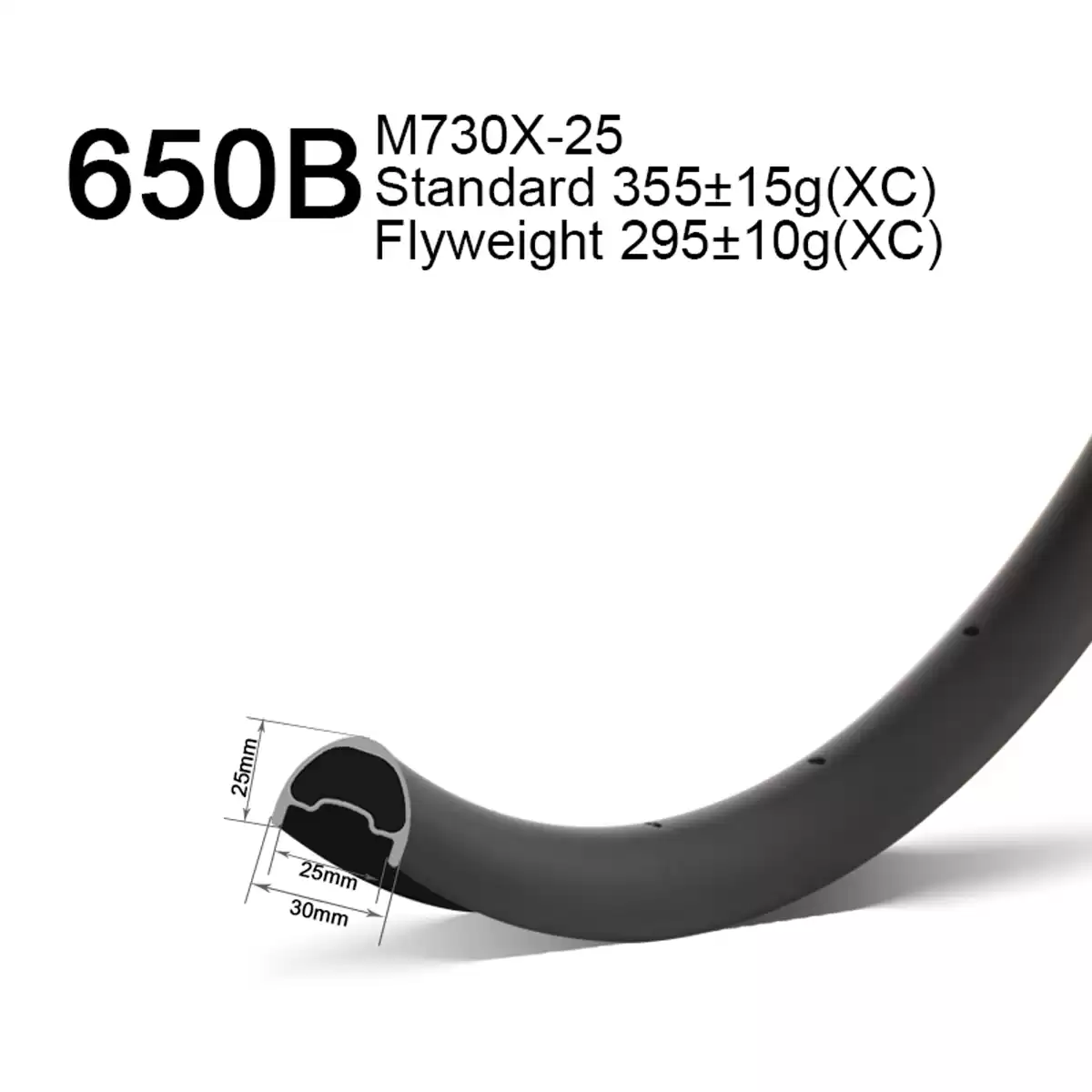

GoFast 650B 30mm Width 25mm Depth Super lightweigh mtb rims


Product Feature

  • 30mm wide 25mm deep carbon xc rims are constructed from Toray T700&T800 that structure minimize the rotational weight.
  • Tubeless mtb rims are used for cross-country and fit 1.8-2.5" tire.
  • 27.5 xc rims have flyweight version(295±15g),buty only UD.
  • Imposite material that increases the impact strength and helps distribute energy and shock from impacts to the rim.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Hookless Rim Bead. Hookless rim bead more straight and smooth side walls, tire can touch rim walls fully. More durable and impact resistance compared to the traditional hooks rim.
  • Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.


Specification

Item NO.:
M730X-25
Size:
27.5er
Terrain:
Cross Country
Appearance:
UD/3K/12K
Finishing:
Matte/Glossy
Material:
Full carbon fiber (Toray T700+T800)
Spoke Hole:
24/28/32/36H
Outer width:
30mm
Depth:
25mm
ERD:
551.4mm
Type:
tubeless

Weight:


Standard:355±15g

Flyweight:295±15g(only UD)

Standard:
En Standard
Tyre Size:
1.8-2.5"
Max Tire Pressure:
60psi

Max Rider Weight:

110kg

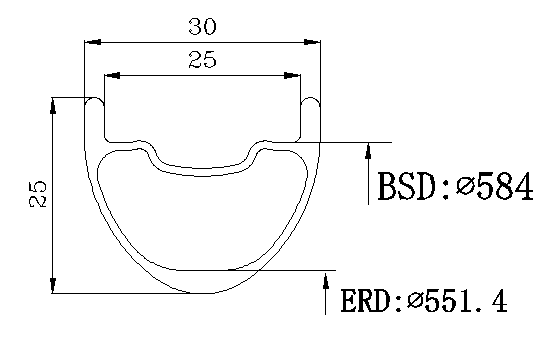

Geometry

27.5 lightweight xc rims



Manufacturing process:

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

Read More For Production Of Carbon Rims By DCH Factory



100% Quality Inspection:

DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.

Read More For Testing Of Carbon Rims By DCH Factory
