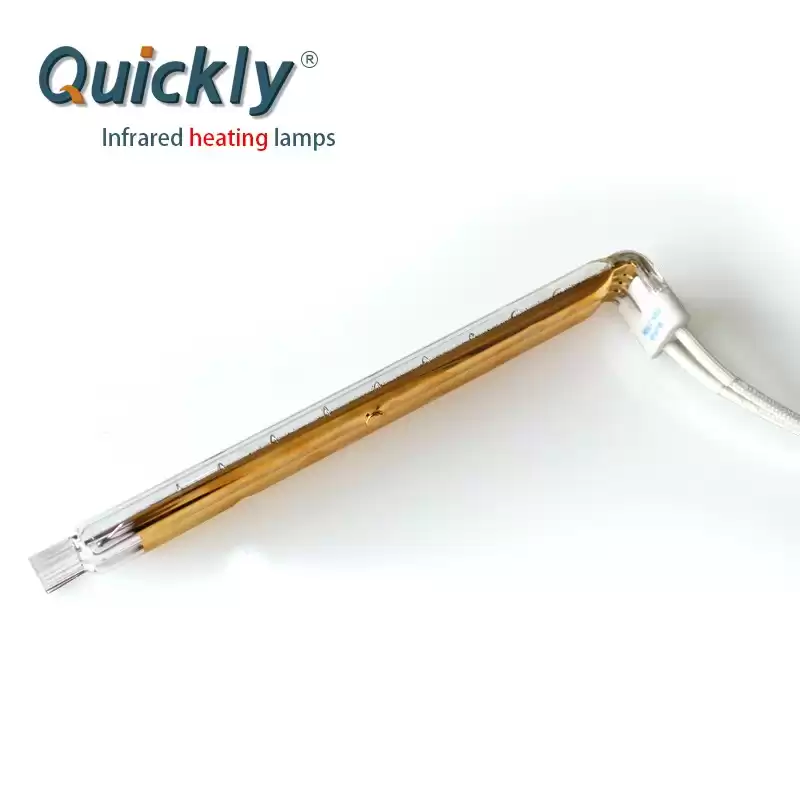

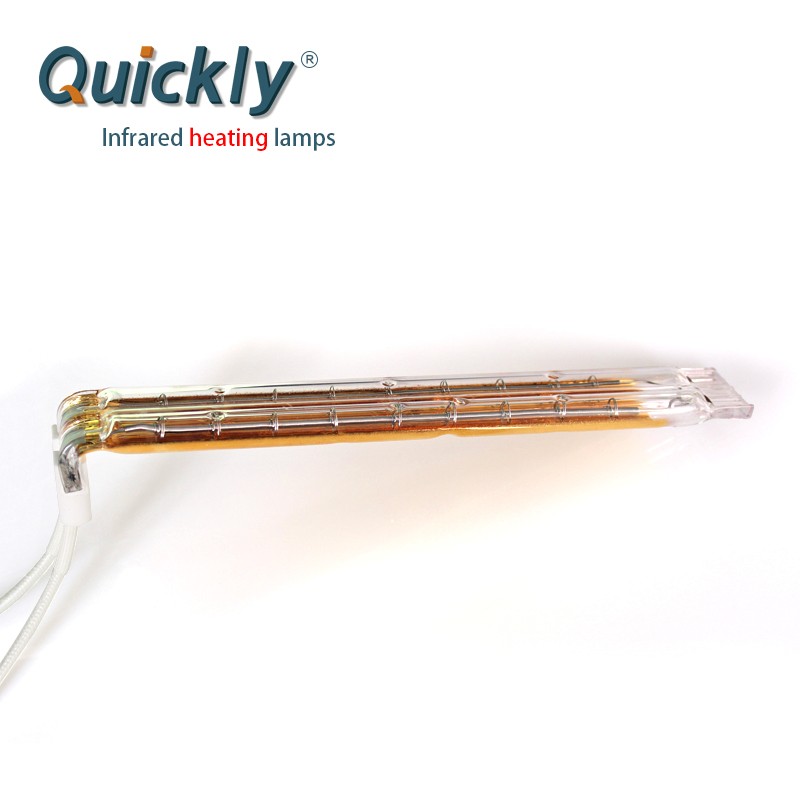

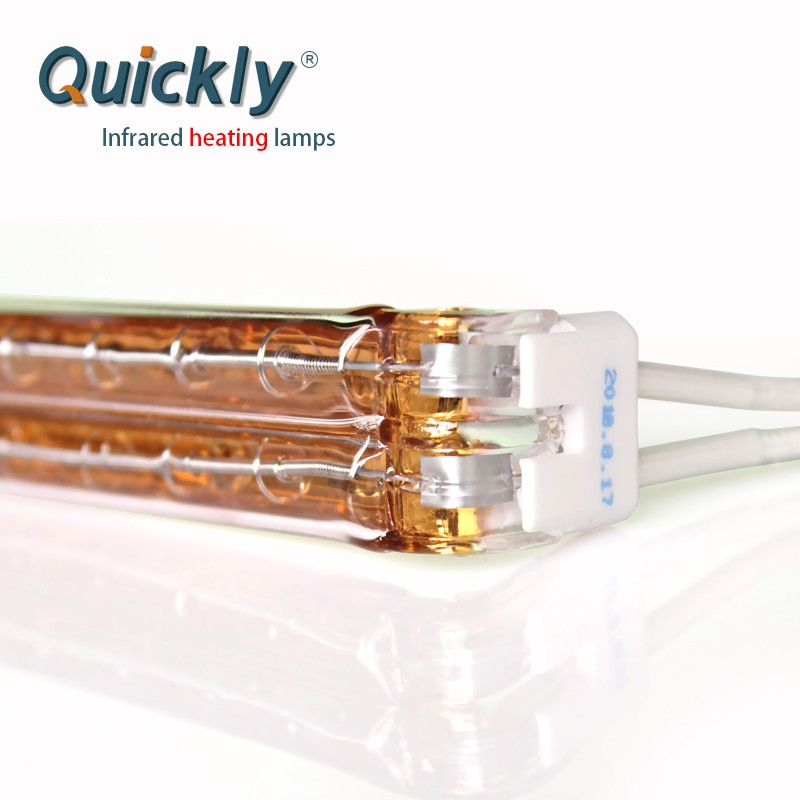

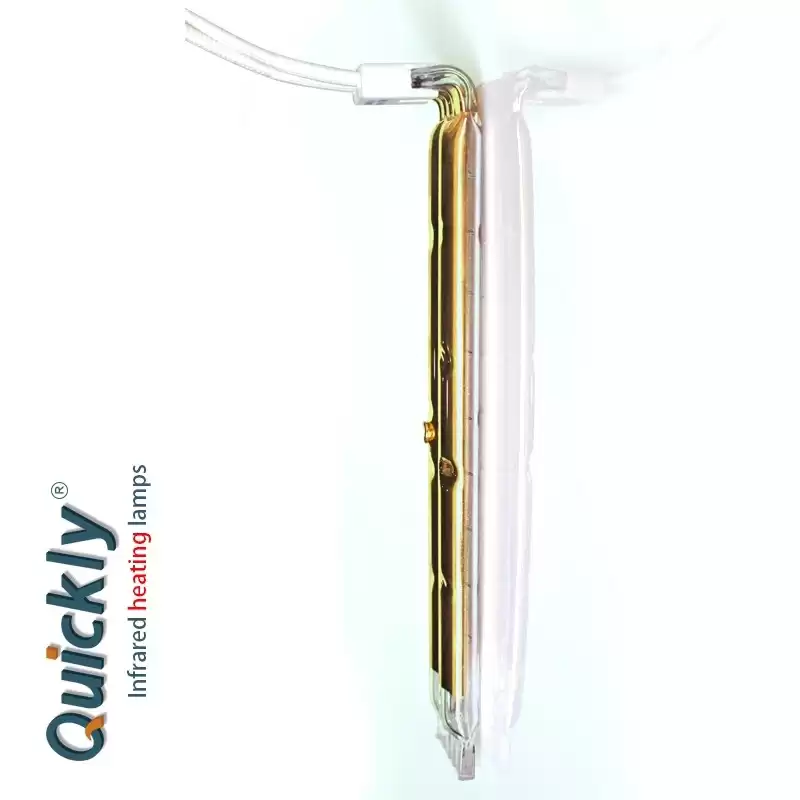

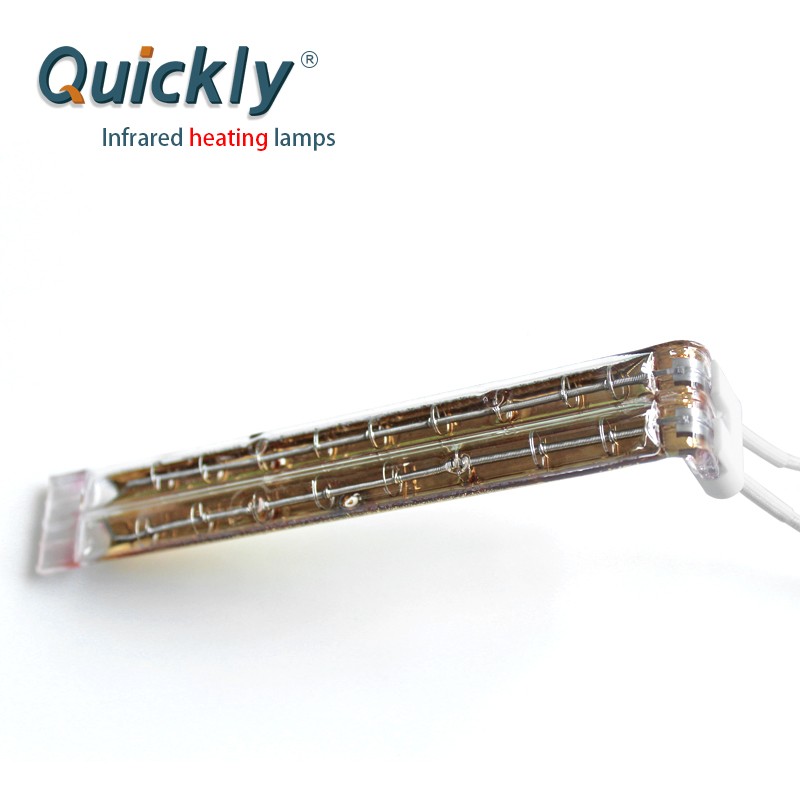

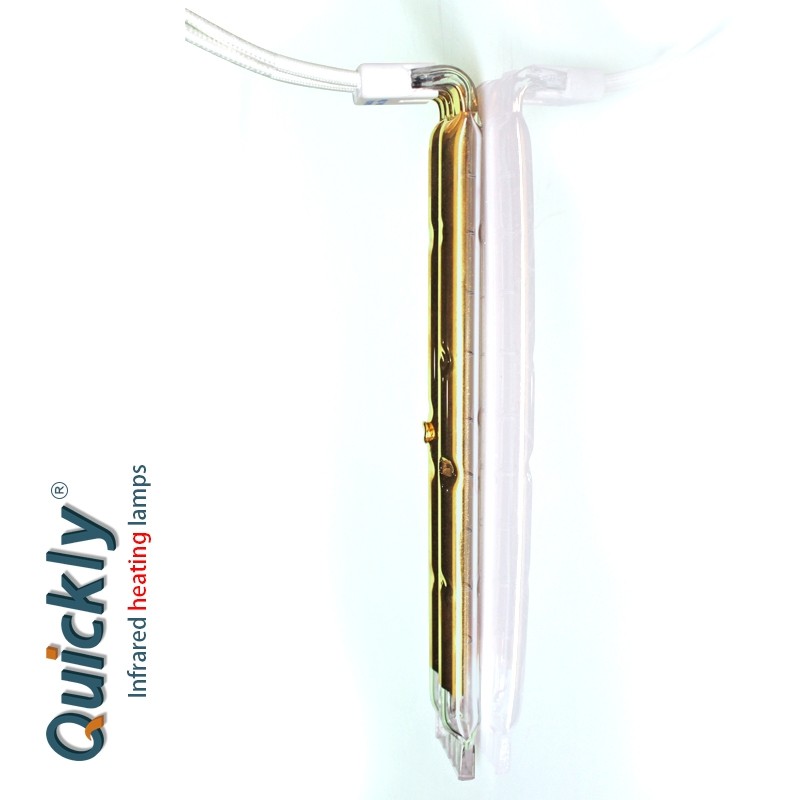

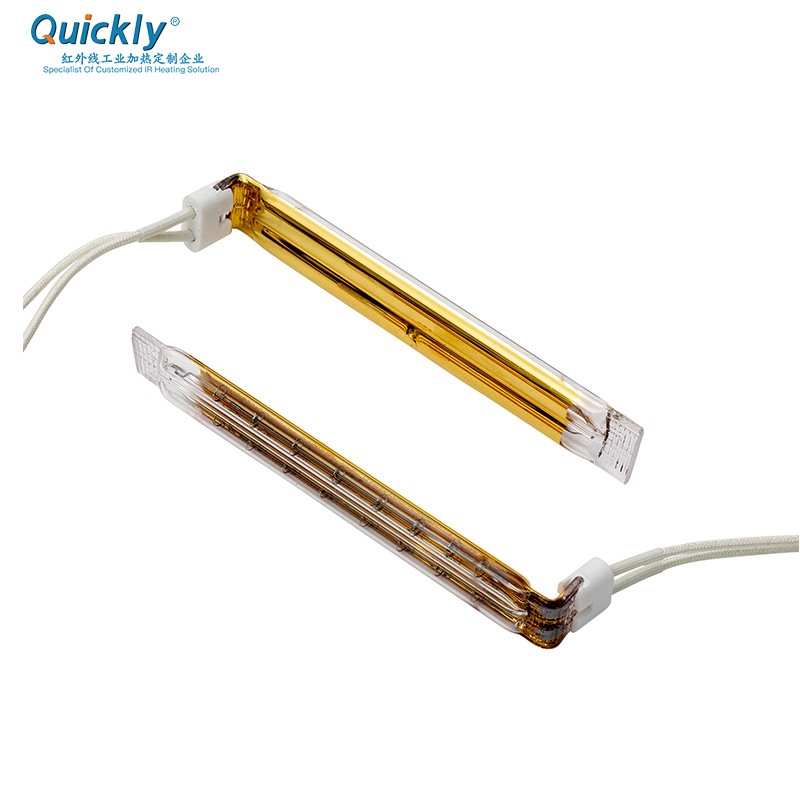

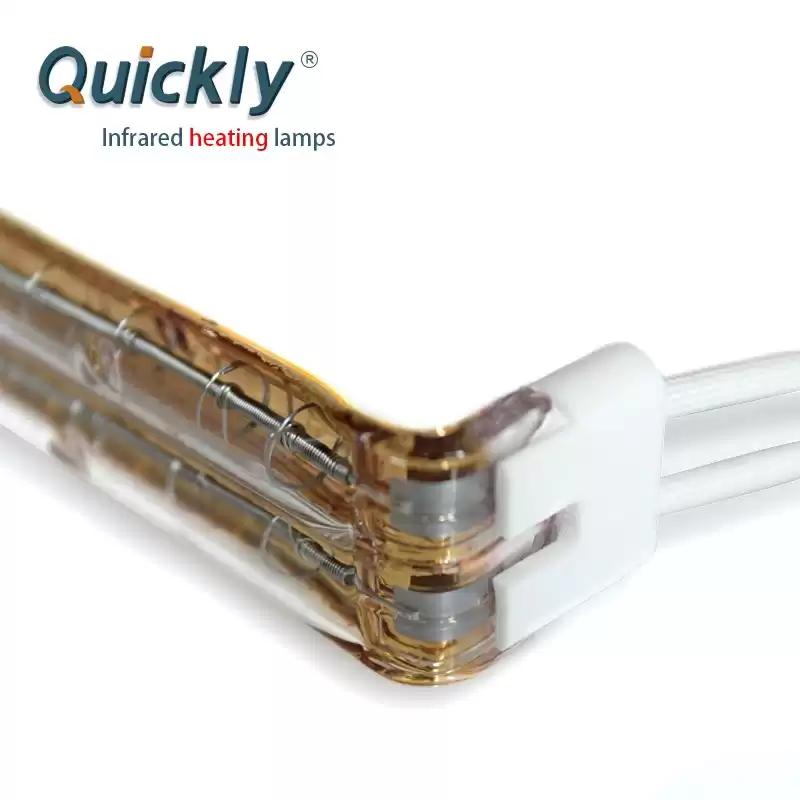

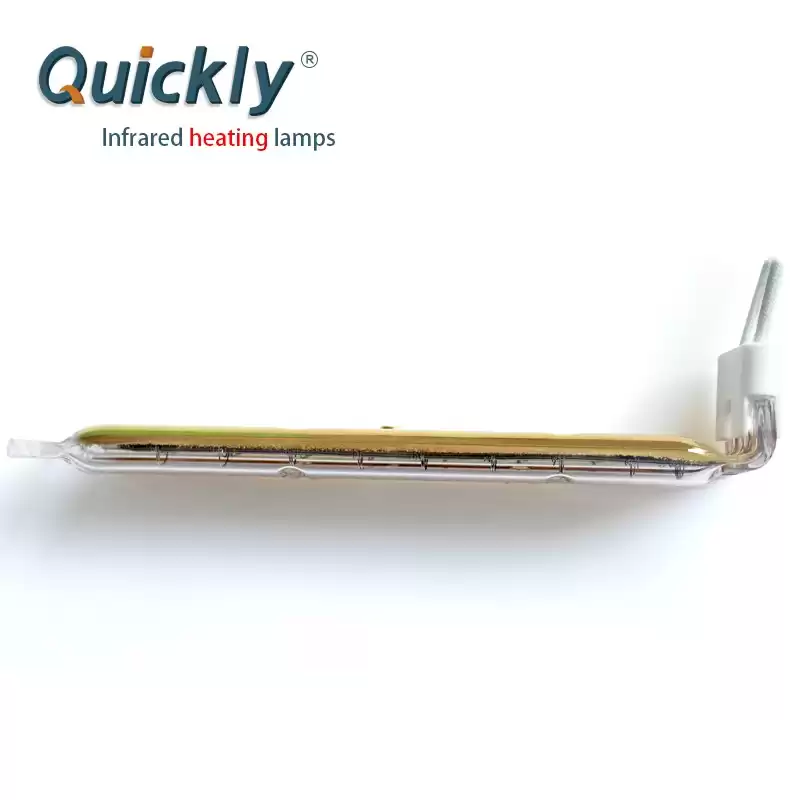

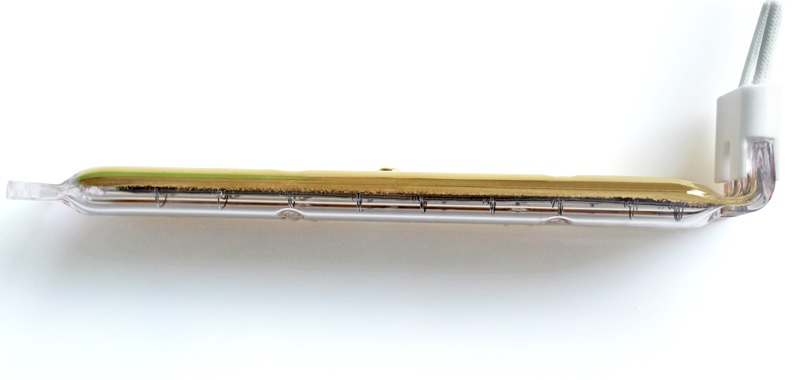

Gold Reflector Double Tube Quartz Infrared Emitters for Woodworking Edge Banders
In order to prevent the too rapid cooling of the adhesive, the heating module on edgebanders is there for the heating of the workpiece edge before the edgebanding process to reactivating glue. Short wave infrared heaters have been widely taken as the heating element in the preheating zone. Short wave IR heating lamps focus heat exactly where it’s needed, heat quickly and precisely controllable, efficient use of energy, easy integration into existing production facilities
Quick Details
| Tube Diameter |
18*9mm |
23*11mm |
33*15mm |
| Overall Length |
80-1500mm |
80-3500mm |
80-4000mm |
| Heated Length |
30-1450mm |
30-3450mm |
30-3950mm |
| Tube Thickness |
1.2mm |
1.5mm |
2.2mm |
| Max Power |
150w/cm |
180w/cm |
200w/cm |
| Connection Type |
lead wire at one or two sides |
| Tube Coating |
transparent, gold coating, white coating |
| Voltage |
80-750v |
| Installing Position |
Horizontal/Vertical |
| Average working life |
5000 hours |
| Color temperature |
2400~2500 K |
| IR wavelength |
0.75-1.4um |
| heating filament |
tungsten |
| Response time |
1 second |
| Cable Type |
1. silicone rubber cable 2.Teflon lead wire 3. naked nickel wire |

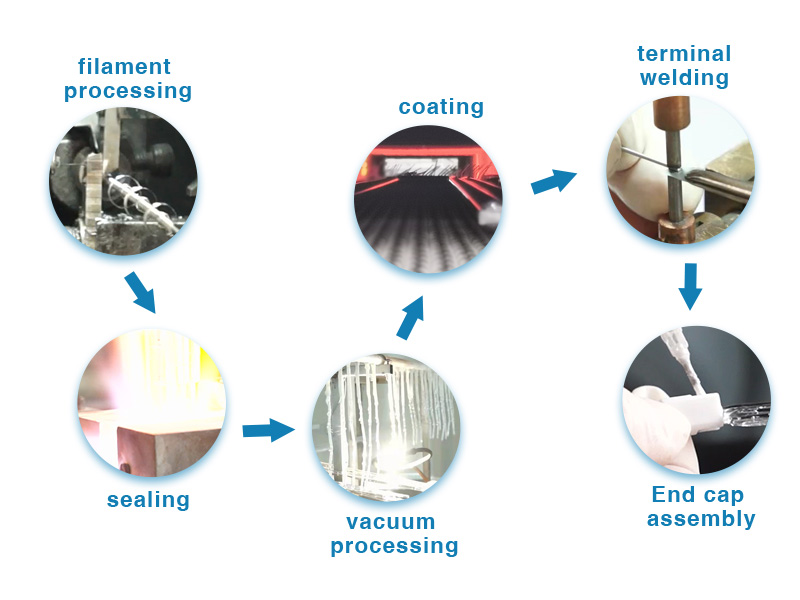

The main processing steps of vacuum infrared emitters

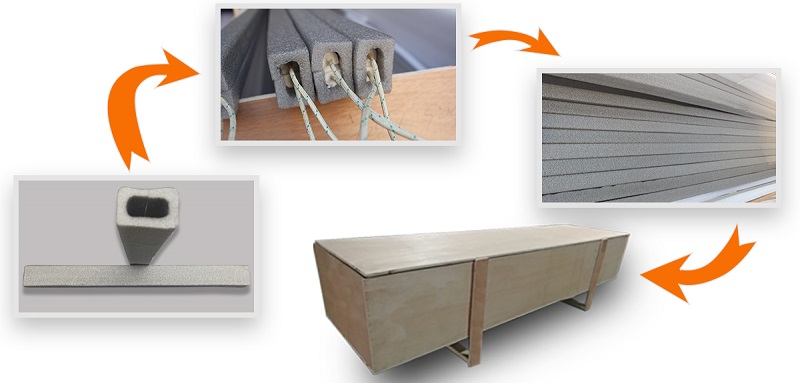

Safe package to protect lamps from being broken during shipping
FAQ
1. how to place the order?
Let us know your required lamp specifications including lamp type, diameter, length, power, voltage, and reflector...then we send you the
quotation, after payment, production will be started, and after finished, they will be shipped to your side.
2. could you supply clamps for lamp installation?
Yes, we will provide mounting clamps/clips for clients, and the corresponding clamps quantity with purchased lamps is supplied freely by us.
3. Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs but can be highly competitive on large orders as well.
4. How does your factory do quality control
" Quality is a priority", we always keep paying more attention to QC from the material purchasing to the lamps' packing. Our product has gained CE, ROHS, and ISO9001.

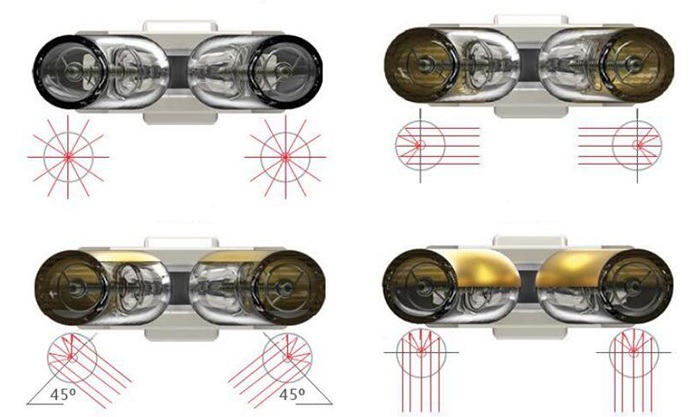

5. Why coating on the quartz tube surface
QUICKLY offers infrared emitters coated with gold and white reflector, they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently, the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output.
