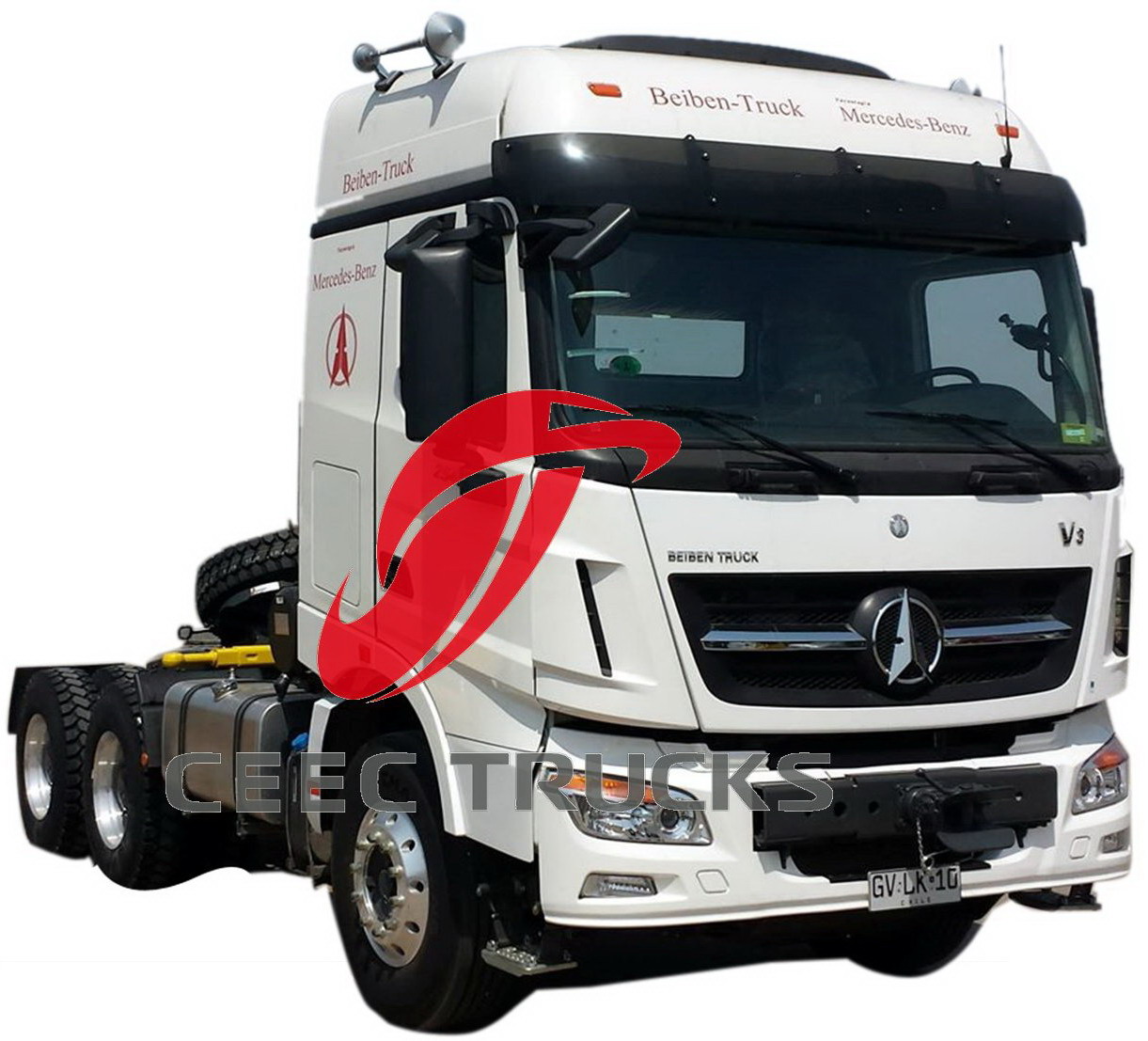

Beiben V3 2538 trailer tractor truck also can be called Beiben 6*4 tractors, north benz 2536 towing truck and beiben 2536 tractor head trucks, provided by authorized beiben heavy truck company supplier CEEC TRUCKS, which has plant which located in Hubei Suizhou, all beiben tractor trucks use Germany Mecedes Benz technology and heritage are manufactured to the highest international standards and the strictest military quality controls.

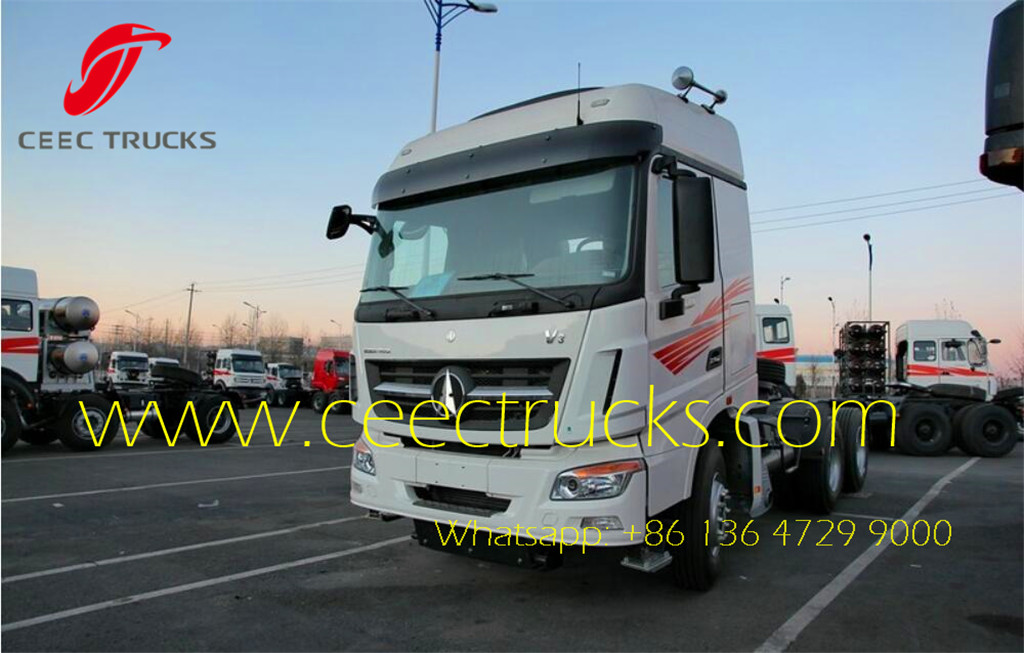

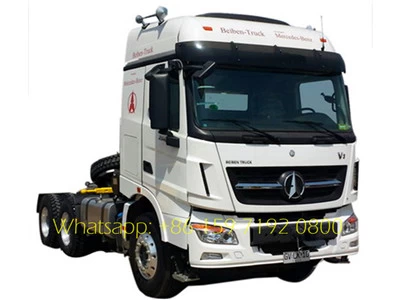

Beiben 10 wheel V3 prime mover
Kenya, Tanzania, Algeria, Mozambique Customer choose military beiben 2536, 2636 towing trucks features:
★ CEEC TRUCKS are authorized Beiben 2538 tractor trucks, north benz 2536, 2538 prime movers supplier in China
★ Beiben trucks and Mercedes Benz trucks share many features such as HL7, HD7 and VL4 axles used in the Actros and Atego models.
★ The price for Beiben 2538 towing trucks are relatively at least 10% lower than European and Asian competitors
★ Beiben truck and benz trucks share familiar gearboxes - ZF and Fuller Fast. mainly 9-shift manual gearbox and 12-sfhit manual transmissions
★ Mercedes Benz and Weichai WD615, WP10 and WP12. They comply with Euro 2, 3 and 4; have displacements of 10 and 12 liters and HP of 270 to 480.
★ Bosch Common Rail injection, the Euro 2 with linear pump, motor and brake valve MAN Exhaust (Jack-Brake), among other qualities.
Similar key words: beiben V3 2538 tractor truck, north benz 2538 V3 prime mover, beiben 2538 V3 towing truck, beiben 2538 V3 trailer truck. kenyabeiben 2538 tractor truck, tanzania beiben 2538 V3 tractor truck, china beiben 6*4 drive v3 tractor truck supplier, baotou beiben V3 tractor truck manufacturer.africa beiben NG80 tractor truck

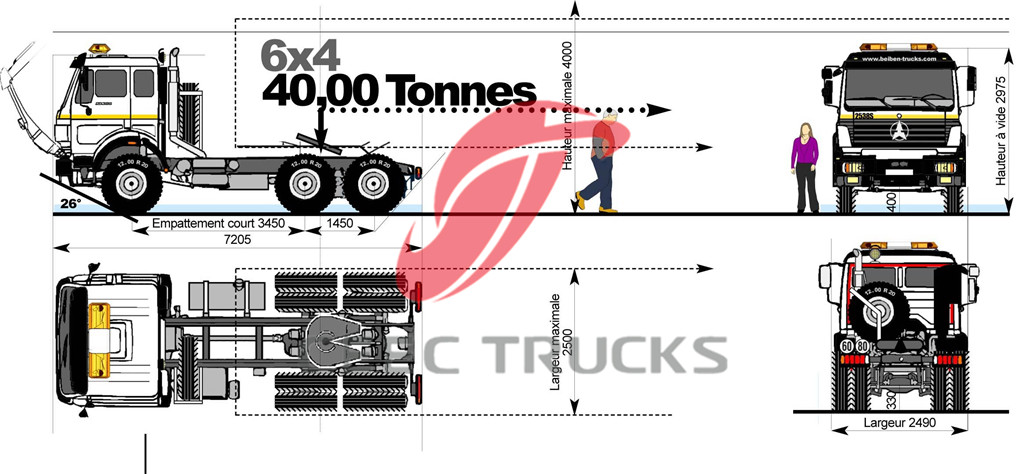

| Dimension
|
7136*2500*3600mm
|
| Approaching angle/Departure angle
|
16/60°
|
| Overhang(front/rear)
|
1515/825mm
|
| Wheel base
|
3450+1450mm
|
| Max speed
|
110km/h
|
| Curb weight
|
8800kg
|
| Max towing weight
|
40000kg
|
| Max loading on fifth wheel, Permitted(kg)
|
16070kg
|
| Slope climbing capability
|
Max.40%
|
| Engine
|
Model
|
WP10.380，water-cooled, four-stoke, exhaust brake, direct injection, turcharged intercooled, ECU Common Rail
|
| Displacement
|
9.876L/Diesel
|
| Stroke
|
126/155mm
|
| Max. power
|
250/2100 (kw/rpm)
|
| Max.torque
|
1780/1200-1500（Nm/rpm）
|
| Emission stantard
|
EuroIII
|
| Fuel tanker capacity
|
400L
|
| Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting
|
| Gearbox
|
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
| Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
|

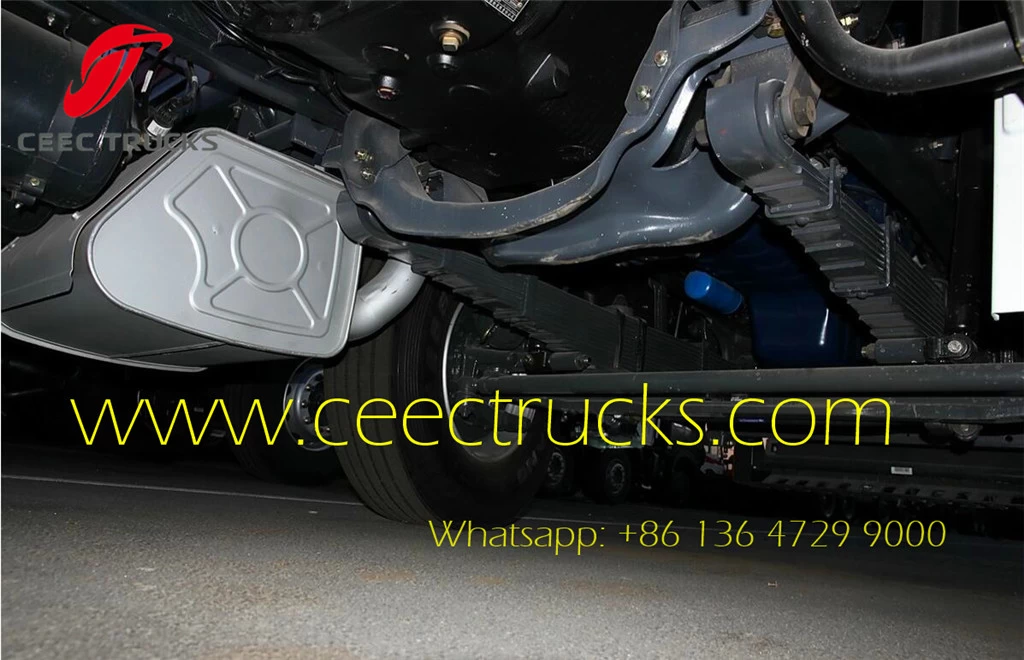

| Suspension system
|

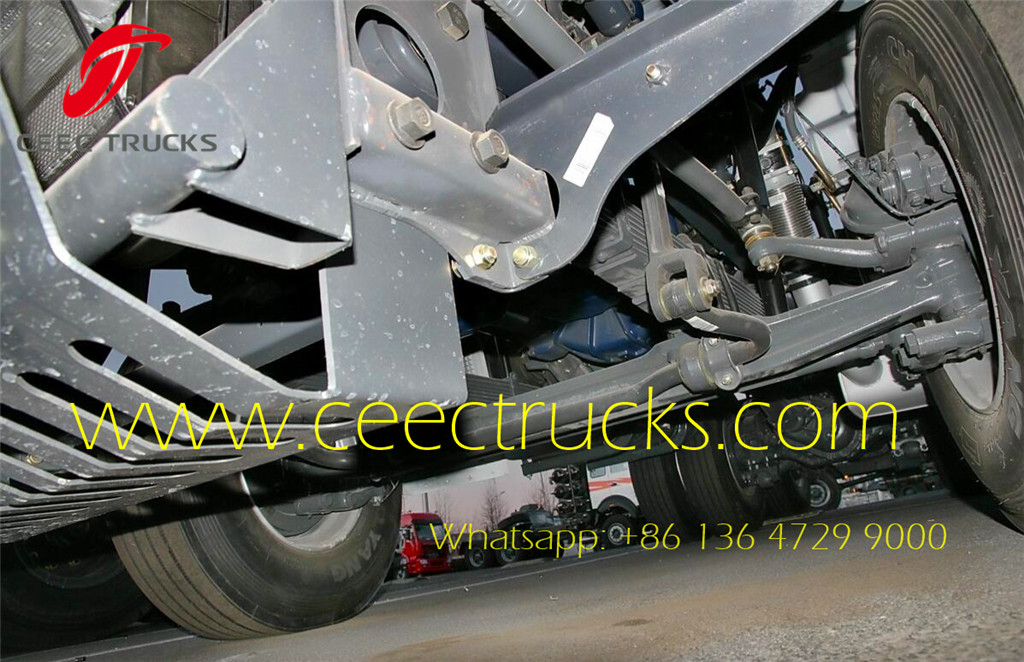

Front
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
|

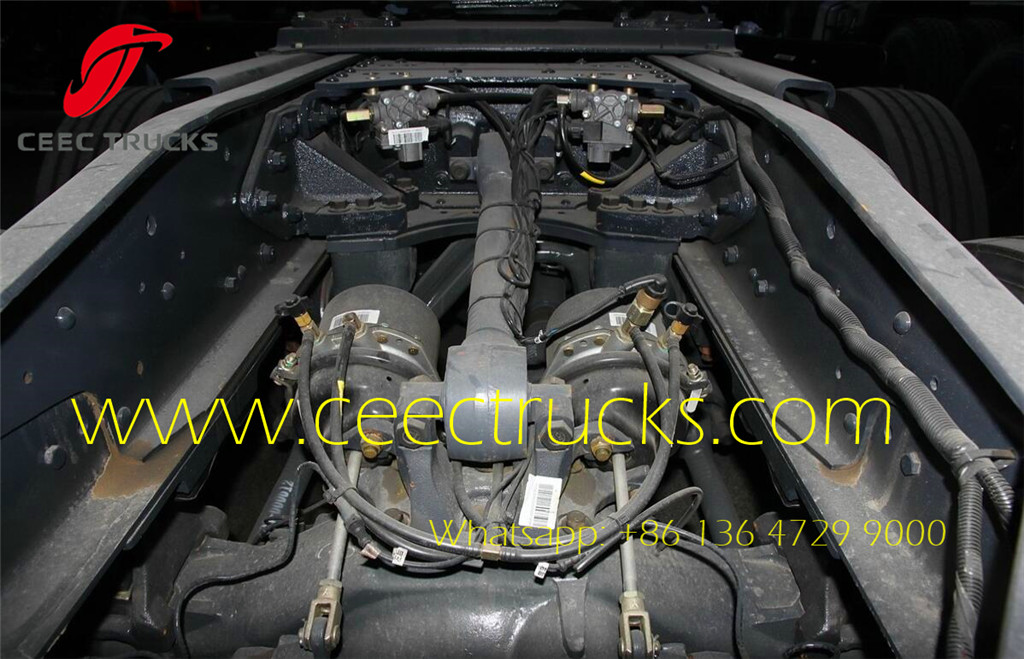

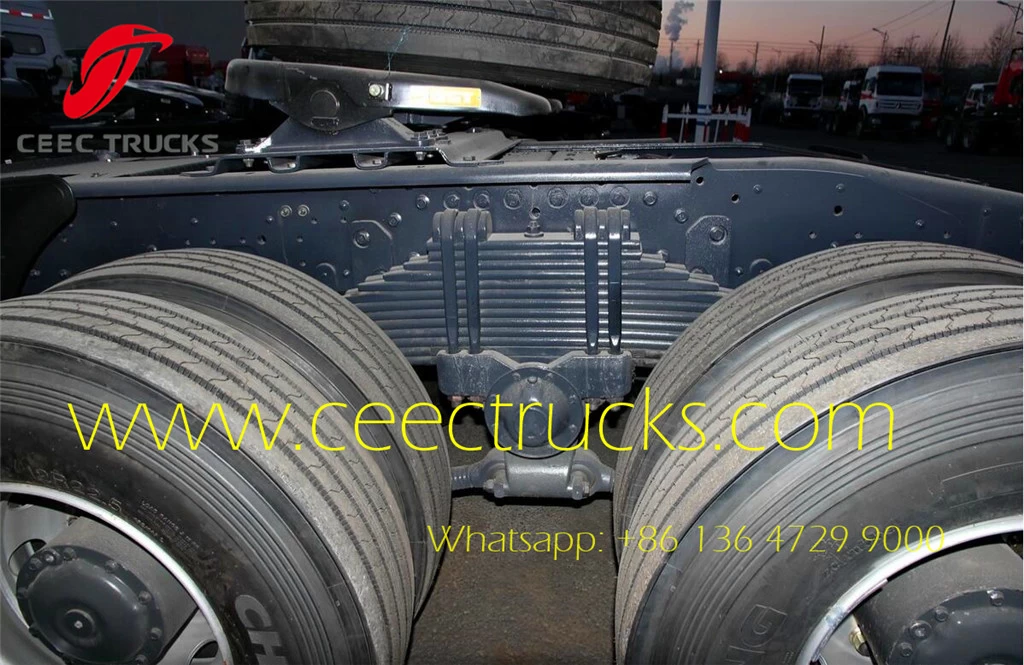

| Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
ZF8098 ,whole circulation in ball, hydraulic booster
|
| Frame
|
Fish belly shape, variable width, variable sections
|
| The Fifth wheel
|
Model
|
JOST ∮90 single direction
|
| Height of fifth wheel(mm) (unload)
|
1410
|
| Radius of front gap (mm)
|
2300
|
| Radius of rear slew (mm)
|
2600
|
| Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|

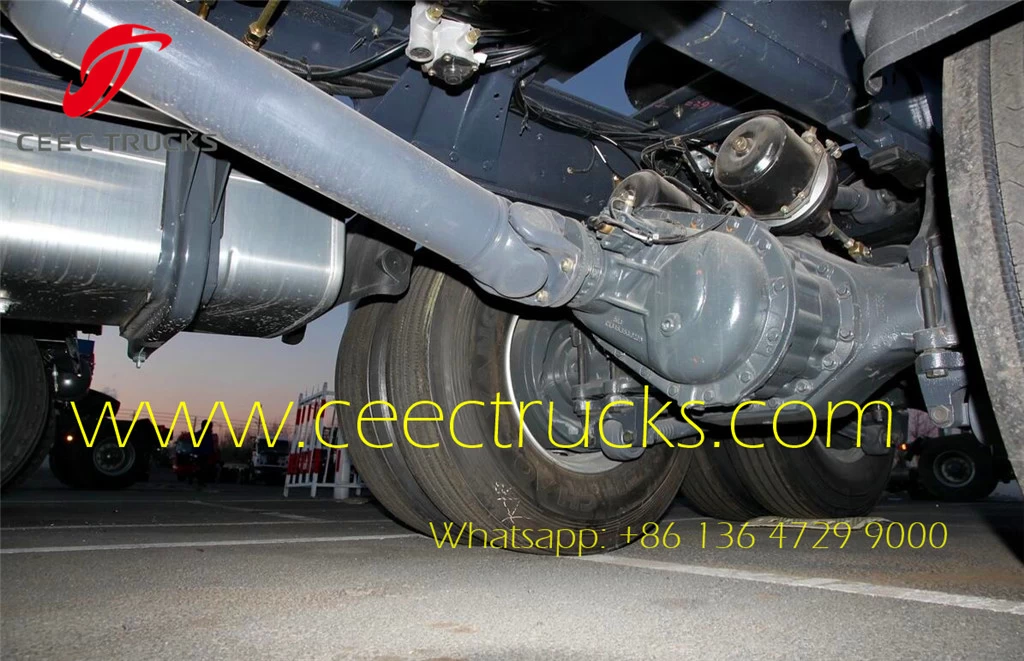

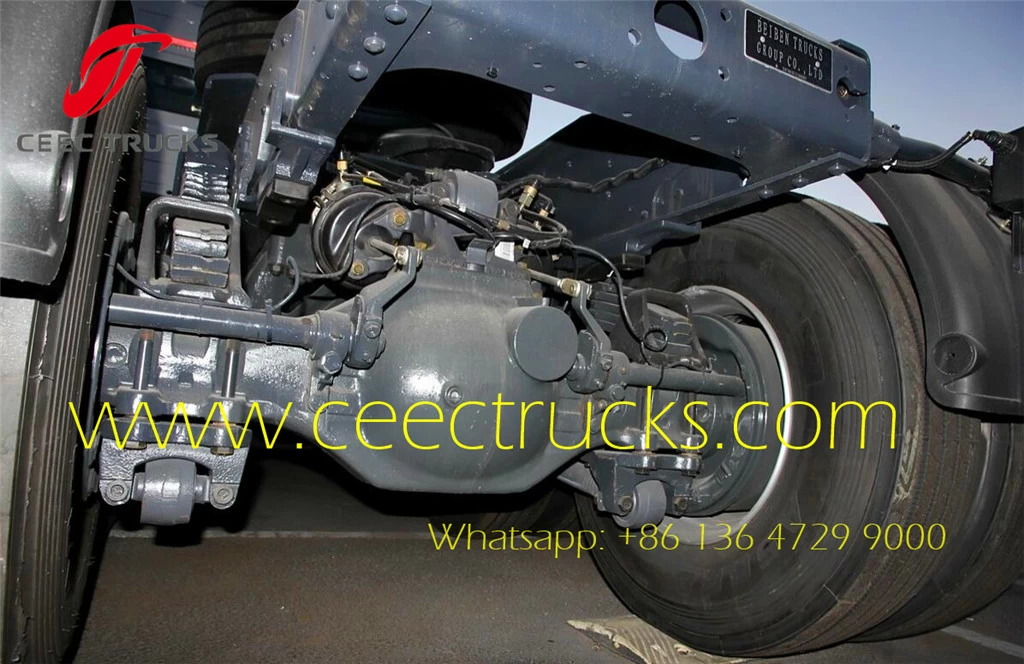

| Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
| Tyre
|
12.00-R20
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|

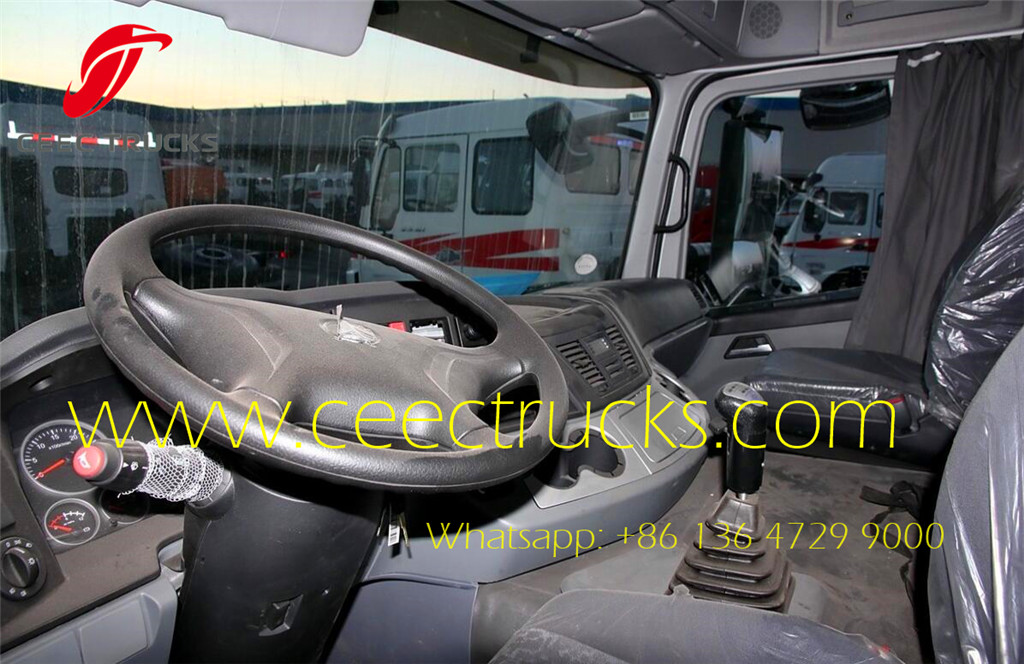

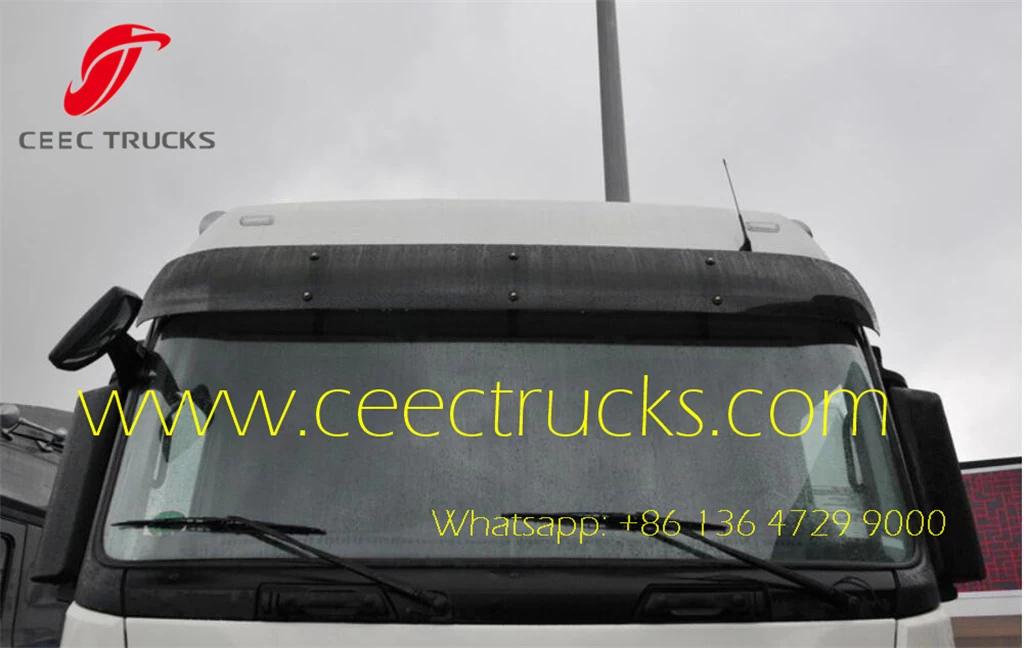

| Cabin
|

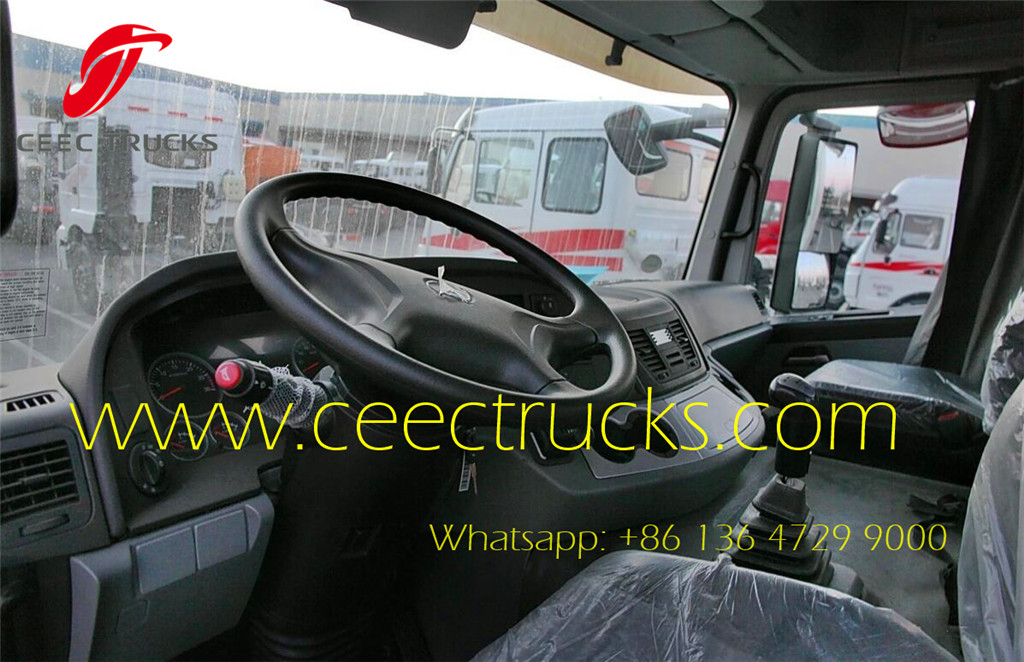

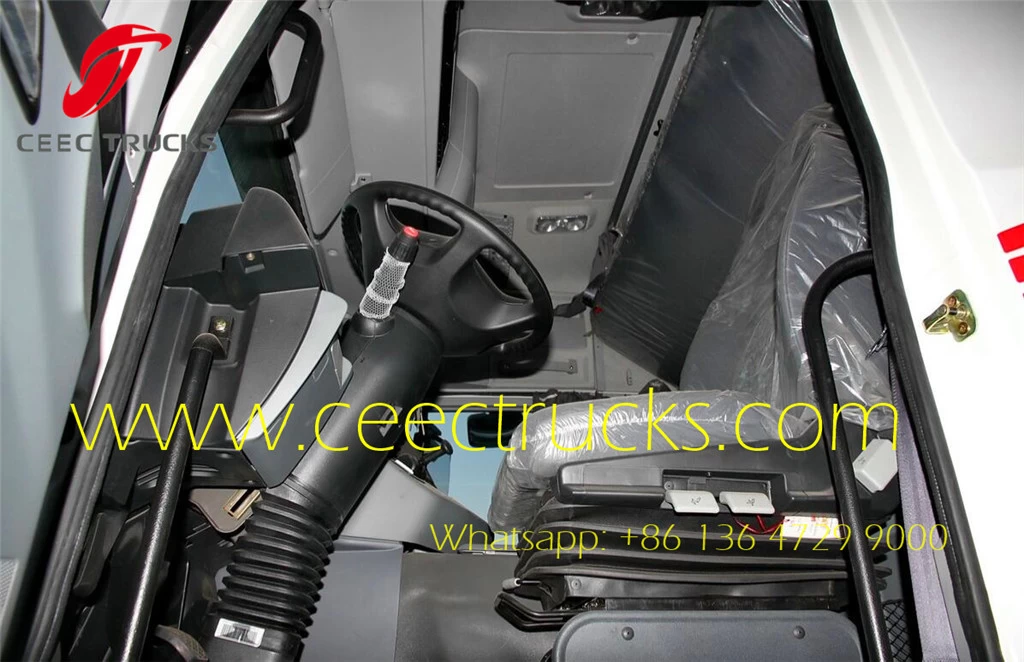

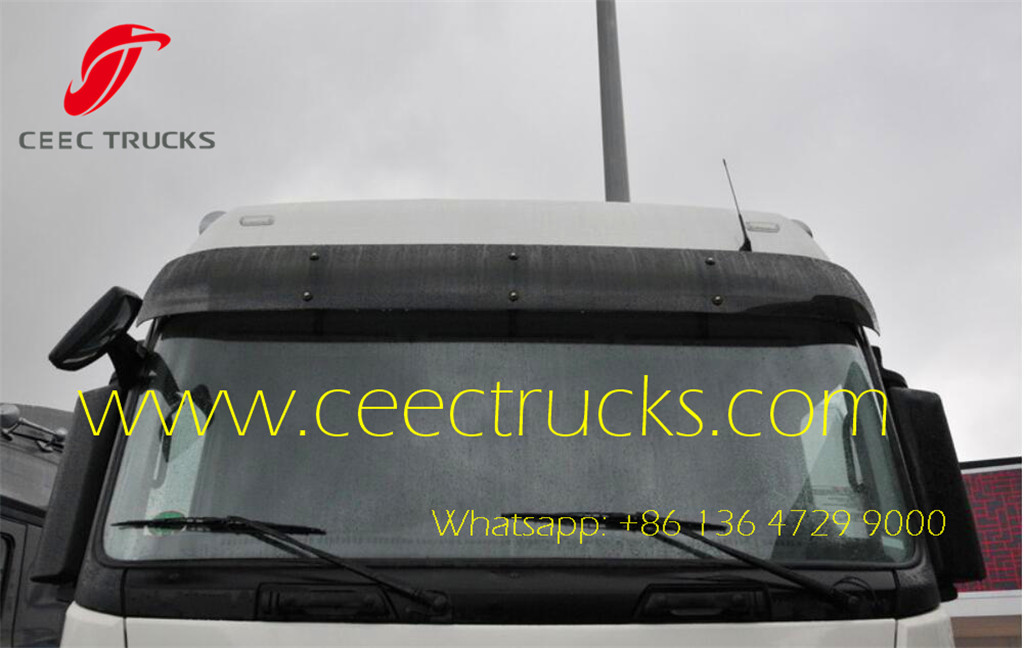

V3 Long-high roof cabin with double sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|
