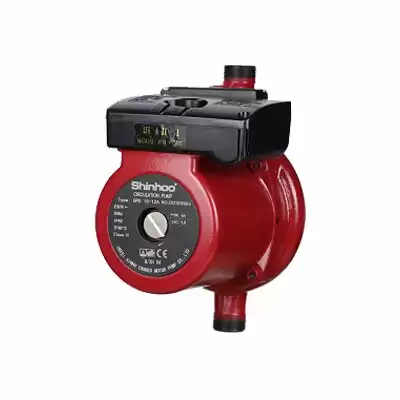

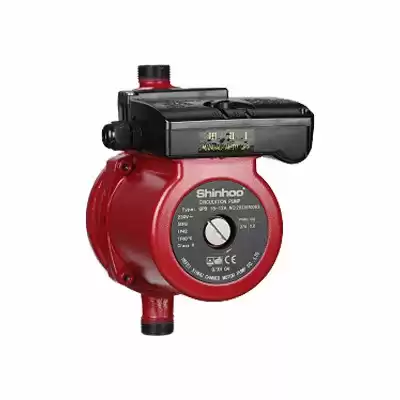

Shinhoo GPD15-12A is a domestic booster designed for pressure
boosting of drinking water supplied from an external source in residential
homes. The booster pumps increase the pressure of domestic water to make the
required pressure available at showers, taps and other tapping points.
Port-to-port : This pump has an inlet and outlet port of 3/4. The pressure rating of the
pump corresponds with PN 10 and a port-to-port length of 160 mm.
The GPD15-12A provides the comfort of constant water pressure with automatic
start and stop. This is controlled by the integrated flow switch ensuring optimal
start/stop of the booster pump according to demand. The design is robust and
built upon corrosion-free materials and catachresis-coated cast iron pump
housing to ensure a long lifetime. The pump is a canned rotor pump type where
pump and motor form an integral unit without shaft seal. This pump must always
be installed with horizontal motor shaft.
-
Integrated
flow switch: Automatic start and stop according to demand
-
Low
noise level
-
Easy
installation: plug and pump compact inline booster
-
Integrated
non-return valve
-
Improved
corrosion resistance
-
Copper
connectors in the delivery
|
|
Model: GPD15-12A-270
Power: 270w
Voltage: 230w
Frequency: 50Hz

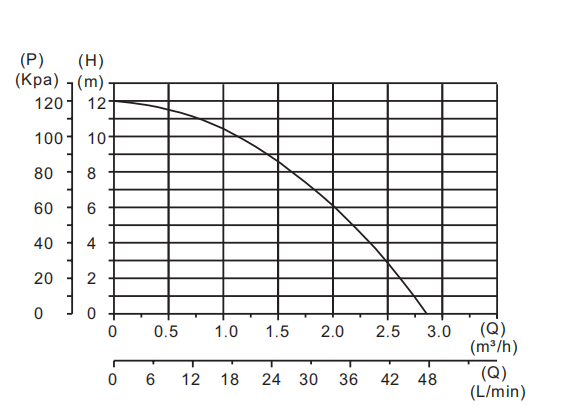

Max Flow: 2.7m3/h
Max Head: 12m
Rated Head: 10m
Diameter: 15mm
IP Grade: IP42
Temperature: 2 -60℃
