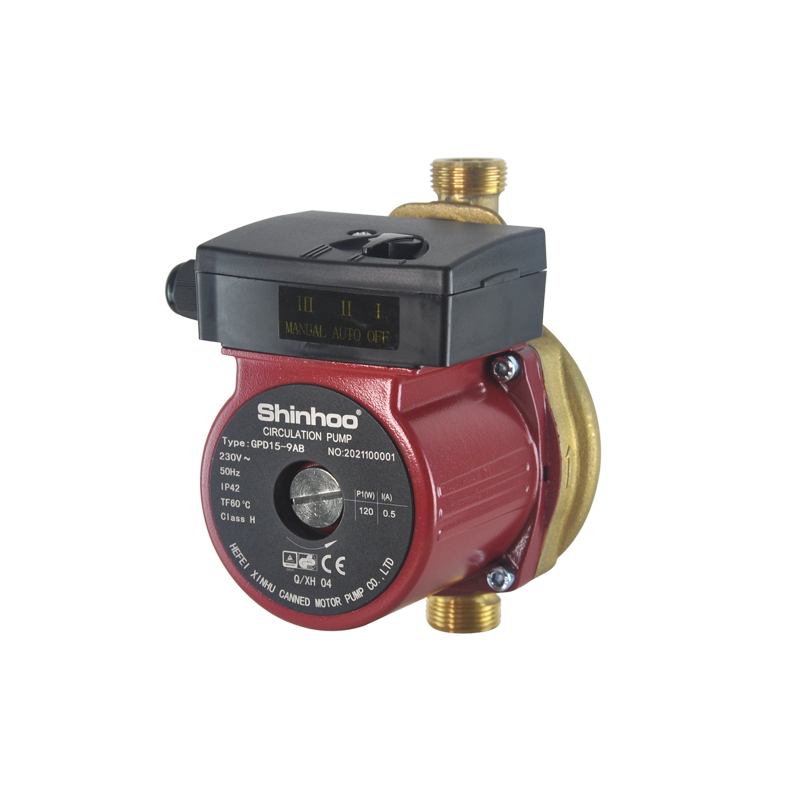

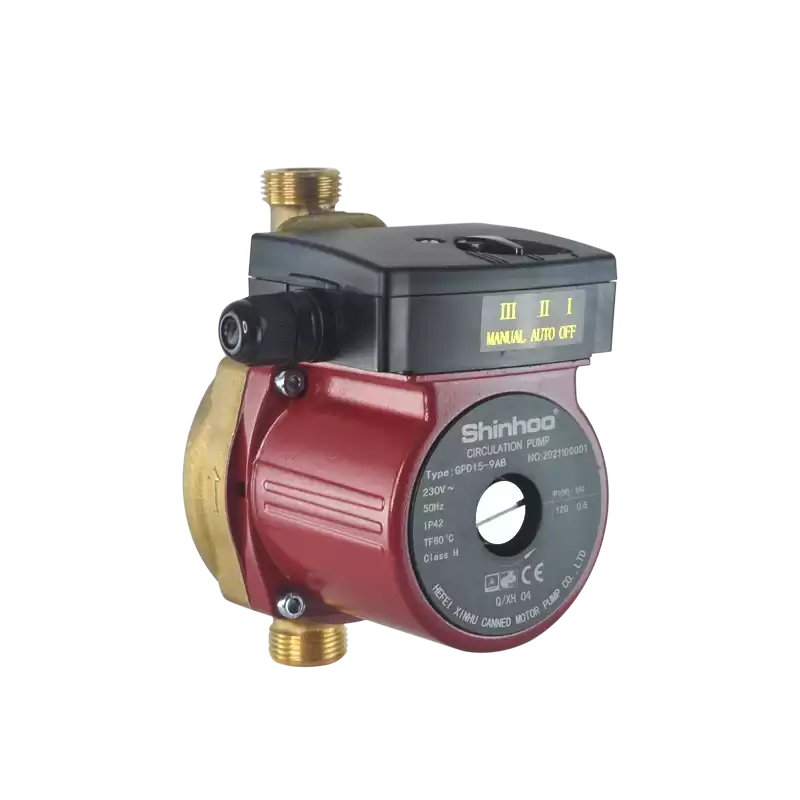

GPD15-9AB Boosting Pump

Shinhoo GPD15-9AB  is a domestic booster designed for pressure boosting of drinking water supplied from an external source in residential homes. The booster pumps increase the pressure of domestic water to make the required pressure available at showers, taps and other tapping points.

Port-to-port l.: This pump has an inlet and outlet port of 3/4. The pressure rating of the pump corresponds with PN 10 and a port-to-port length of 160 mm.
The GPD15-9A provides the comfort of constant water pressure with automatic start and stop. This is controlled by the integrated flow switch ensuring optimal start/stop of the booster pump according to demand. The design is robust and built upon corrosion-free materials and catachresis-coated cast iron pump housing to ensure a long lifetime. The pump is a canned rotor pump type where pump and motor form an integral unit without shaft seal. This pump must always be installed with horizontal motor shaft.

Model:   GPD15-9AB

Power:  120w

Voltage: 230w

Frequency: 50hz

Max Flow: 1.78m3/h

Max Head: 9m

Rated Head: 7.5m

Diameter:  15mm

IP Grade: IP42

Temperature: 2 -60℃
