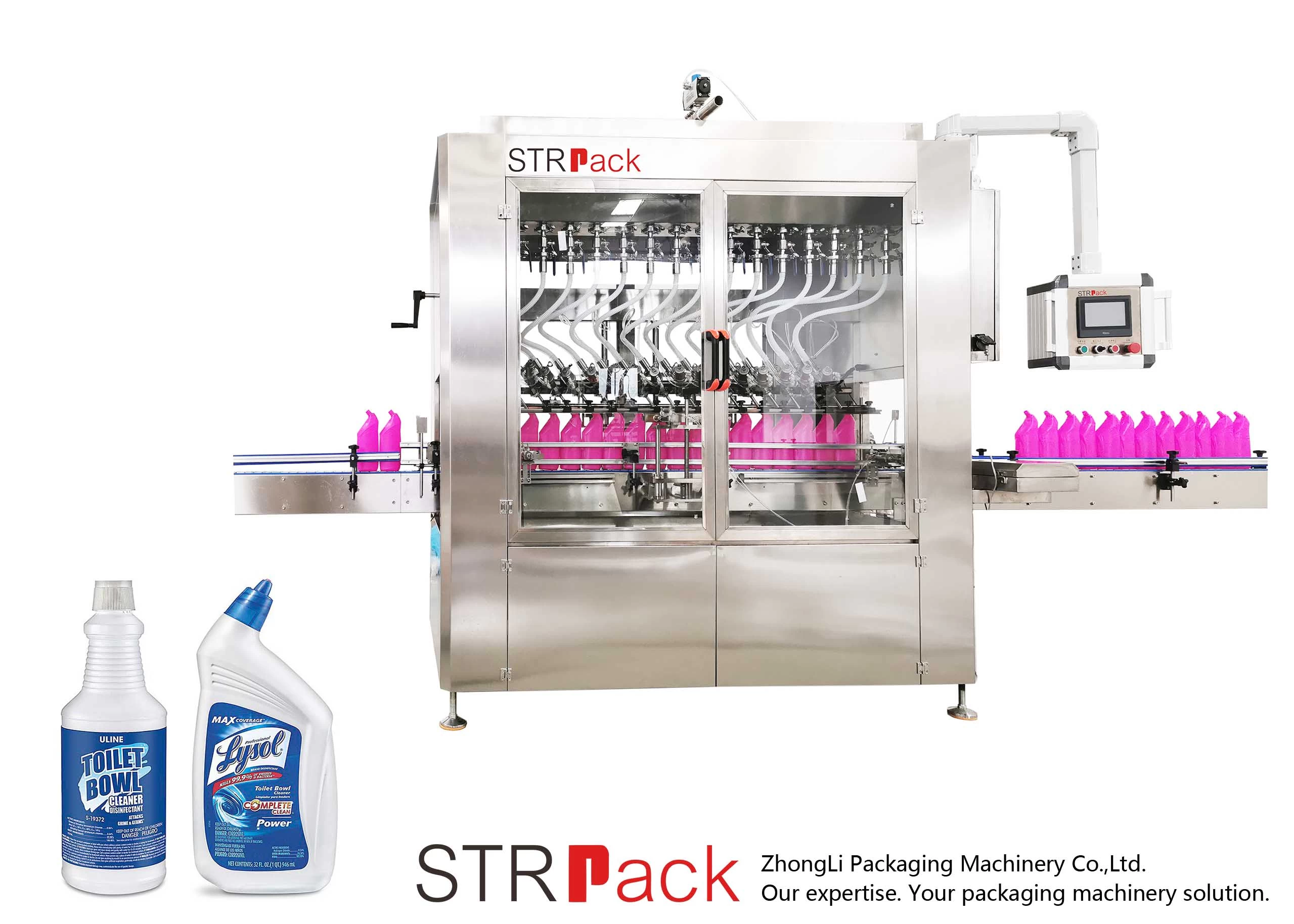

Gravity Type Angled-neck Bottle Liquid Filling Machine

This Bottle Liquid Filling Machine is gravity type filling machine which is suitable for filling thin fluid.

The machine is made by in-line structure , filling head quantity can be custom-made according to different production capacity such as 6/8/10/12/16 /20 heads.


  • Brand NameSTRPACK
  • CertificationISO CE
  • Warranty:2 Years

Gravity Type Angled-neck Bottle Liquid Filling Machine


Brief Introduction:

This Filling Machine is gravity type filling machine which is suitable for filling thin fluid.

The machine is made by in-line structure , filling head quantity can be custom-made according to different production capacity such as 6/8/10/12/16 /20 heads.

The filling volume is controlled by filling time, with weight feedback of each filling nozzle to PLC to assure good filling accuracy.

It is economical filling machine for filling product like glass cleaner, wine, vinegar , water, juice etc in foodstuff, cosmetic and daily chemical industries.


Features:

◎Made by high quality 304 Stainless steel, it is durable.

◎316 stainless steel product contact parts is available for optional according to product features.

◎Flexible machine for filling 100-5000ml

◎Liquid receive tray is available in case any dripping from filling nozzle.
◎Diving filling head is available for optional for filling foamy liquid.

◎No bottle no fill.
◎Controlled by PLC and operation through touch screen.
◎Easy change over to different size bottles.
◎Quick-install connecting parts , it is easy to disassemble and clear machine.


Main Parameter:

Model

Unit

STRFG

Nozzle Number

PCS

6

8

10

12

Filling volume

Ml

100-5000

Production capacity

Bottle/h

1000-3000pcs(Depends on filling volume)

Quantitative error

%

100-1000ml:≤±2% , 1000-5000ml:≤±1%

Voltage

V

AC220V 380V ±10%

Consumed power

KW

1.5

1.5

1.5

1.5

Air pressure

MPA

0.6-0.8Mpa

Air consumption

M3/min

0.8

1

1.2

1.2


Gravity Type Angled-Neck Bottle Liquid Filling Machine



After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
