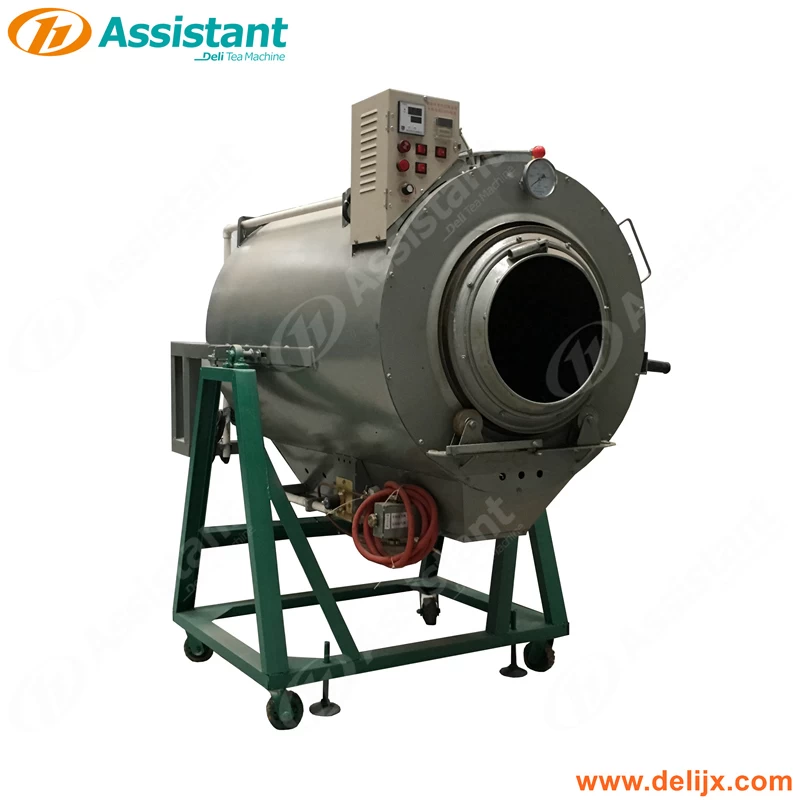

Green Tea Leaves Fixation Processing Equipment 6CST-70

DL-6CST-70 green tea leaves fixation machine can use 220V and 380V, the tea fixing machine use gas heating, inner diameter 70cm, it can process about 50kg tea leaf per hour.

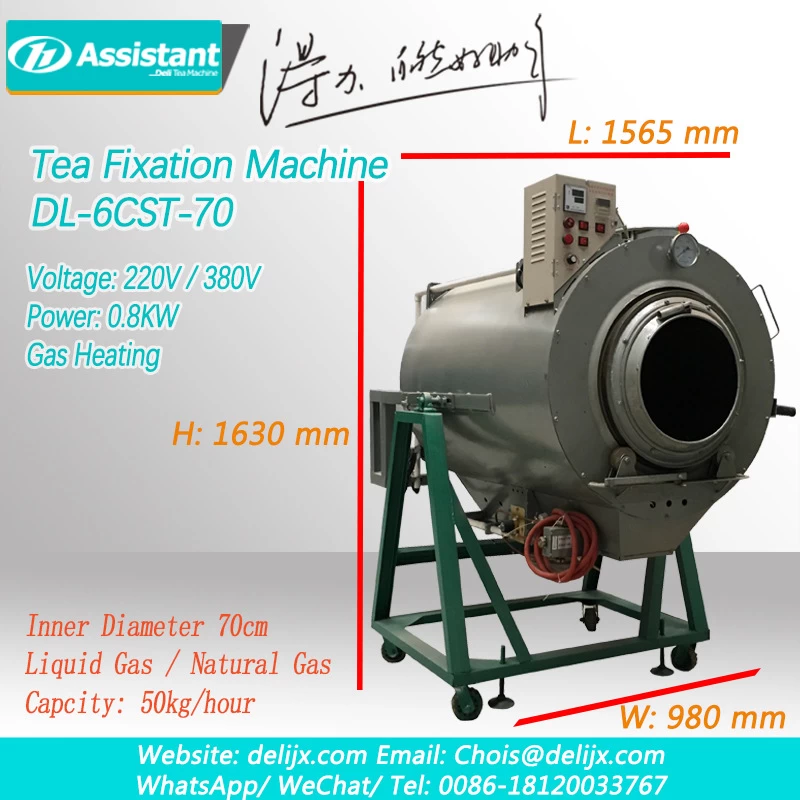

  • Dimension980×1565×1630 mm
  • Voltage220V / 380V
  • Temperature controlAutomatic control
  • Maximum temperature350 ℃
  • Fuel typeGas
  • Rotating speed5-37 rpm
  • Barrel length1000 mm
  • Barrel diameter700 mm
  • Efficiency50 kg/h


Description:

1. Excellent heat insulation, heat preservation and energy saving;
2. Using calcium silicate board, increasing the heat preservation effect and meeting the food hygiene requirements;
3. Increased insulation of the front plate of the drum;
4. Intelligent temperature control system, easy to operate and precise control;
5. Hand and self-integration control, double guarantee;
6. Large feed inlet, easy to feed, and faster discharge. The dryness of the products coming out before and after is more uniform, the taper size is longer, and the material is not dropped;
7. The inner cylinder adopts a steel plate with a thickness of 2.5mm to prevent the deformation of the cylinder at high temperature. The work can store energy, less heat loss, smaller temperature change and more energy saving;
8. Use a controlled water vapor discharge system to save energy.

Application:

This small tea panning machine DL-6CST-70 use gas as fuel, can use liquid gas and natural gas, this tea panning machine suitable for small tea factory and home use, suitable for processing high-quality fine tea.

It can also be used in tourist areas, for tourists DIY processing tea, low energy consumption and high safety, it's the good choice for you !

The machine is small and flexible, suitable for small and medium-sized tea processing plants (fine tea processing and production), using a rotating drum cylinder, tea leaves are more evenly fired, tea leaves are heated without dead ends, with pure handwork Unmatched uniformity and breathability, it is an ideal machine for the production and processing of fine tea. It is an alternative equipment for manual firewood wok.

Parameter:

DL-6CST-70 green tea leaves fixation processing machine specification:

Model DL-6CST-70
Dimensions 980×1565×1630 mm
Voltage 380/220 V/Hz
Inner barrel diameter 700 mm
Inner barrel length 100 mm
Drive motor Power 0.75 KW
Speed 1400 rpm
Voltage 220 V
Exhaust fan Power 85 W
Speed 2200 rpm
Voltage 220 V
Barrel speed 5-37 rpm
Heating type Gas
Efficiency 50 kg/h

The above data is based on fresh tea leaf water content of 75-80%.

Details:

DL-6CST-70 green tea fixing machine decomposition diagram:

Tea Leaves Fixation Processing Equipment, Green Tea Fixing Machine China Factory 6CST-70

Electric control panel

Heat dissipating switch

Thermometer

Handle

Outer barrel

Balance bolt

Inner barrel

Shock absorber rod

nylon wheel

Combustion zone

Ignition switch

Support frame

Advantage:

Tea Leaves Fixation Processing Equipment, Green Tea Fixing Machine China Factory 6CST-70
Integrated multifunctional electric control box
The first intelligent temperature control system in tea machinery industry
Tea Leaves Fixation Processing Equipment, Green Tea Fixing Machine China Factory 6CST-70
Tea Leaves Fixation Processing Equipment, Green Tea Fixing Machine China Factory 6CST-70
Tea Leaves Fixation Processing Equipment, Green Tea Fixing Machine China Factory 6CST-70
Copper core driving motor Gas-fired igniter
Shock absorber cylinder

Tea Leaves Fixation Processing Equipment, Green Tea Fixing Machine China Factory 6CST-70
Tea Leaves Fixation Processing Equipment, Green Tea Fixing Machine China Factory 6CST-70
"T" type gas burner
Calcium silicate board insulation layer

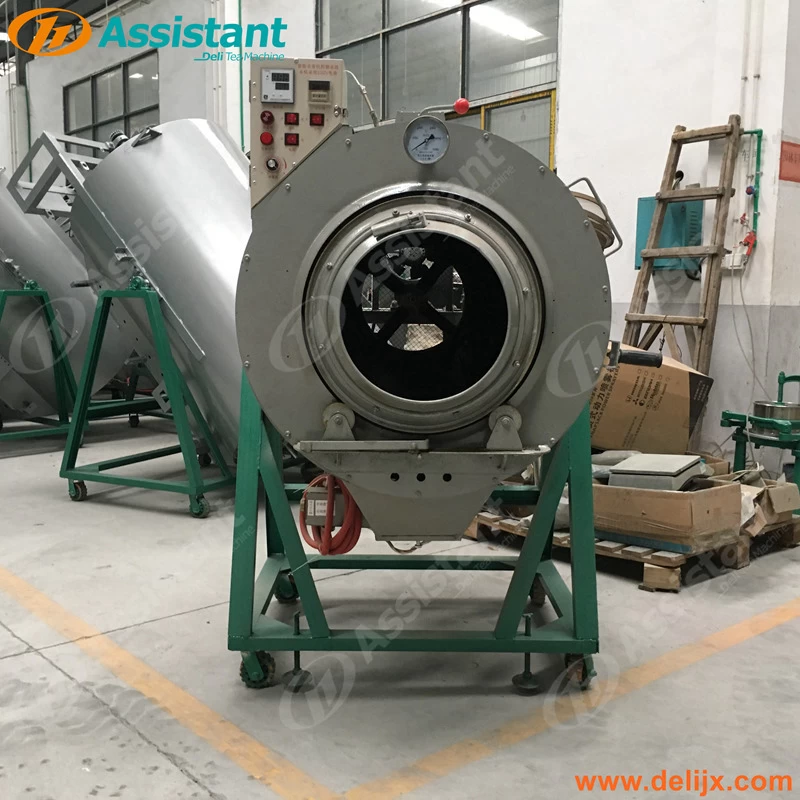

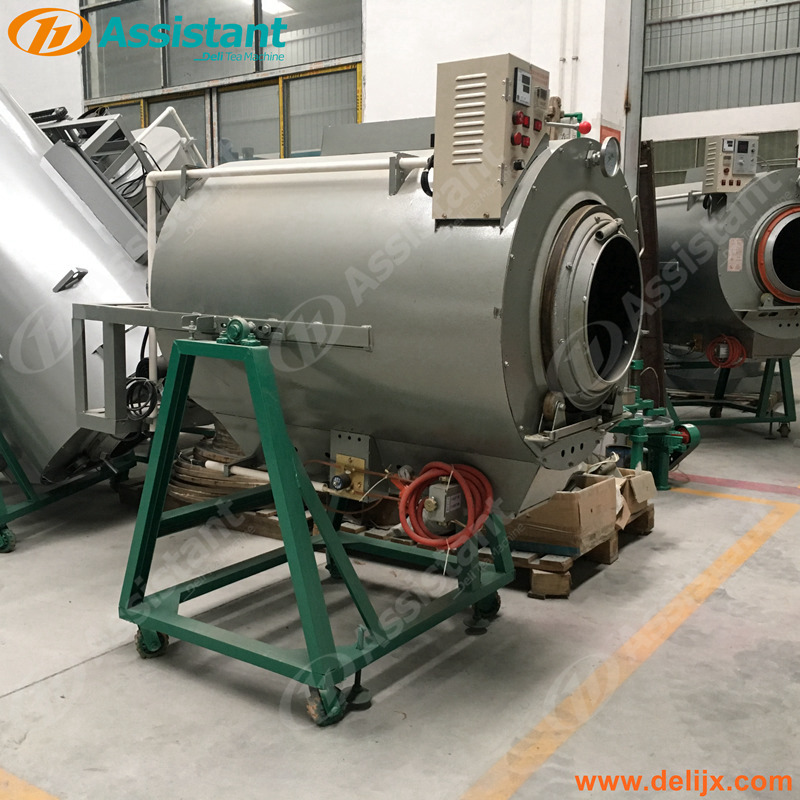

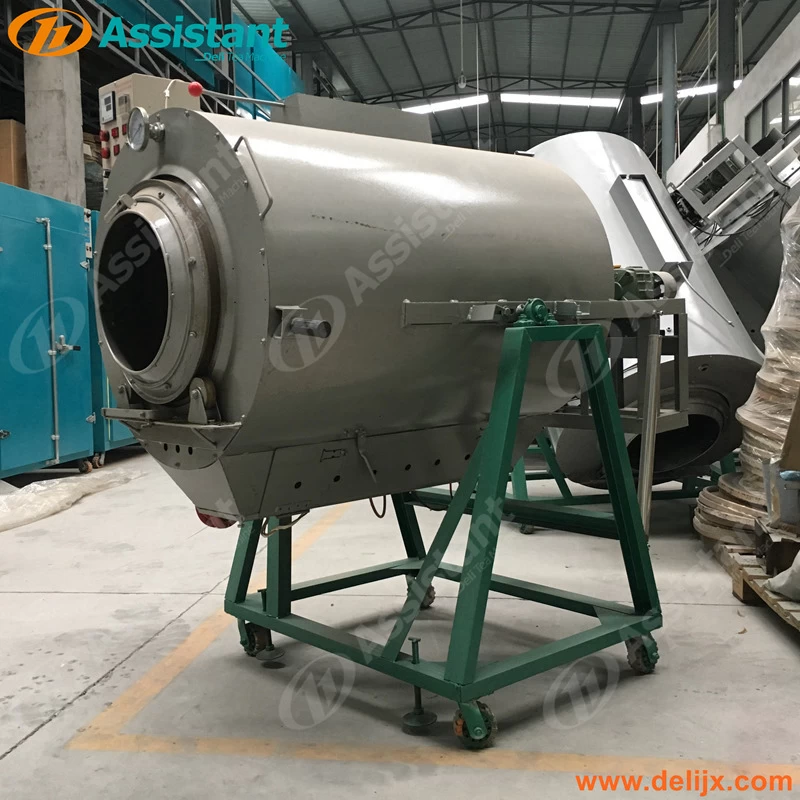

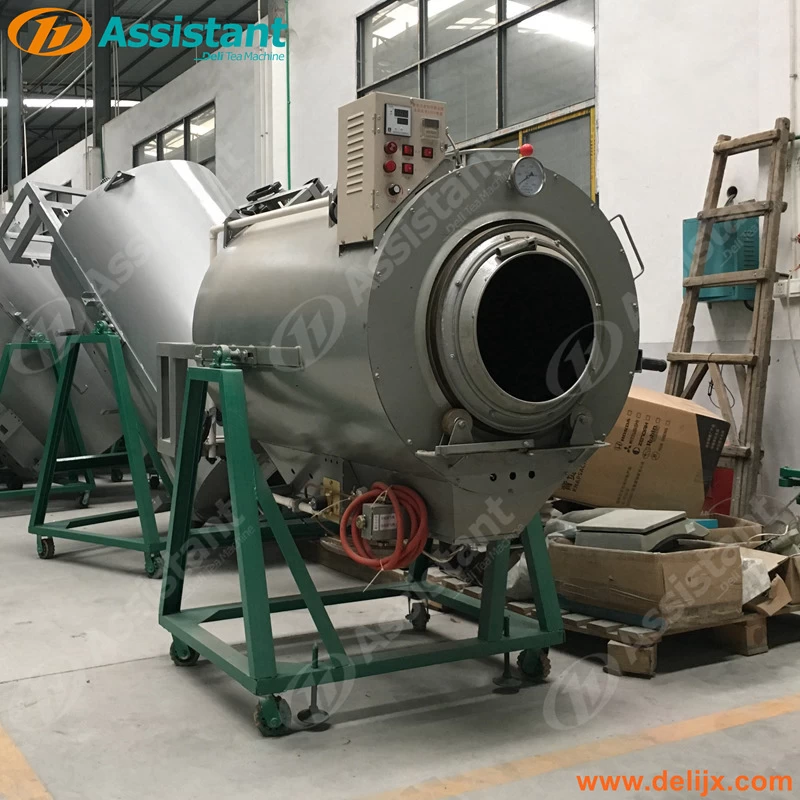

DL-6CST-70 green tea fixation fixing machine photos:

Tea Leaves Fixation Processing Equipment, Green Tea Fixing Machine China Factory 6CST-70
Tea Leaves Fixation Processing Equipment, Green Tea Fixing Machine China Factory 6CST-70
Tea Leaves Fixation Processing Equipment, Green Tea Fixing Machine China Factory 6CST-70
Tea Leaves Fixation Processing Equipment, Green Tea Fixing Machine China Factory 6CST-70
Tea Leaves Fixation Processing Equipment, Green Tea Fixing Machine China Factory 6CST-70
