Solar panel ground mounts
Solar PV ground mounted solar rack is made of 100% aluminum, which could be used together with ground screw or concrete Foundation.
A range of ground mounting structures designed for ease of construction, all weather conditions and long life.Because its main material is anticorrosive for outdoor use. Meanwhile, SIC solar using light weight, high strength and recyclable material. Customized tilt angles meet complex requirements of construction site and use effectively energy of sun. Pre-assembled beam saves labor time, reduces cost and makes installation quick.
Ground screw foundation has a unique oblique spiral design,which can greatly ensure the stability and robustness when with standing staic load.

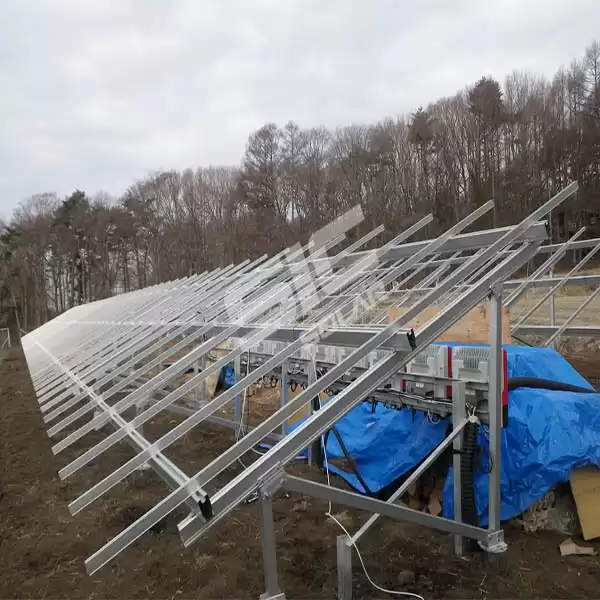

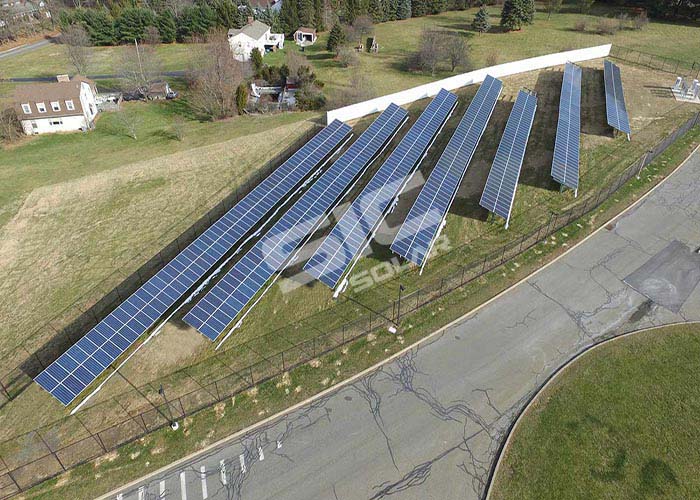

Pls see project shown below.
Category: Ground mounting system
|
Name
|
Ground mounted pv systems
|
|
Installation Site
|
Roof or Ground
|
Foundation
|
Concrete or Ground Screw Foundation
|
Material
|
Aluminum 6005-T5 & Stainless Steel 304
|
Color
|
Natural or Customized
|
Anticorrosive
|
Anodized aluminum & stainless steel
|
Tilt Angle
|
0°~60°
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Standards
|
AS/NZS 1170.2, JIS C 8955:2011
|
|
Warranty
|
10 years warranty and 25 years service time
|

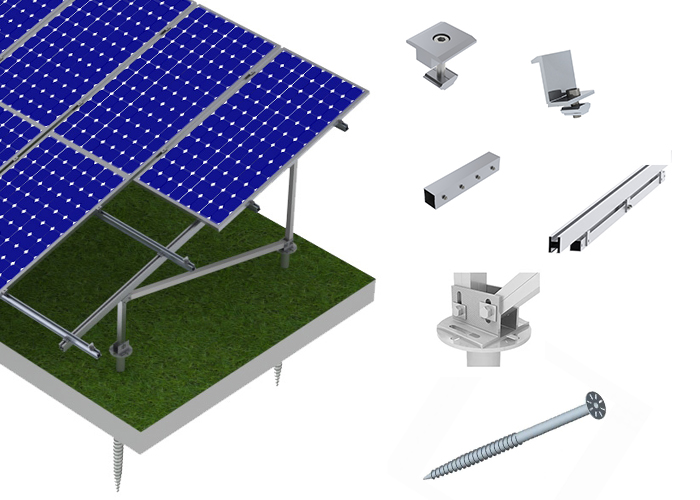

Fix solar panel on Connect main structure Frame support for Pre-assembled frame
the rail with the ground screw solar panel
Advantages as follow:
☆ Ground mounting array could be customized according to your ground size.
☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.
☆ Aluminum profile is very light and easy for installation. It is also anti-corrosion.
☆ Pre-assembled main frame – highly save the labor cost at your installation site.
Related certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
Our standard package is steel pallet for long alu profile, while small alu components will be packed into cartons with plywood pallet.
