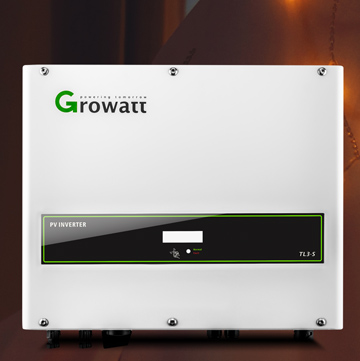

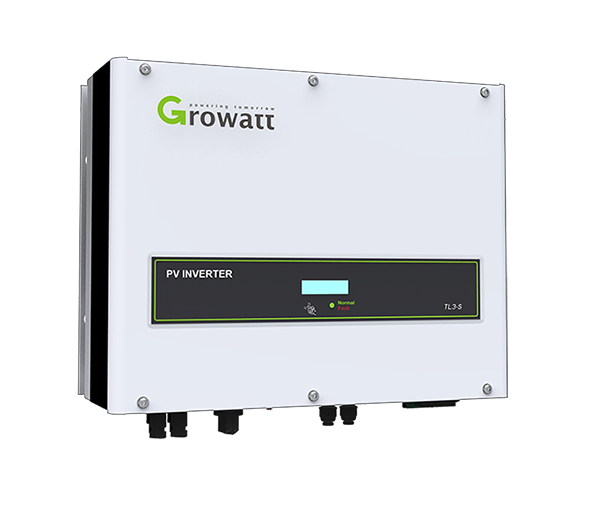

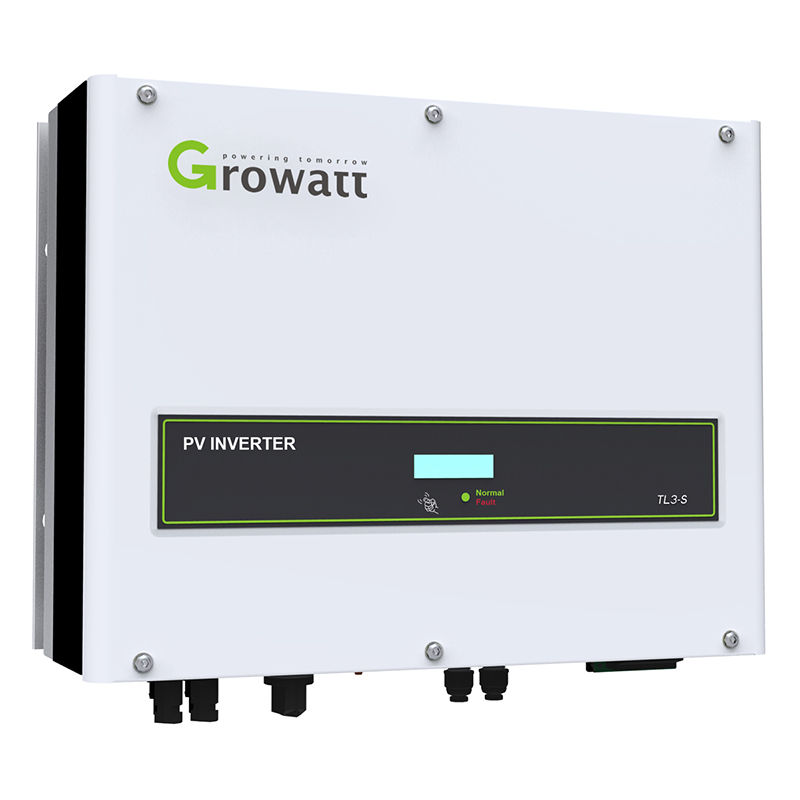

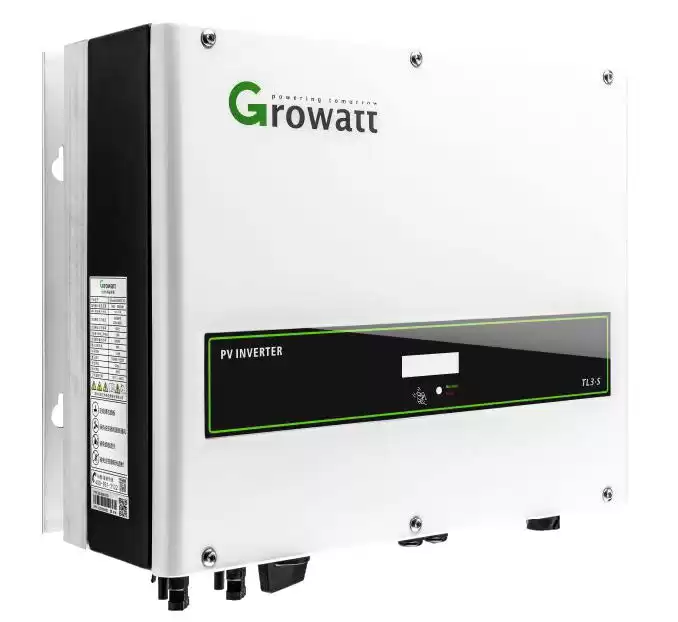

Growatt 8000TL3-S Growatt On Grid 8KW 3 Phase Solar Inverter

Introduction

Three Phase Solar inverter Growatt 8000TL3-S with a maximum DC voltage up to 1,000 V with up to 98.4% efficiency and compact design.

The GROWATT 8000TL3-S is multi MPP with natural cooling controller, non-fan high power density design, lighter and offers you easy installation.

With Growatt You will enjoy a flexible communication CONNECTION, support for RF, Wi-Fi and Ethernet.

TypeOn-Grid
PaymenT/T.L/C.Paypal.Western Union
Lead Time10-15Days
CertificateTUV.ETL.SO.CE
Output VoltageEU Standard

Facebook Twitter Pinterest LinkedIn 分享

Description

Features:
- Max DC Voltage up to 1000V
- Max efficiency 98.4%
- Compact design
- Multi MPP controller
- Natural cooling, fanless design
- Max. DC/AC ratio up to 1.2
- Long-term overload at 1.1 Pn
- High power density, offer lighter and easy installation
- Flexible communication connection, support RF, WiFi, Ethernet
- Comprehensive Growatt warranty program

Model	GROWATT 8000TL3-S
Maximum recommended photovoltaic power (for STC module)	9600W
Voltage Max. Dc	1000V
Start voltage	160V
Photovoltaic voltage Range	160-1000V
Nominal voltage	600V
Full-load MPP voltage range	360-850V
Maximum input current	11.5/11.5A
Output current Max.	13.3A
Nominal AC Voltage	230V/400V, 184 ~ 275V
AC Network Connection Type	3/N/PE
MPPT efficiency	99.5%
Dimensions (W/H/D)	480/448/200 mm
Weight	21.6KG
Cooling conceptn	Natural
Interfaces: RS232/R485/WiFi/LAN/GPRS	Yes/yes/opt/opt/opt
Warranty: 5 years/10 years.	Yes/opt
Certificates and approvals	CE, IEC 62109-1/2, VDE 0126-1-1, Greece, VFR 2014, VDE-AR-N4105, G83, EN50438, CEI 0-21, AS4777, IEC 61727, IEC 62116
