Feature:
Max DC Voltage up to 1000V
Max efficiency 98.4%
Compact design
Multi MPP controller
Natural cooling, fanless design
Max. DC/AC ratio up to 1.2
Long-term overload at 1.1 Pn
High power density, offer lighter and easy installation
Flexible communication connection, support RF, WiFi, Ethernet
Comprehensive Growatt warranty program
|
Model
|

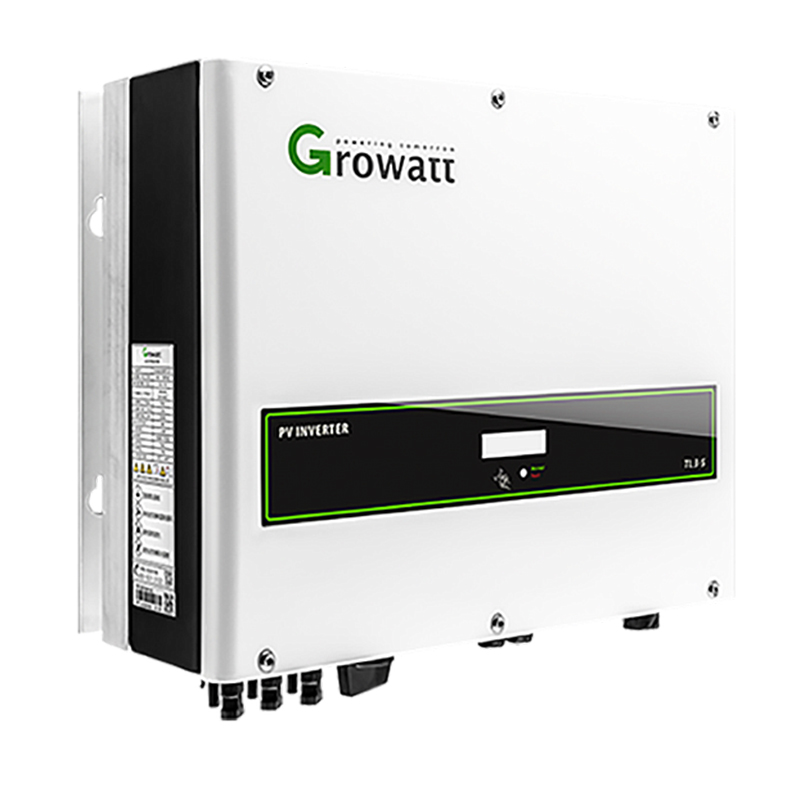

Growatt 10000TL3-S
|
Maximum recommended photovoltaic power (for STC module)
|
12000W
|
Voltage Max. Dc
|
1000V
|
Start voltage
|
160V
|
Photovoltaic voltage Range
|
160-1000V
|
Nominal voltage
|
600V
|
Full-load MPP voltage range
|
450-850V
|
Maximum input current
|
13/13A
|
Output current Max.
|
16.7A
|
Nominal AC Voltage
|
230V/400V, 184 ~ 275V
|
AC Network Connection Type
|
3/N/PE
|
MPPT efficiency
|
99.5%
|
Dimensions (W/H/D)
|
480/448/200 mm
|
|
Weight
|
21.6KG
|
|
Cooling conceptn
|
Natural
|
Interfaces: RS232/R485/WiFi/LAN/GPRS
|
Yes/yes/opt/opt/opt
|
|
Warranty: 5 years/10 years.
|
Yes/opt
|
Certificates and approvals
|
CE, IEC 62109-1/2, VDE 0126-1-1, Greece, VFR 2014, VDE-AR-N4105, G83, EN50438, CEI 0-21, AS4777, IEC 61727, IEC 62116
|
