EC-Z02 GSM+PSTN Dual Network Intelligent Alarm System
Feature:
1. 4 wired & 99 wireless Zones.
2. GSM + PSTN dual network alarm system.
3. LCD display, Press Keypad, easy to operate.
4. Support Chinese, English, Spanish, Russian, French, Italian, Vietnamese, etc
5. Support IOS / Android APP.
6. 6 groups alarm phone call + 3 groups SOS phone No.+ 6 groups SMS phone No.
7. Max support 150pcs wireless sensors and 150pcs remote controls
8. Built-in standby rechargeable battery, the panel automatically stores system status when power off
9. SMS alert when AC Power ON/OFF
10. Real-time arm/disarm and Timing arm/disarm function optional
11. Siren sounding time can be adjusted
12. 10 seconds voice record message
13. 1 relay output
14. Event memory for 100 records
Technical Specification:
Power Supply: DC9V-12V
Built-in Battery: NI-HI AAA*6 DC7.2V
Standby Current: <25mA
Alarm Current: <450mA
Wireless frequency: 433MHz
Encoding: 1527/2264
GSM Operating Frequency: 850/900/1800/1900MHz
Casing Materials: ABS
Operating Conditions: Temperature: -10℃~ +55℃
Relative Humidity: ≤95％RH(No congelation)
Siren loudness: 110db (External siren)
Unit size: 18*13.5*3cm

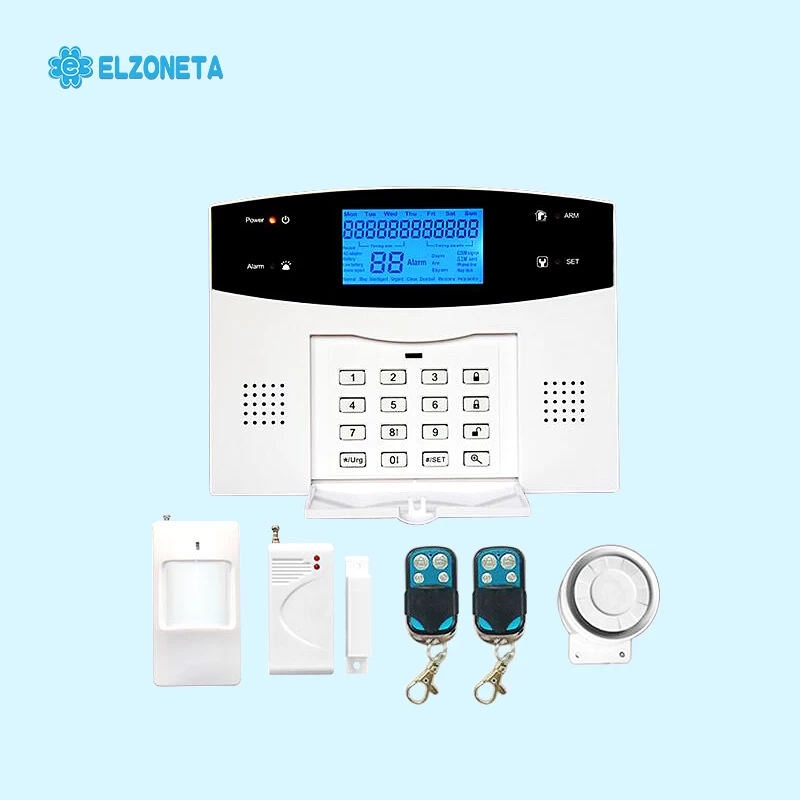

Standard Package:
1*Alarm Panel.
1*PIR Detector.
1*A pair of Door Magnetic
1*Siren.
2*Remote Control.
1*Power Adapter.
1*Telephone Line.
1*User Manual.
