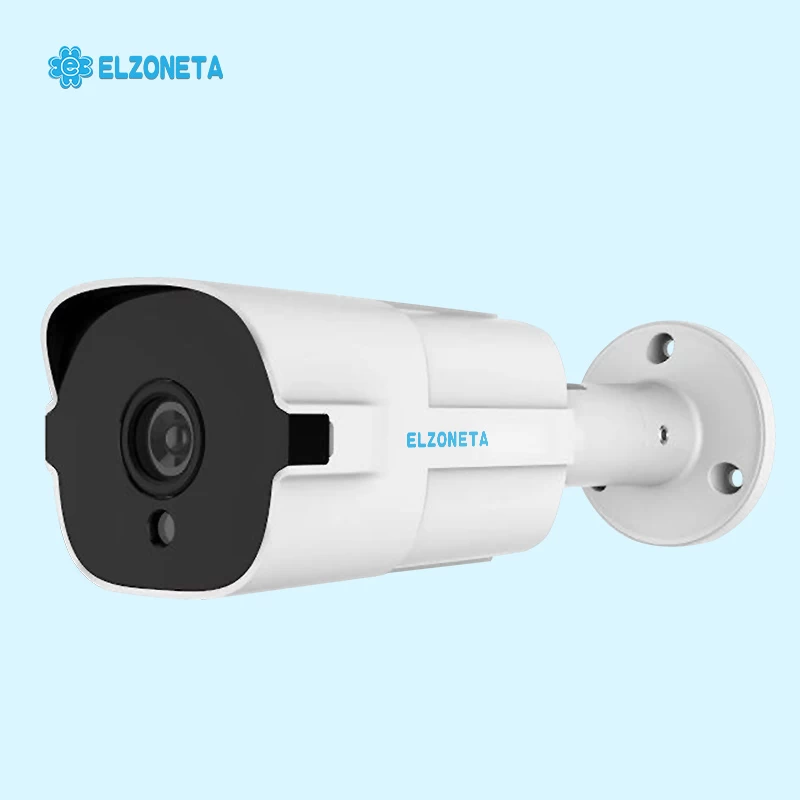

EC-G20S5-BL 2.0MP IP Black Light Bullet Camera
In CCTV Surveillance Cameras System, there appears a new and hot selling product recently. It called Black Light Camera. This kind of IP CCTV Camera is an upgraded products of Super Star Light Camera. Its sensor of the light is more sensitive. It can show you a colorful night vision like in the day time even there is just very little light. This IP Black Light Bullet Camera will be a trend product in CCTV Security System.
Features:
1)IP Black light Bullet Camera
2)Night vision is color video
3)Lens: 3.6mm F.10 super low lux HD lens
4)IR leds: no
5)Material: Aluminum alloy
6)H.264/H.265 video encoding
7)Support ONVIF protocol
8)Plug and play tech(P2P)
9)Offer CMS and Mobile APP
Specifications:
|
Camera
|
|
Model No.
|
EC-G20S5-BL
|
|
Image Sensor
|
2.0mp 1/2.7”SONY IMX307 super low Lux Sensor
2.0MP Cmos Sensor
|
|
Effective Pixels (HxV)
|
1920(H)*1080(V)
2592(H)*1520(V)
2048(H)*1536(V)
1920(H)*1080(V)
|
|
Signal System
|
PAL / NTSC
|
|
Mini Illumination
|
0.001Lux F1.0
|
|
Lens
|
3.6mm F1.0 super low lux HD lens/6.0mm F1.0 super low lux HD lens is optional
|
|
Lens Mount
|
M12
|
|
Day & Night
|
ICR (IR cut filter with auto switch)
|
|
DNR
|
3D DNR
|
|
WDR
|
D-WDR
|
|
Angle Adjustment
|
Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
|
|
AES
|
PAL=1/50 ~1/100,000sec；NTSC=1/60 ~1/100,000sec
|
|
S/N Ratio
|
> 48dB（Auto Gain Off）
|
|
Network
|
|
LAN
|
RJ45 10M/100M adaptive ethernet
|
|
POE function
|
Optional
|
|
Dual stream
|
Support
|
|
Access protocol
|
ONVIF/CGI/GB28181
|
|
Mobile APP
|
IOS/Android
|
|
Support protocol
|
TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP
|
|
Mobile App
|
IOS/Android
|
|
ROL Codec
|
Support
|
|
Corridor Type
|
Support
|
|
General
|
|
Operating Condition
|
-10 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
|
|
Power Supply
|
12 VDC±15%
|
|
IP Rate
|
IP66
|
|
Weight
|
0.52kg
|
|
Dimension
|
175(L)*100(W)*75(H)mm
|
Compare With Normal IR Camera and Black Light Camera:
