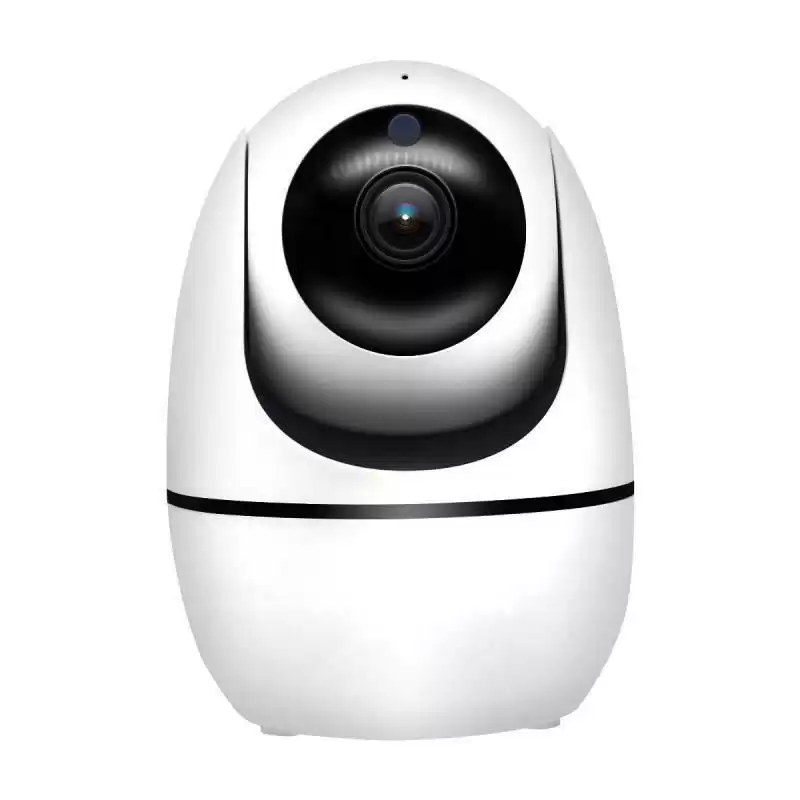

Product Name:H.265 HD 1080P Pan/Tilt WiFi OR IP Smart Camera
Feature
●HD 1080P Wi-Fi IP Camera.
●H.265 Compression & TF card storage,ensured us more clear image quality but less bit rate.
●Humanoid&Motion detection ,When motion objects detected,it will trigger alarm and push.
●1920*1080 3.6mm Megapixel lens,high definition image quality,resolution up to 2 megapixel.
●Pan 355 / Tilt 120 monitoring,can realize remote control and real-time monitoring of camera rotation.

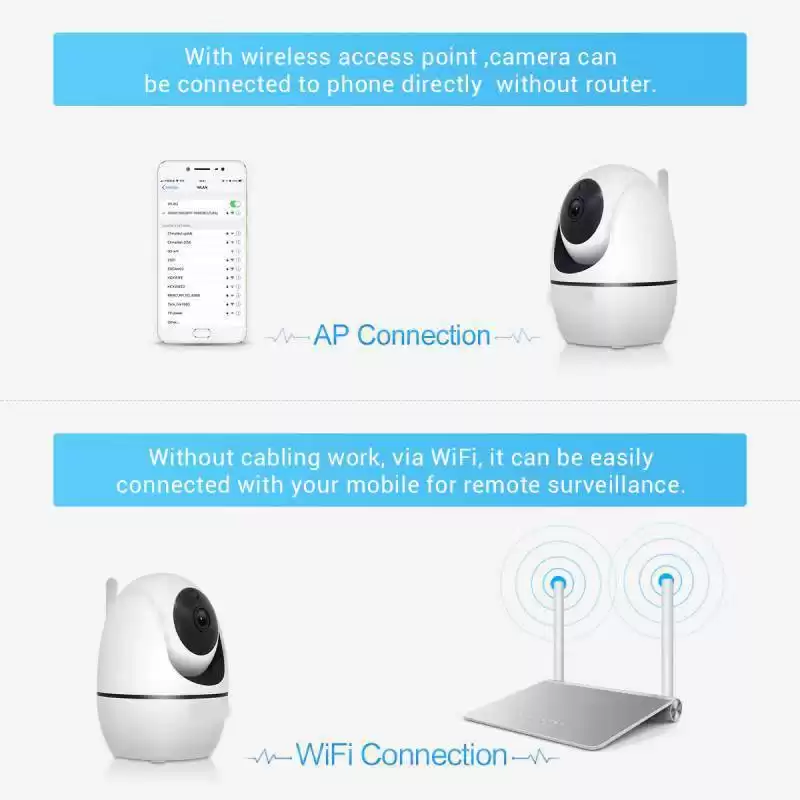

●With wireless access point,camera can be connected to phone directly without router.
●Scene application home company store surveillance.
●Two way audio,Build in microphone and high quality audio speaker.
●Sound detection,when there have sound around the camera,it will trigger alarm and push.
●Night vision,10pcs IR LED design,it can capture ultra clear night time image,max up to 10m IR range.
●Support Android/IOS mobile,tablets,and computers.
Specification
|
Model
|
ANSDEN YAW-PVR008
|
|
Camera
|
|
Sensor
|
1/2.9” 2 Megapixel progressive can CMOS
|
|
Electronic Shutter Speed
|
Auto/Manual, 1/50~1/10000s
|
|
Minimum illumination
|
Color: 0.1Lux@F1.2, B/W: 0.01Lux@F1.2
|
|
Focal Length
|
3.6mm
|
|
Angle of View
|
75.7°
|
|
Functions
|
|
P/T function
|
Pan:355°,Tilt:120°
|
|
Day/night switch
|
10pcs IR lED,IR distance 10m
|
|
White Balance
|
Auto white balance
|
|
BLC
|
Support BLC
|
|
Digital noise reduction
|
Support 3D noise reduction
|
|
WDR
|
Support WDR
|
|
Privacy shelter
|
Support 4 zones
|
|
OSD
|
Support OSD setting
|
|
Video
|
|
Compression
|
H.264/H.265
|
|
Resolution
|
Mainstream:1080P(1920*1080),720P(1280*720)
|
|
Sub stream：D1(704*576),360P(640*360),CIF(352*288)
|
|
Video frame rate
|
25fps(50HZ), 25fps(60HZ)；
|
|
Bite rate
|
135Kbps~2048Kbps CBR/VBR adjustable
|
|
Video adjustment
|
Brightness, saturation, chroma, sharpness and contrast adjustment
|
|
Network
|
|
Wireless
|
Support WIFI 802.11b/g/n,2.4G band ;AP mode
|
|
IP type
|
Dynamic IP and Static IP
|
|
Network agreement
|
HTTP, TCP/IP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
|
|
Access protocol
|
Support ONVIF 2.4
|
|
Max user qty
|
4-Jan-00
|
|
Client
|
iPhone, iPad, Android，Windows PC
|
|
Alarm
|
|
Alarm detection
|
Humanoid detection and automatically tracking, motion detection , sound detection
|
|
Alarm action
|
Alarm recording, alarm capture, Email and FTP send pictures, APP push
|
|
Audio
|
|
Audio input
|
Built-in microphone
|
|
Audio output
|
Built-in speaker
|
|
Interface
|
|
|
TF card
|
Support max to 128 GB TF card(micro SD)
|
|
General
|
|
Power supply
|
DC5V
|
|
Power Consumption
|
<6W
|
|
Working Environment
|
-10°C~+50°C, 10%~85%
|
|

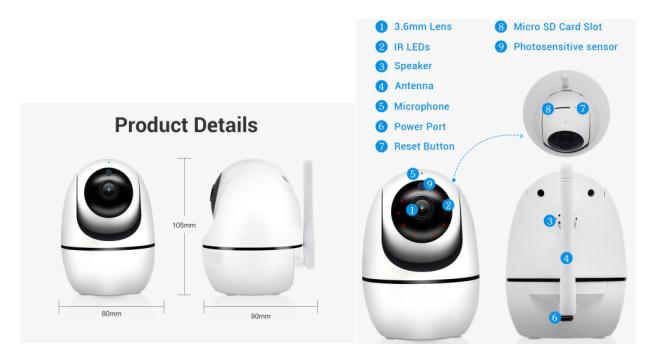

Dimension
|
90mm * 80mm *105mm
|
|
Weight
|
0.19kg
|
|
Package Dimension
|
150mm * 140mm * 100mm
|
|
Package Weight
|
0.35kg
|
|
Package List
|
IP Camera*1,Power adapter*1,USB Cable*1,Reset pin*1,Screws*1,Manual*1
|
Dimension
Humanoid&Motion detection ,When motion objects detected,it will trigger alarm and push.
Application
Pan/Tilt monitoring,can realize remote control and real-time monitoring of camera rotation.
