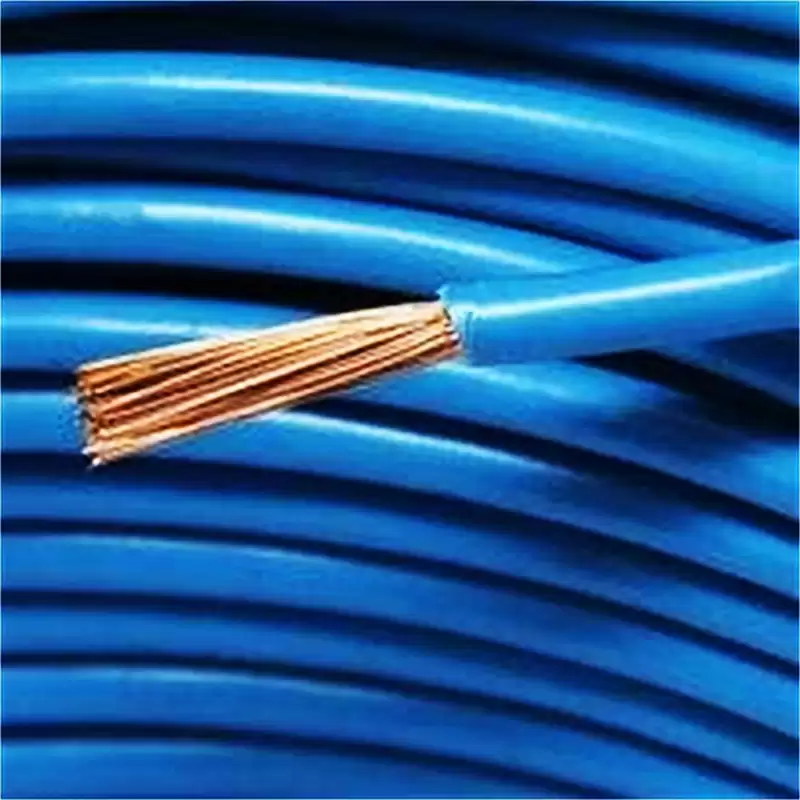

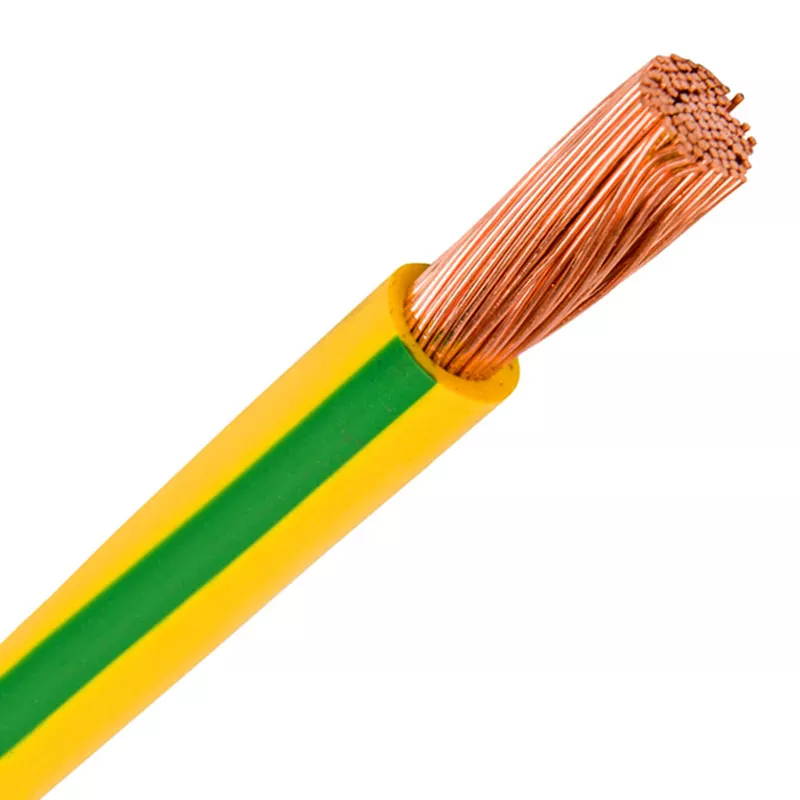

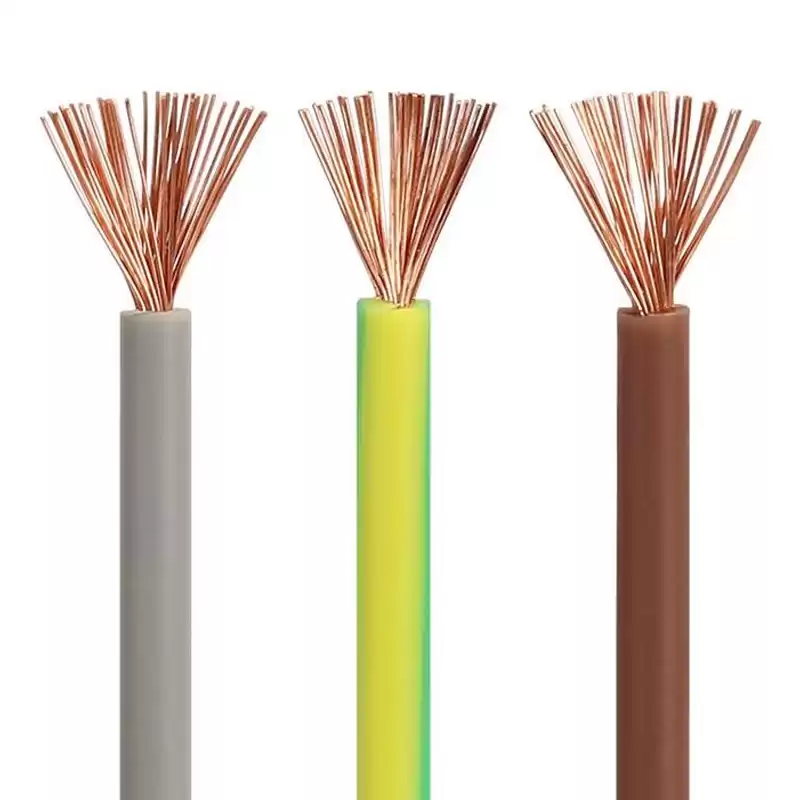

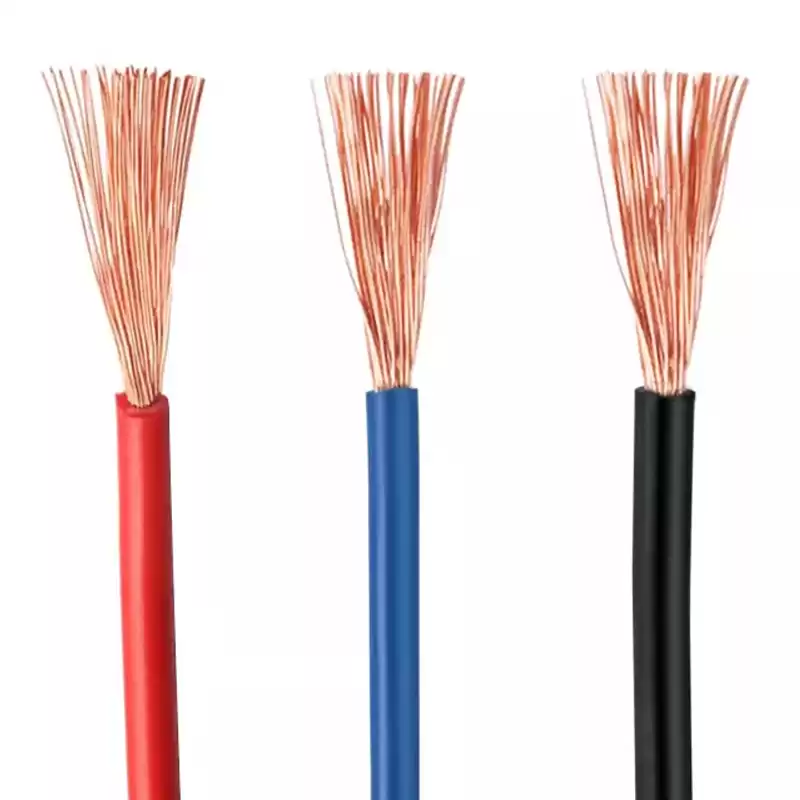

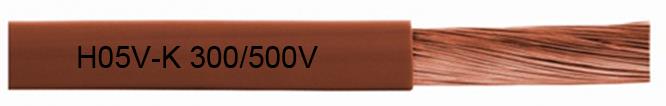

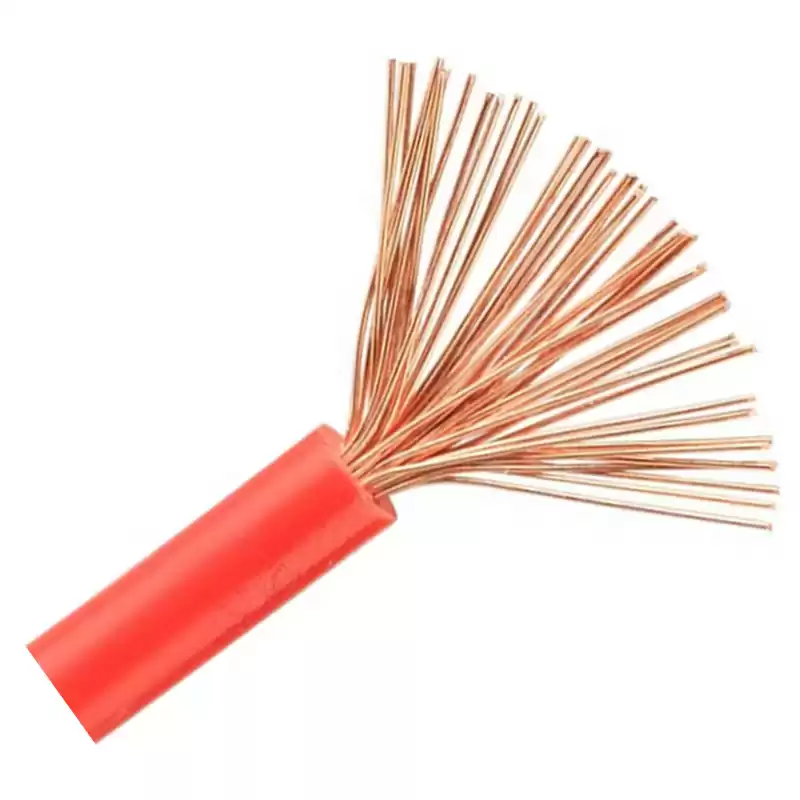

H05V-K 300/500V Single Core PVC Insulated Flexible Cable
PRODUCTS NAME
H05V-K 300/500V Single Core PVC Insulated Flexible Cable.
PRODUCTS KEYWORDS
H05V-K, 2491X, RV, stranded copper wire, PVC insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
H05V-K 300/500V Single Core PVC Insulated Flexible Cable, PVC panel wiring for use in the switch control, relay and instrumentation panels of power switch-gear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
PRODUCTS STRUCTURE

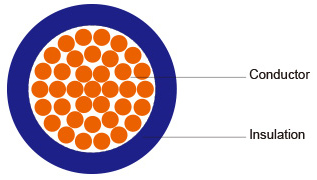

H05V-K 300/500V Single Core PVC Insulated Flexible Cable, the structure as below:
---Conductor Material
Plain annealed copper wire, stranded Class 5, or Class 6.
---Insulation Material
Flexible PVC (polyvinyl chloride).
---Sheath Material
Non-Sheath.
---Core Number
Single core, 1C, 1 core.
a
PRODUCTS DIMENSIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
H05V-K 300/500V Single Core PVC Insulated Flexible Cable.
|
|
Conductor Material
|
Plain annealed copper wires, stranded Class 5, or Class 6.
|
|
Conductor Structure
|
25/0.20 mm.
|
|
Insulation Material
|
Flexible PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.6 mm.
|
|
Insulation Colour
|

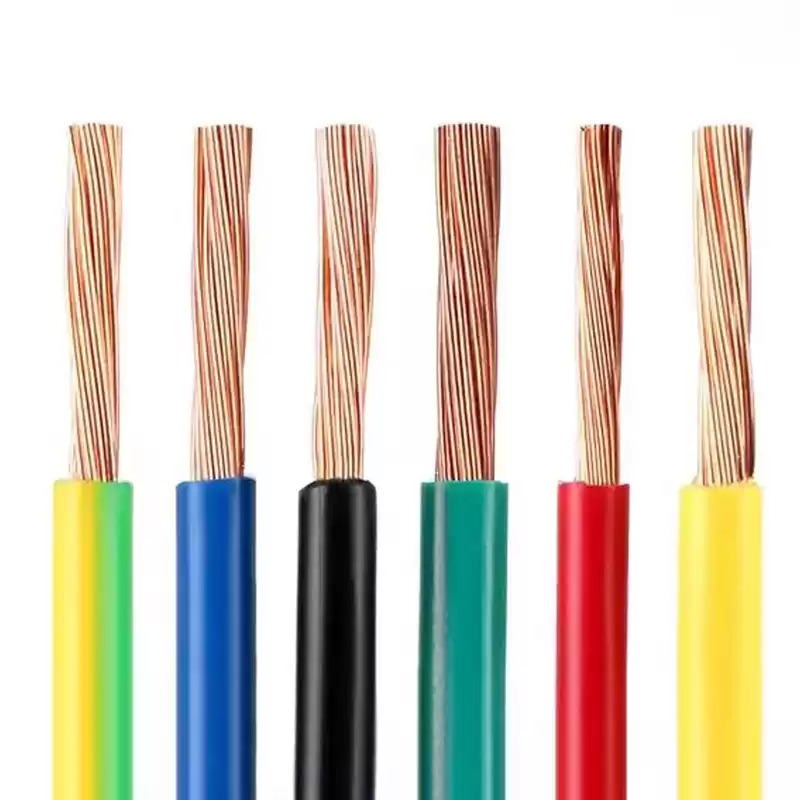

Red, yellow, blue, green, black, grey, white, yellow/green, or others.
|
|
Sheath Material
|
Non-sheath.
|
|
Conductor Cross-section
|
1 x 0.75 mm2.
|
|
Core Number
|
Single core, 1 core, 1C.
|
|
Out Diameter
|
2.7 mm.
|
|
Voltage Rate
|
300/500V (U0/U).
|
|
About Net Weight
|
12 kg/km.
|
|
Production Standard
|
JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525-2-31.
|
|
Max. Conductor DC
Resistance at 20℃ in Air
|
26.0 Ω/km.
|
|
Min. Insulated
Resistance at 70℃
|
0.0110 MΩ.km.
|
|
Max. Ampacity
at 40 ℃ in air
|
6A.
|
COMPANY PROFILE
Xiamen Seebest Wire & Cable Co., Ltd, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.
COMPANY ADVANTAGE
---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.
---ISO9001, CCC, CE, CB, RoHS, SAA, VDE, DEKRA, UL, and other certificates.
---20 years of professional experience in wire and cable manufacturing, sales, and service.
---One hour arrives at Xiamen airport, seaport, High-speed Railways station, and bus station.
---2 professional engineers, 8 rigorous QC staff, and a total of 168 experienced staff.
---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.
COMPANY PRODUCTS
---Electrical Wires: PVC or LSZH Insulated Electrical Wires.
---Power Cables: 0.6/1kV, PVC, XLPE, or LSZH Insulated Power Cables.
---Electronic Wires: UL 62, UL 1007, UL1015, UL 2464, UL 2468, VDE 0281, VDE 0282,
VDE 0250, and other Electronic Wires.
---Customized Products: Fire Retardant Cables, Fire Resistant Cables, Mineral Insulated Power
Cables, LSZH, LSOH, LSFH and other RoHs Cables, and Environmental Protection Cables.
---Communication Cables: Networking Cables, Telephone Cables, Coaxial Cables, Speaker Cables.
---Power Plugs: CCC, UL, VDE, and other standards Power Plugs.
COMPANY SLOGAN
---Seebest Cable: Become the most trusted cable company in China.
---Seebest Cable: Focus on Quality, Foremost Service.
---Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant,
Technology Supporter, and Sales Assistant in Wire and Cables Industry.
COMPANY FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.
2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.
3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm², the MOQ is 5,000 meters;
For the Power Cables more than 25mm², the MOQ is 1,000 meters;
For the networking cables, the MOQ is 100 boxes/cartons;
For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.
For other customized wire and cables, please negotiate the MOQ with us immediately.
4. Can you give me the price discount?
We can give you the price discount, but the discount percent depends on the quantity, quality, packaging and payment terms in your order.
In addition, price is an important factor, but it should not the decisive factor; the price can be lower, but we must keep the safe bottom-line. The high-quality products can help you saving more money, and there is not potential safety hazard, you don't worry about them every day.
5. Can you provide the OEM, OBM and ODM services?
Yes, we can provide OEM, OBM and ODM services for you, but you should provide the Power of Attorney for Trademark and other detailed information to us.
