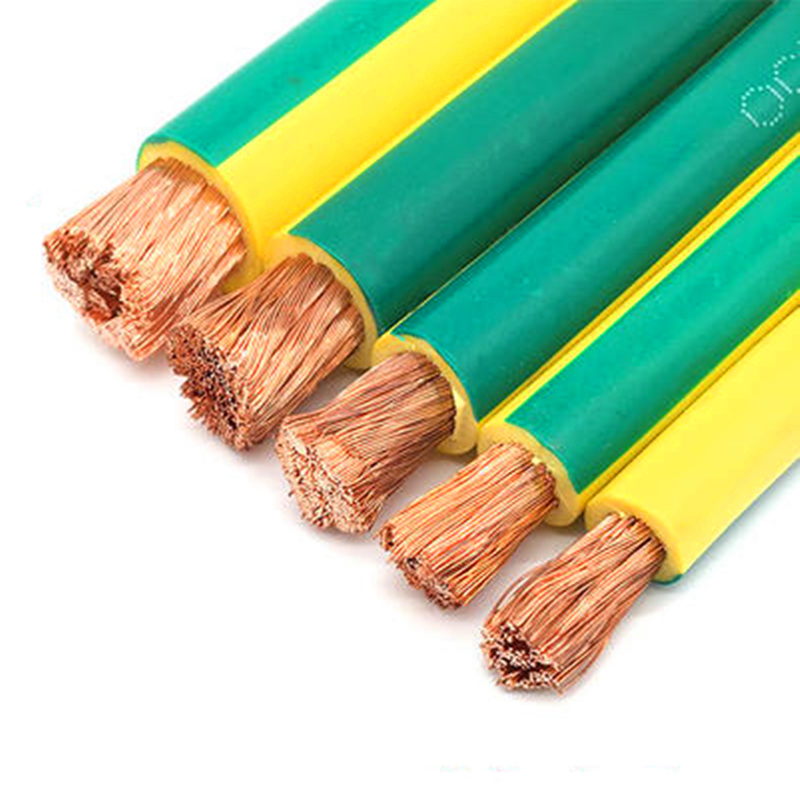

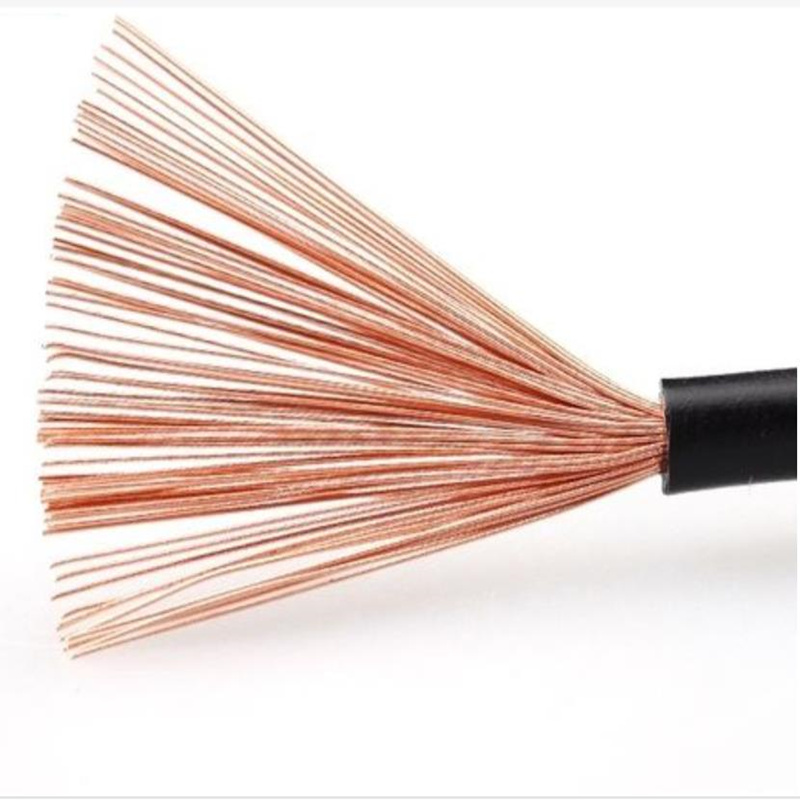

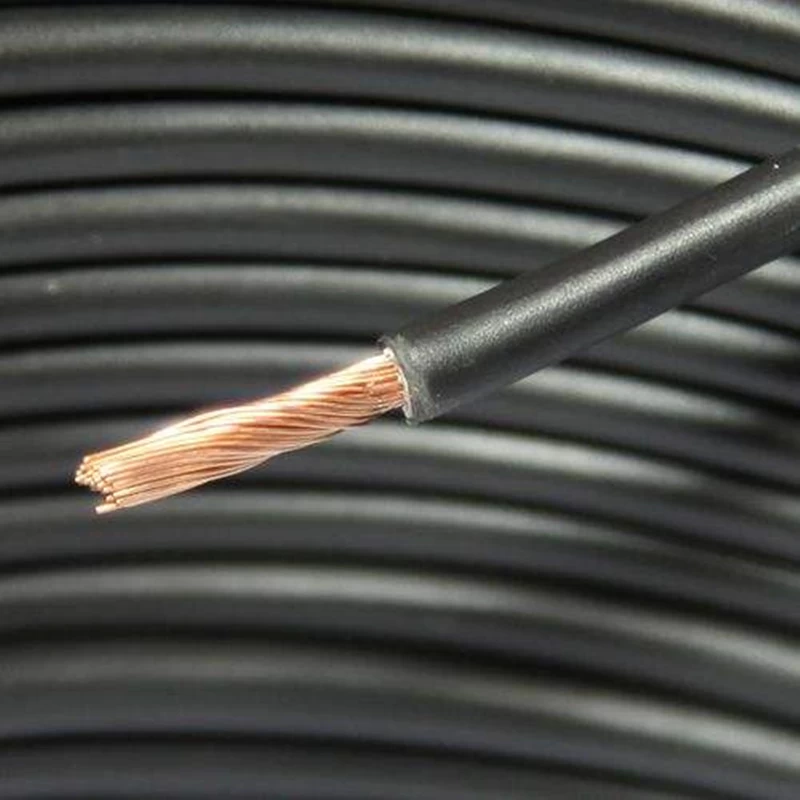

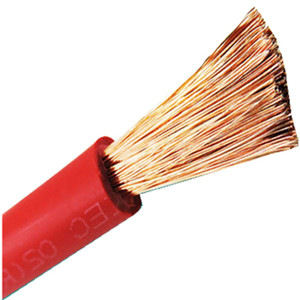

H05V-K H07V-K 2491X Single Core PVC Insulated flexible RV Electric Cable

H05V-K H07V-K 2491X single core PVC insulated non-sheath flexible RV Electrical wire and Cable, strand flexible copper wire, PVC insulation, non-sheath. H05V-K H07V-K RV cable, is softer than BV and BVR cables.



H05V-K H07V-K Single Core PVC Insulated

2491X Flexible RV Electrical Wire and Cable

MAIN KEYWORDS

RV, H05V-K, H07V-K, 2491X, VSF, 60227 IEC 06, 60227 IEC 02, single core non-sheath flexible cable.


APPLICATION CHARACTERISTICS

H05V-K & H07V-K RV cable is primarily used as flexible panel wire and is available in a wide range of different colors for this purpose. Designed for internal equipment wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers, this flexible cable can be installed in open air, in conduits, or in trunking. H05V-K H07V-K RV flexible cable, it is similar to BV & BVR cable, but their copper wires and PVC insulation are thinner and softer than BV and BVR cables.

PRODUCTS STRUCTURE

---Conductor Material

   Plain annealed copper wire, strand class 5, flexible.

---Insulation Material

   PVC (Polyvinyl chloride).

---Insulation Colour

   Red, yellow, blue, green, black, grey, white, yellow/green, or others.

---Sheath Material

   Non-Sheath

---Core Number

   Single core, 1C.

---Voltage Rate (U0/U)

   H05V-K: 300/500V    H07V-K: 450/750V

---Working Temperature

   -15℃~+70℃.

---Minimum Bending Radius

   Fixed: 6 x Out Diameter.

---Production Standard

   JB/T8734, GB/T5023, IEC60227, BS6004, BS EN 50525.

---Products Delivery

Within 3-5 working days as soon as we received the deposit.



REMARK

---The above information is only for you reference, for the formal data, please refer to the actual products.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 or 105 degree, but the production process, materials and production standard maybe has a few of different.

---For the 6242Y flat twin BVVB cable (earth wire is optional), according to the practice, the common specification is 1.0~6 mm2.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.



MAIN ADVANTAGE



HOT-SELLING PRODUCTS



RAW MATERIAL



PRODUCTION PROCESS

INSPECTION PROCESS


FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.


Product Tags 450 750v and below electrical wires          450 750v electric wires          450 750v          450 750v buiding wiring          450 750v twisted wire          750v electric wire          450 750v cable          750v electric wire manufacturers          450 750v flexible cable
