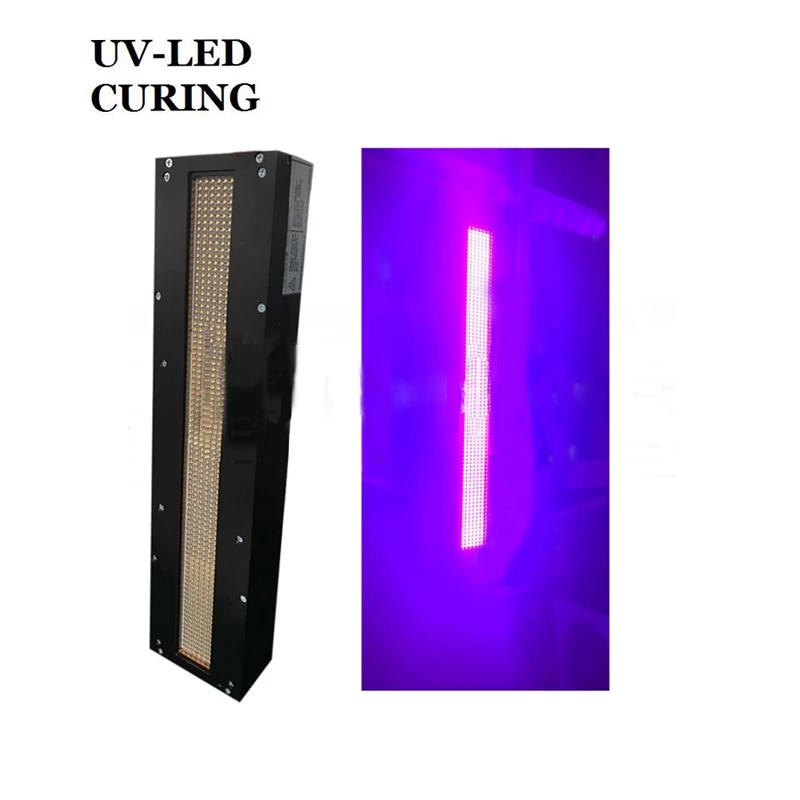

Hand-held UV Curing Equipment for Label Printing UV Curing Machine

High Effeciency UV LED Curing Lamp, because of its extra-long life, energy saving, stable output, high uniformity,has been chosen by customers. And also, mulyiple control modes is one of its advantages.



Ultra High Power UV Curing Lamp for Label Printing is belong to Rectangular Area UV LED Curing Machine.

Not only Hand-held UV Curing Lamp can cure Microelectronics, liquid crystal, PCB, optical communication and so on. But also UV Curing Lamp can cure high grade furniture UV vanish, solidify crafts spray, solidify the screen of LED, LCD, OLED .


Product parameters of Ultra High Power UV LED Curing Lamp for UV Coating :

Place of Origin

Guangdong, China (Mainland)

Brand Name

UV-LED CURING

Model Number

XYUV-4II

Rated Power

1584w

Voltage

220V

Wavelength

365nm/375nm/385nm/395nm/405nm/415nm


UV LED Curing Lamp

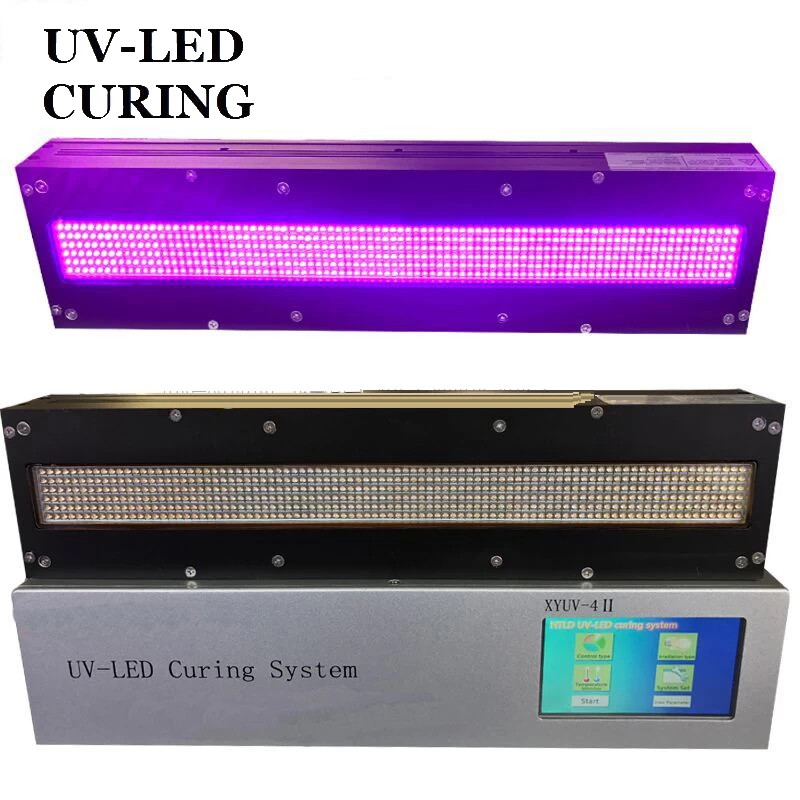

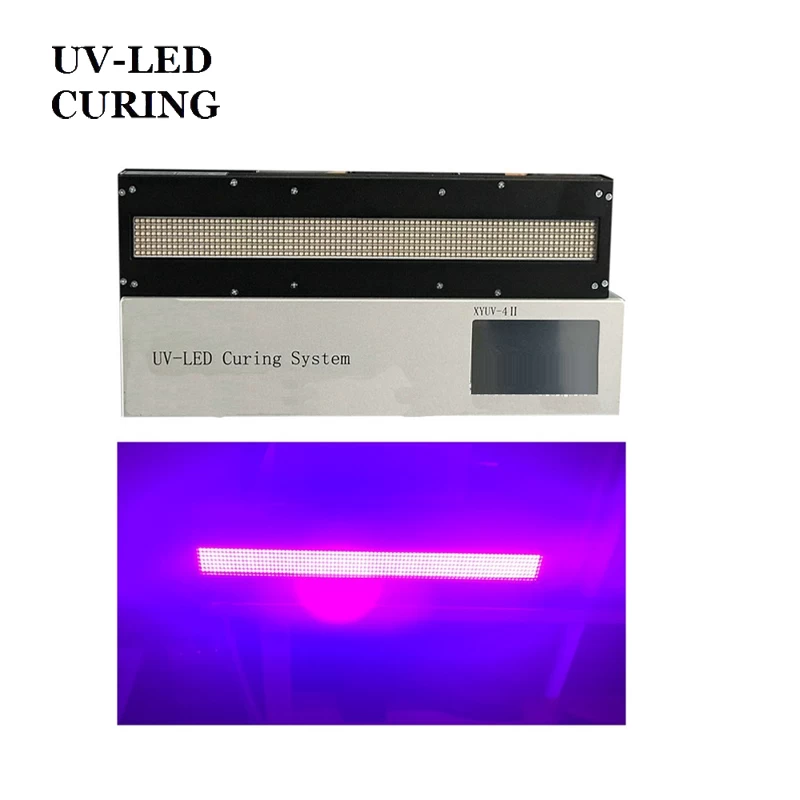

Technical Data of the Controller

Type

XYUV-4Ⅱ

Channel

1

The size of controller

L384*W284*H90mm

Terminal I/O

Input

Pedal switch & serial RS-232 communication signals

Output

Serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

Touch Panel

Ambient temperature and humidity

Ambient temperature: -10℃—50℃  Relative humidity: 25%—85%RH

Dimming/Exposure control

Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)

Setting operation

Using the operating switch is set, Power key parameter switch, RS-232

External Control

External input

Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch

External output

REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)

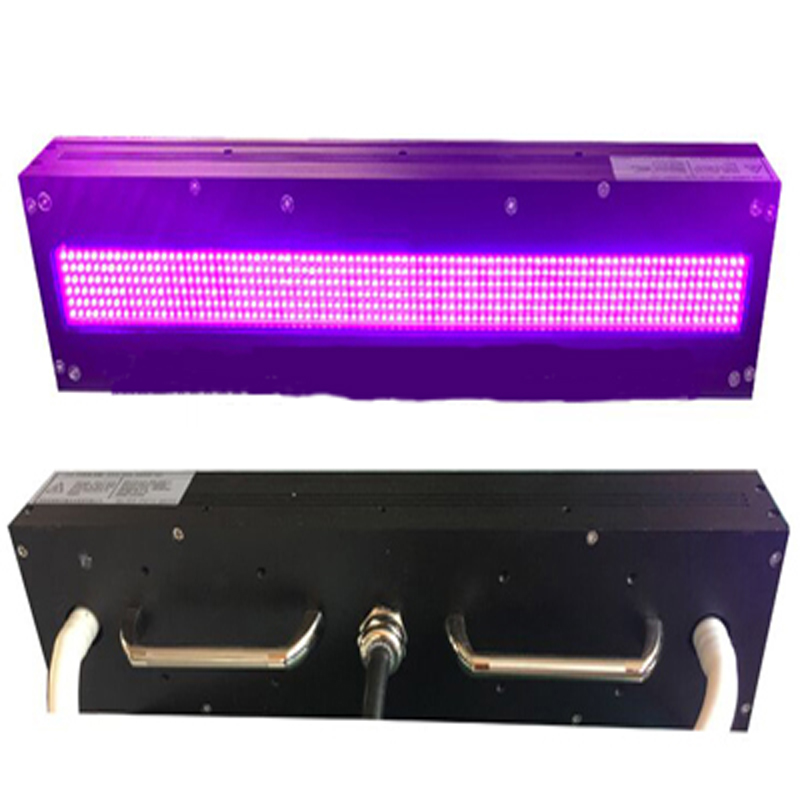

Technical Data of the 365nm-395nm UV Curing Equipment Irradiation Light Head :

Input voltage

220VAC 50Hz / 60Hz

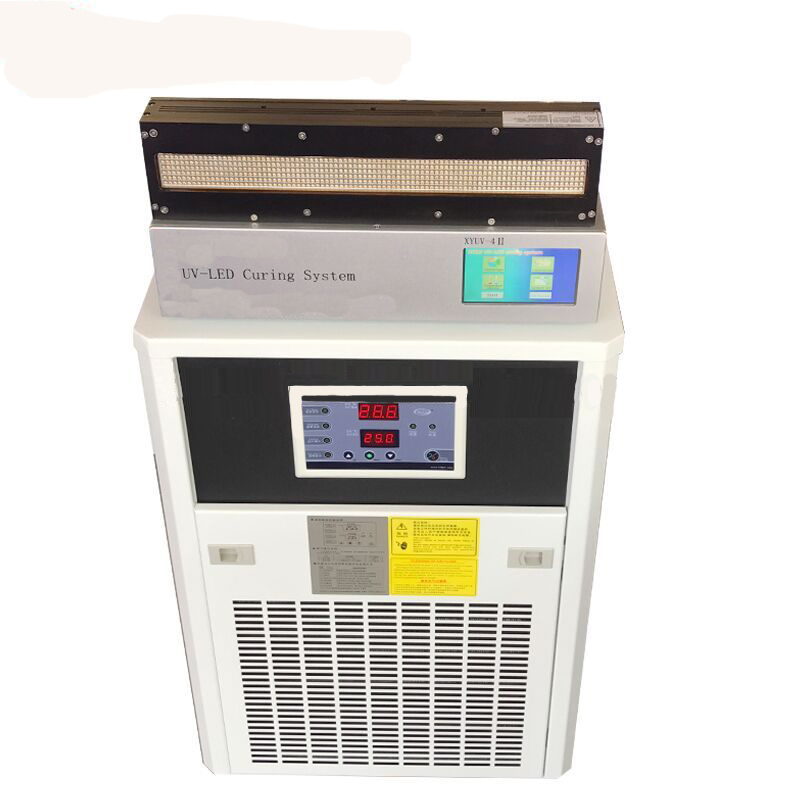

Cooling method

Water cooling

Life

>10000 H

Intensity

0-100% adjustable

Irradiation distance

10-100mm adjustable

Optic power

13000mw/cm2 (10mm irradiation distance)

Product Feature of Immediate Drying Ultraviolet LED Curing Machine 365-395nm :

1.Instant ON / OFF, NO required.

2.Adjustable curing distance, UV output intensity and irradiation time.

3.Energy saving and environmental protection.

4.Long life.

5.No infrared radiation, cold light source, suitable for all types of heat-sensitive material curing.



Control System Feature of Hand-held UV LED Linear Curing Lamps for Printing :

1. Panel display, touch operation, real-time monitoring of the head of the working state

2. Intensity adjustable from 0-100%

3. Temperature monitoring



Product Advantage of Portable UV LED Curing Equipment for UV Ink :

1. Extra-long life: 25000h~30000h

2. Energy saving: save 80% electrical energy than Mercury lamp

3. UV output adjustable: from 1% to 100%

4. Multiple control modes: constant current, peal control, intelligent optical and manual modes

5. Photoelectric induction, instant on/off, no preheating required.

6. Low energy consumption, just 20% of the ordinary UV lamp.

7. No mercury, no Ozone, eco-friendly.

8. Cold light source, low temperature.

9. Stable output, high uniformity
