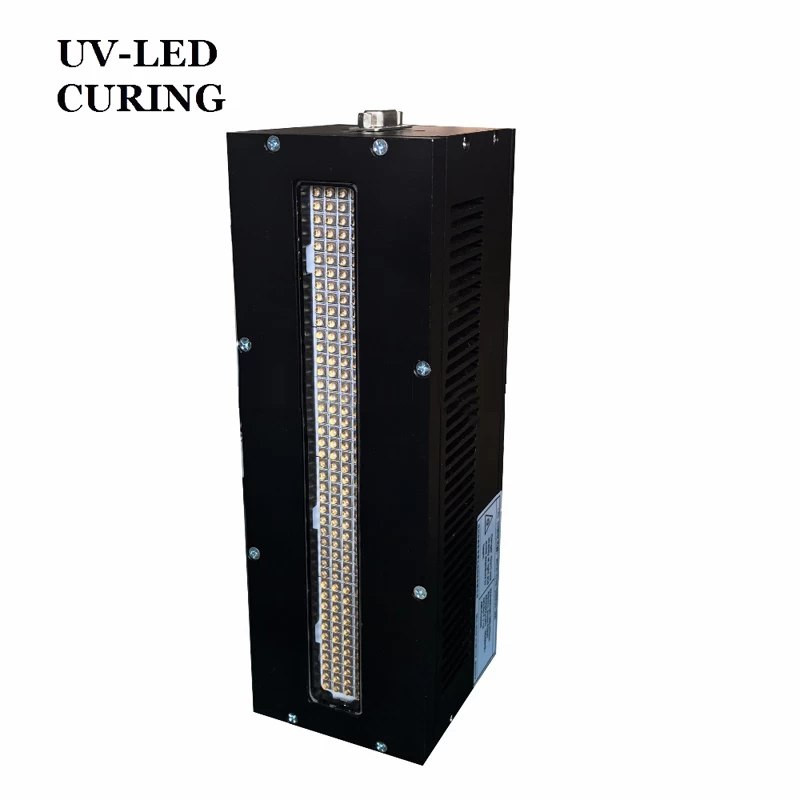

UV-LED CURING High Power Water Cooling Customized 395nm LED UV Curing Lamp

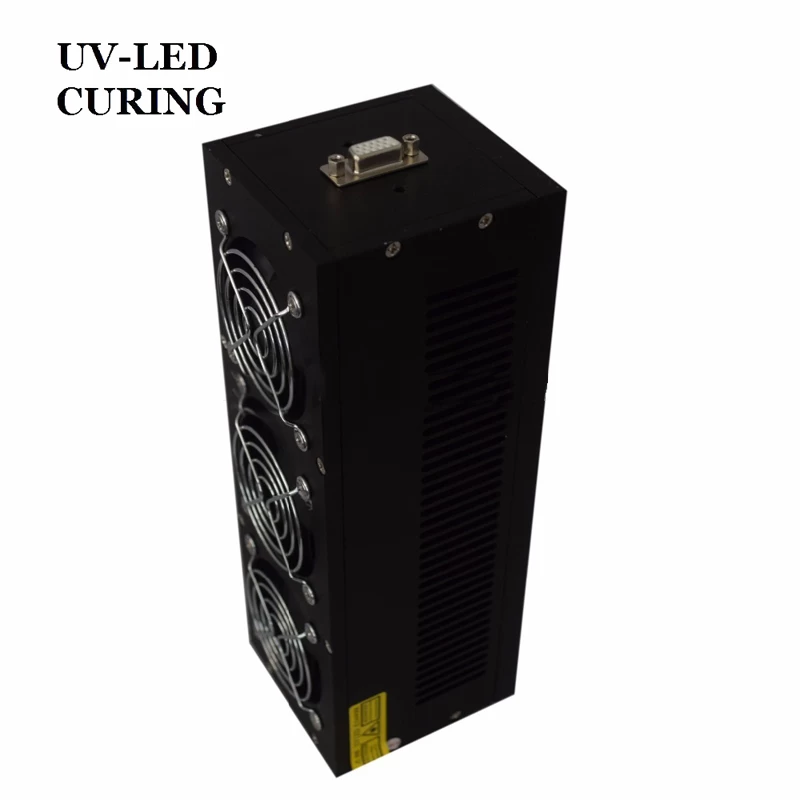

Fan/Water cooling is used to High Power 395nm UV LED Curing Lamp. Because of cold light source, it does not produce harmful ultraviolet radiation without thermal radiation and reduce the heat generated by the curing process.



Our products, like UV-LED CURING Water Cooling Customized 395nm LED UV Curing Lamp for UV Curing, are mercury free, safer and more environmentally friendly. High Power Water Cooling 395nm UV LED Curing Systems is simple equipment structure. Its service life can reach 20,000 hours.


Parameters of Customized Line LED UV Curing Light Source for UV Varnish :

Place of Origin

Guangdong, China (Mainland)

Brand Name

UV-LED CURING

Model Number

UV Curing Lamp

Rated Power

100~1500W

Voltage

 220V

Application

UV curing

Product Name

UV curing Machine

Wavelength

395nm or customized

Certification

CE RoHS

Light Power Density

1-20W/cm2

Light Color

Ultraviolet

Packaging Details

Cartons/wooden Case


High Power Customized 395nm LED UV Curing Lamp

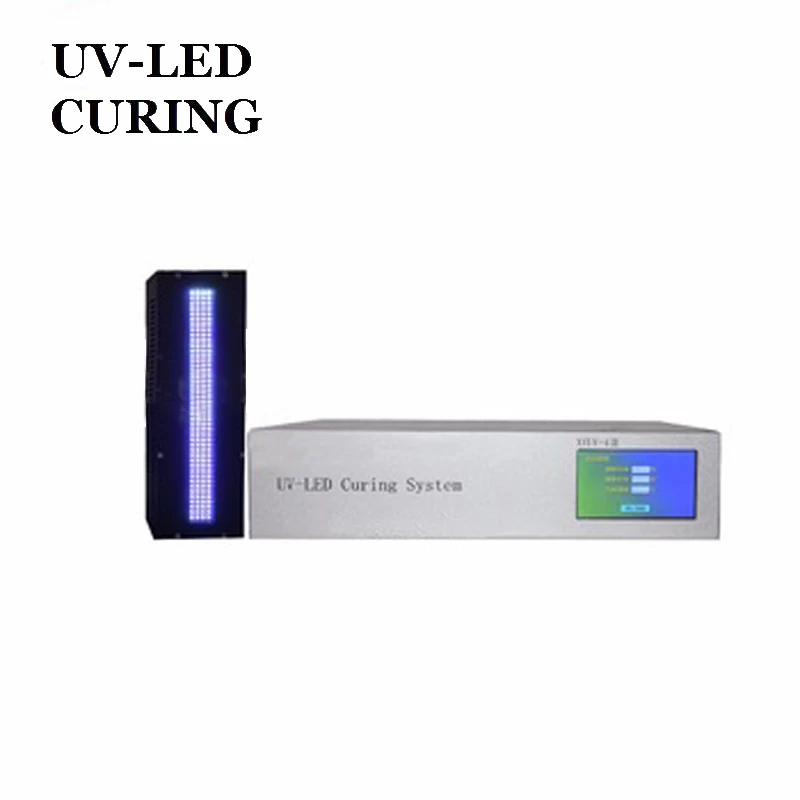

Technical Data of Fast Curing 395nm UV LED Linear Light Source Controller

Type

XYUV - 4

Channel

1

The size of controller

L384*W284*H90mm

Terminal I/O

Input

Pedal switch & serial RS-232 communication signals

Output

Serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

Touch Panel

Ambient temperature and humidity

Ambient temperature: -10℃—50℃  Relative humidity: 25%—85%RH

Dimming/Exposure control

Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)

Setting operation

Using the operating switch is set, Power key parameter switch, RS-232

External Control

External input

Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch

External output

REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)

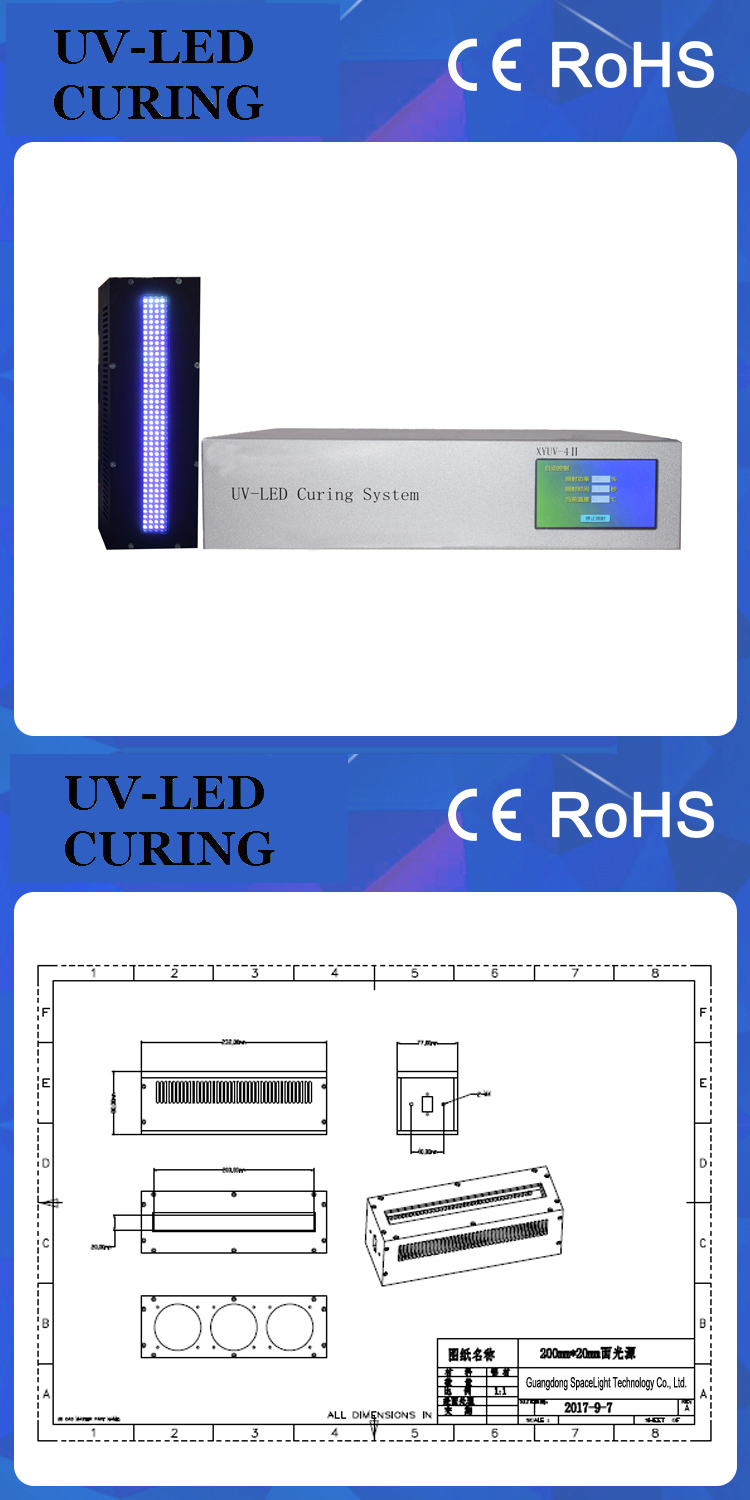

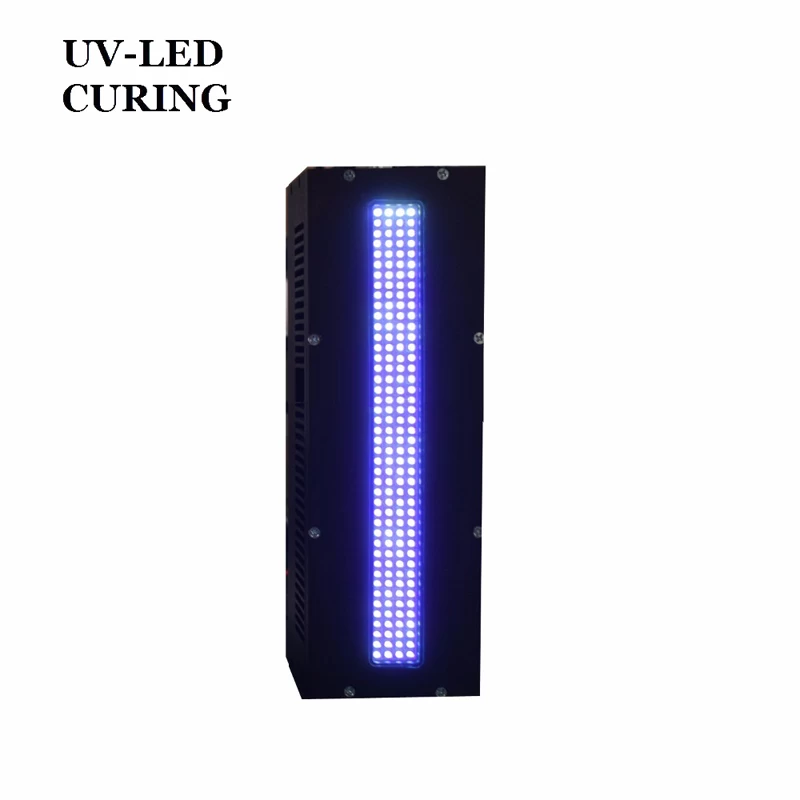

Water Cooling UV LED Line Light Source Irradiation Head Detail Parameters:

Model No.

Emitting Size

Wavelength

Light Intensity

Cooling Method

Power

Work Voltage

UV-LED CURING 200*20

200*20mm

395nm

4000mW/cm2

Air Cooling

550W

220V

Other Size could be Customized
