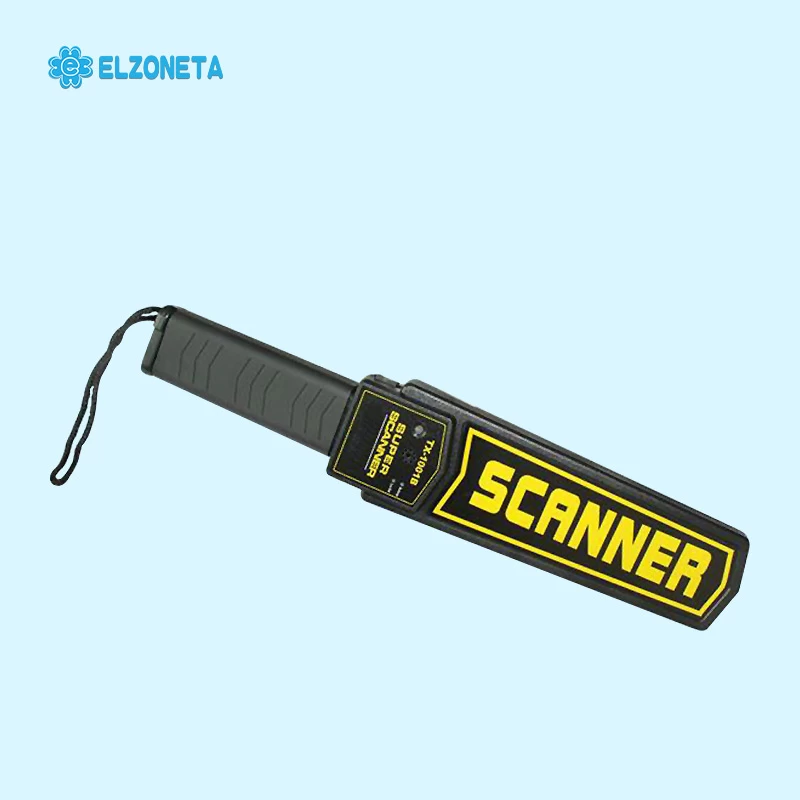

EC-ACS-HD01 Hand-held Alarm Detector
It will emit different alarm sounds according to the metal sizes; high sensitivity, can detect tiny metals, such as: mobile phone GSM card, TF memory card, pins, razor blades, staples on the 10th, 8-pin chips.
Functions and Features
1．Ultimate sensitivity: detects medium sized pistol from 9" distance; large knife
from 6"; razor blades and box cutters from 3" distance; foil-wrapped drugs and tiny jewelry
from 1".
2．Self-calibrating: digital microprocessor technology eliminates the need for
periodic sensitivity adjustments.
3．Rugged, high-impact ABS case with reinforced coil compartment.
4．Large 10" scan surface for quick, thorough scanning.
5．No tools required to change standard 9V battery. Optional rechargeable battery
kit available.
6．Sharp audible alarm and bright red LED light and vibration indicates the
detection of metal.
7．Color LED indication: Green LED power ON indicator; Red LED LOW
BATTERY indicator; Red LED ALARM indicator; Green LED RECHARGING indicator.
8．Adjustable sensitivity knob.
Technical Parameter
Product size : 410mm x 85mm x 45mm
Package Size : 600mm x 90mm x 55mm
Working frequency : about 25 KHz
Net weight : 400 g（Without batteries）
Power supply : Standard 6F22/15F8H 9V battery or rechargeable battery(optional)
Temperature : -15℃ to +55℃
Power : 270MW
Packing : 25/box
Detection Range
1. Pin 30—60mm；
2. Type 64 pistol 180-195mm；
3. Six-inch dagger 160—180mm；
4. 20mm diameter steel balls 120mm；
5. One yuan coin 75—100 mm；
Applications
1. Airports, railway stations, docks probing examination;
2. Customs, public security, border control, defense department security checks;
3. Pharmaceutical, food quality business systems inspection;
4. Important places, playground safety inspection;
5. Electronics factory, SMT chip factory, cell phone factory, and the electronic components and precision metal
parts processing industry.

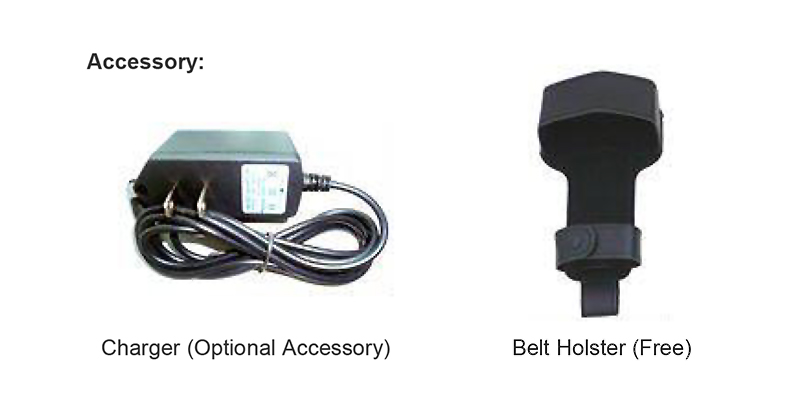

Accessories
