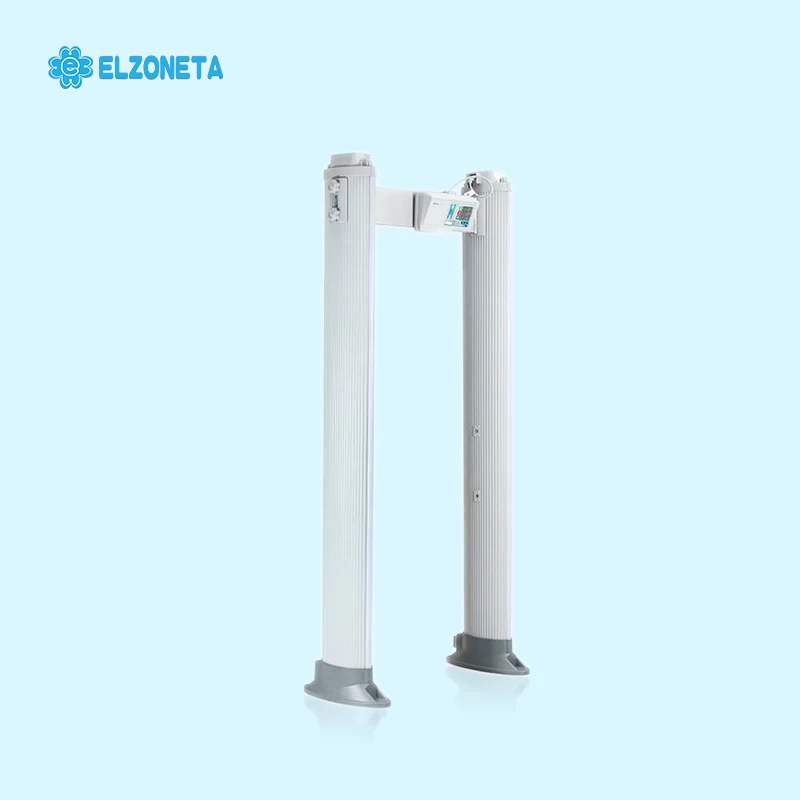

EC-ACS-DD02   Multi Zone Metal Detector Security Gate

Features and Functions

1．Adjustable sensitivity of each detection zone

2．Multi-alarm sounds to choose

3．Operating frequency can be adjusted manually or automatically

4．Detection technology: Even detection technology,no blind spot

5．Internet technology:Remote upgrade system and remote control system

6．Working band: 50 working bands

7．Sensitivity of each detection zone:400 level

8．Security level: 100 level

9．Statistics: Record the pass and alarm numbers

10．Query function: The system has real-time information query function

11．Intelligent Standby: The system has intelligent standby operation alerts

12．Detection speed: more than 60 people pass and detect in 1 minute

Advanced function

1. Intelligent partion: Can change detection zones according customers’ demands

For example convert 6 zones to 12 zones or 18 zones,33 zones(optional)

2. Can connect PC terminal that change specification of WTMD

anytime,anywhere(optional)

3. We intergrated 72 application occasions in the program,so can change all zones

Sensitivity when you choose different occasion.

4. Have 4 kinds infrared mode: IR ON/IR OFF/Front group IR ON/Back group IR ON

Technical Parameters

Model Number: EC-ACS-DD02

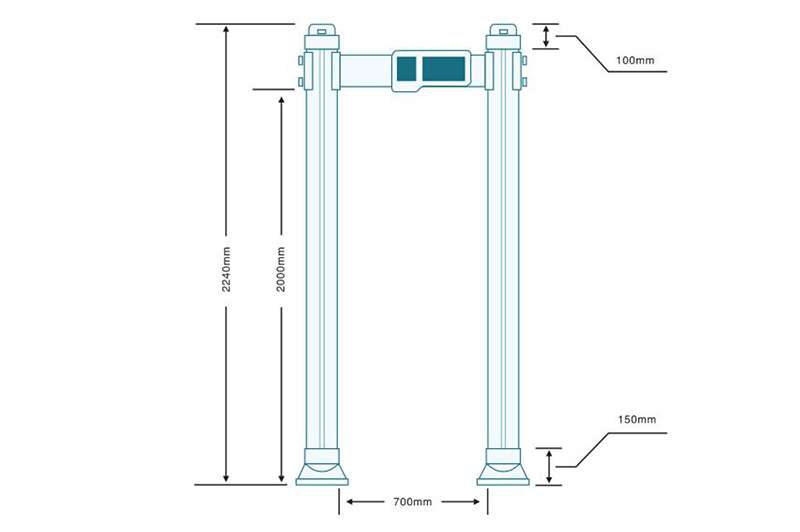

Vertical dimension: 2240×670x850mm

Vertical channel size: 2000x700mm

Packing size: 2400 X 545 X 620 mm

Net weight of main box/detection door: 58KG

Gross weight of main box/detection door: 66 KG

Detection zones: 6, 12, 18, 24, 33 zones

Working voltage: AC90V~240V50/60Hz

Power consumption: 20W

Each zone sensitivity: 1-400 Level

Security level: 100 Level

Working frequency range: 1-50bands

Working environment temperature: -20ºC~65ºC
