Product Name:HD 1080P H.265 ONVIF Waterproof WIFI IP Camera Full Color Night Vision Two Way Audio
Feature
●HD1080P H.265 WiFi IP camera all day full color
●2.0 Megapixel 1920*1080, high definition image quality
●WiFi connection, without cabling work, via WiFi it can be easily connected with your mobile for remote surveillance.
AP mode connection, with wireless access point, camera can be connected to phone directly without router.
●Motion detection, when motion objects detected, it will trigger alarm email alert, app push notification.

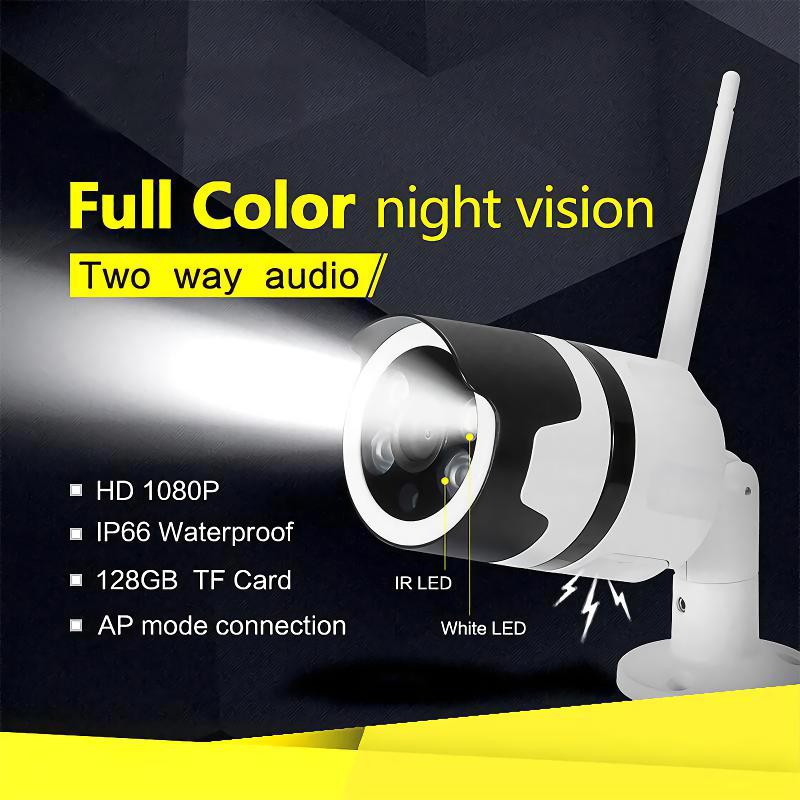

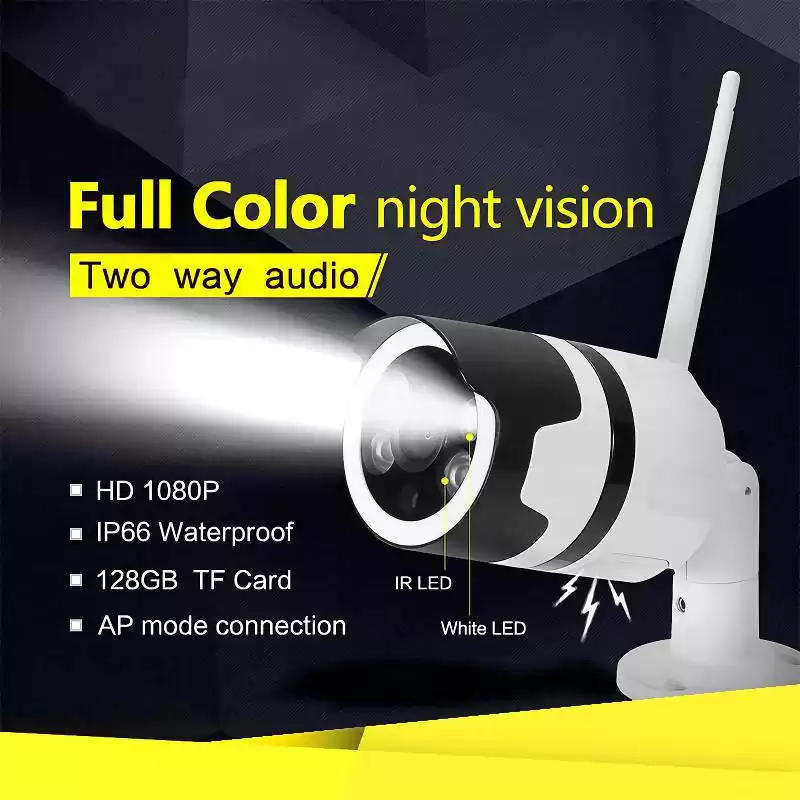

●Night vision
2 PCS lattice IR LED, designed it can capture ultra clear night time image, max up to 15m IR range.
2 PCS white LED, camera switch infrared mode automatically at night, it will turn on the white light to switch full-color mode when motion detection is triggered.
●Two way audio, build in microphone and high quality audio speaker, it can do two way talk online between camera and mobile phone.
●128GB TF card storage, when offline, memory card can also video.
●IP66 waterproof, suitable for indoor and outdoor use, all weather environment applications.
●Multi-platform, Android/iOS, mobile, tablets and computers.
●Compliance with standard Onvif protocol, compatible with various brands nvr, fulfill the needs of rich security and surveillance applications.
Specification
|
Model
|
ANSDEN YAC-QF308
|
|
Camera Parameter
|
|
Camera
|
|
Sensor
|
1/2.7” 2 Megapixel progressive can CMOS
|
|
Electronic Shutter Speed
|
Auto/Manual, 1/25~1/10000s
|
|
Minimum Illumination
|
Color: 0.1Lux@F1.2, B/W: 0.01Lux@F1.2
|
|
Focal Length
|
3.6mm
|
|
Angle of View
|
75.7°
|
|
Functions
|
|
Day/Night Switch
|
2pcs IR LED,IR distance 15m
|
|
Illumination
|
2pcs 1W white Led
|
|
White Balance
|
Auto white balance
|
|
BLC
|
Support BLC
|
|
Digital Noise Reduction
|
Support 3D noise reduction
|
|
WDR
|
Support D-WDR
|
|
Motion Detection
|
Support motion detection
|
|
Privacy Shelter
|
Support 4 zones
|
|
OSD
|
Support OSD setting
|
|
Sleeper
|
Support schedule reboot
|
|
Video
|
|
Compression
|
H.264/H.265
|
|
Resolution
|
Mainstream:1080P(1920*1080),960P(1280*960),720P(1280*720)
|
|
Substream：D1(704*576),360P(640*360),CIF(352*288)
|
|
Video Frame Rate
|
25fps(50HZ), 25fps(60HZ)
|
|
Bitrate
|
64Kbps~12Mbps CBR/VBR adjustable
|
|
Video Adjustment
|
Brightness, Saturability, Chromacity adjustment
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Wireless
|
Support WIFI 802.11b/g/n,2.4G band ;AP mode
|
|
IP Type
|
Dynamic IP and Static IP
|
|
Network Agreement
|
HTTP, TCP/IP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
|
|
Access Protocol
|
Support ONVIF 2.4
|
|
Max User Qty
|
6
|
|
Client
|
iPhone, iPad, Android,Windows PC
|
|
Audio
|
|
Compression Format
|
G.711A
|
|
Input
|
Built in microphone
|
|
Output
|
Built in speaker
|
|
Interface
|
|
TF Card
|
Support max to 128GB TF card(micro SD)
|
|
General
|
|
Power Supply
|
DC12V 1A
|
|
Waterproof
|
IP66
|
|
Power Consumption
|
<6W
|
|
Working Environment
|
-20°C~+60°C, 10%~90%
|
|
Application Environment
|
Indoor and outdoor
|
|

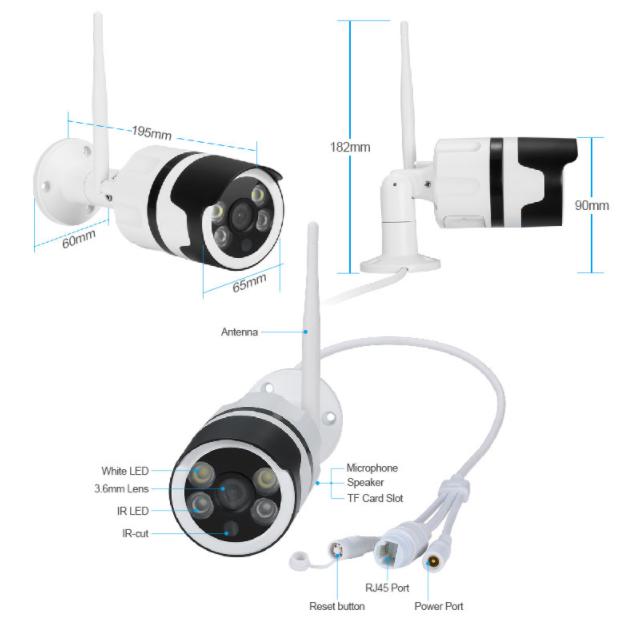

Dimension
|
195mm * 65mm * 65mm
|
|
Weight
|
0.36kg
|
|
Package Dimension
|
220mm * 105mm * 100mm
|
|
Package Weight
|
0.55kg
|
|
Accessories
|
IP Camera*1,Power adapter*1,Waterproof hat*1,Screws*1,Manual*1
|
Dimension
Support two-way voice, build in microphone and high quality audio speaker, it can do two way talk online between camera and mobile phone.
Application
Day and night full-color night vision, 2 infrared lights + 2 white lights, night vision distance 10-15 meters, so that the monitoring night is like daylight.
