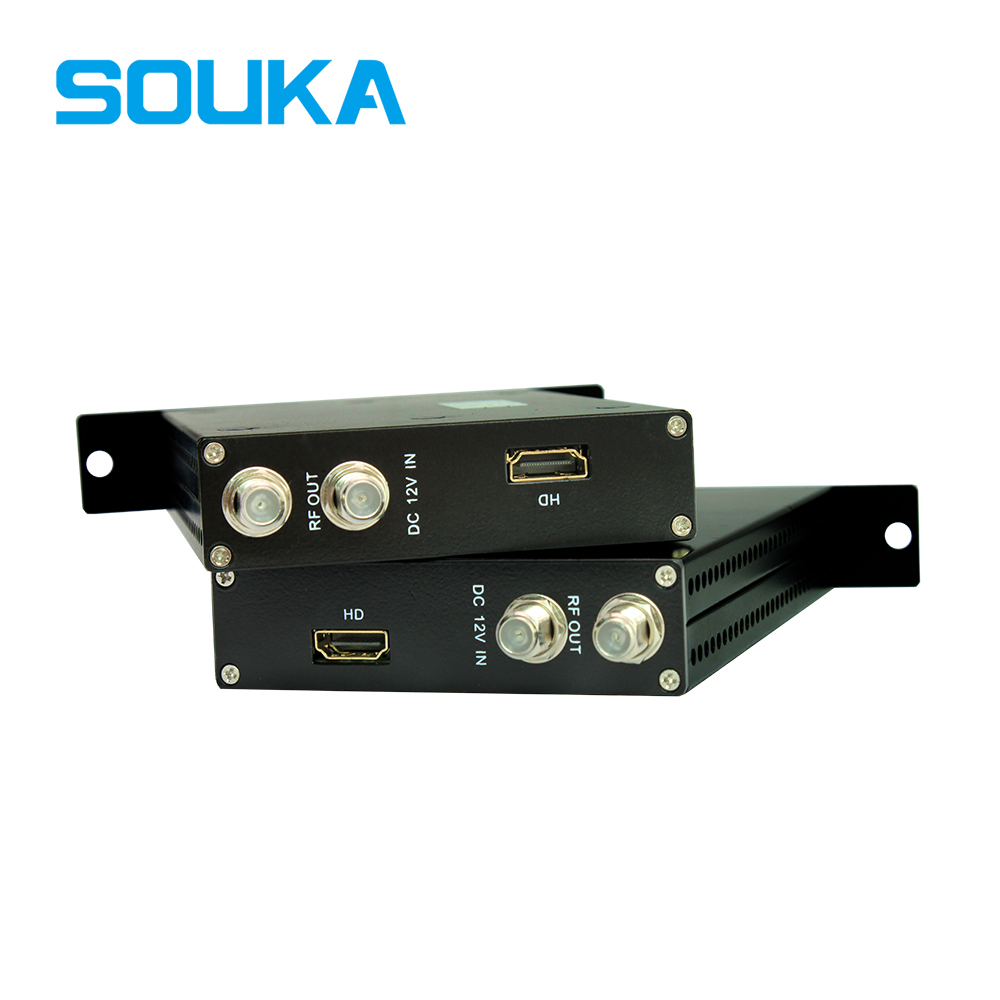

The SKD2716 encoder modulator is a HD input and RF output digital modulator. It supports bandwidth of 6MHz, 7MHz and 8MHz, which can be selected from the front panel.
1. Support MPEG 2 video encoding and MPEG-1 Layer II audio encoding
2. Support 6/ 7/ 8M bandwidth
3. TS ID, PID, service name, provider name all programable
4. Output RF frequency range from 50MHz to 999.999 MHz
5. Output resolution 1080P @30FPS

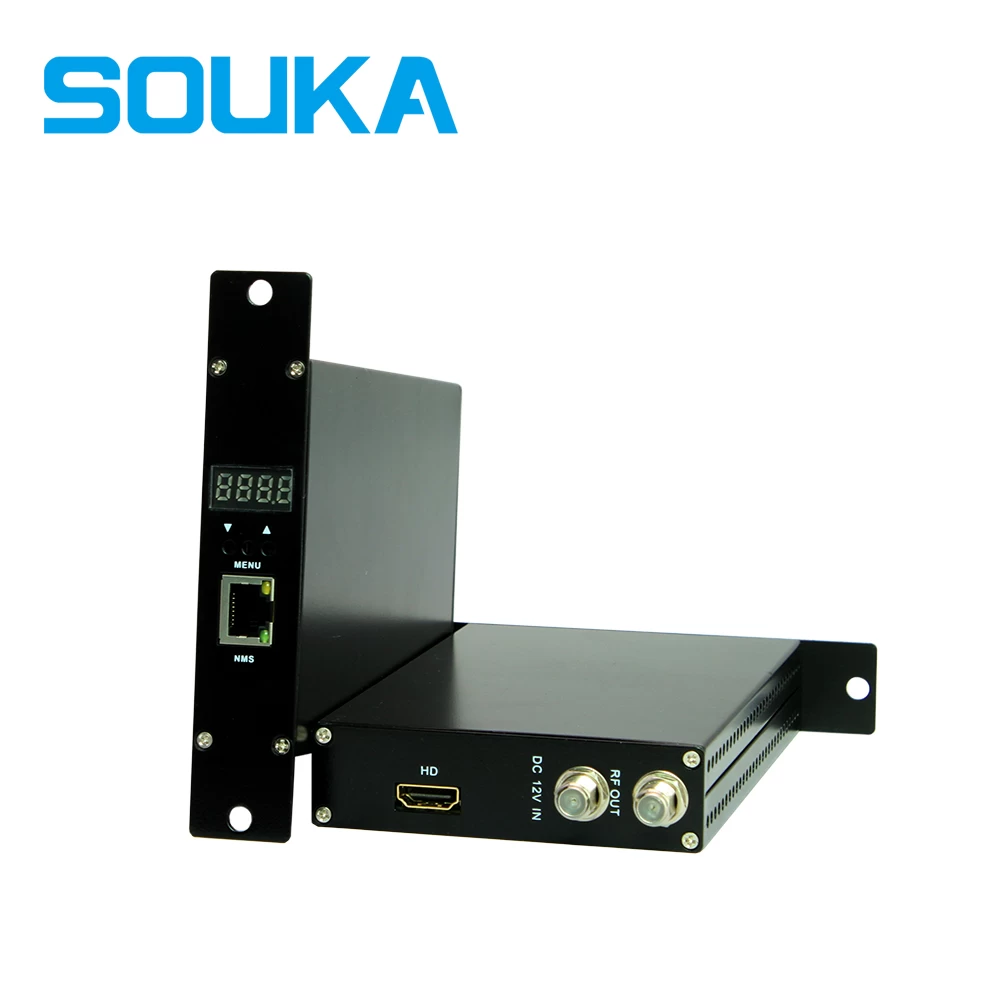

6. User friendly front panel operation for easy set up
7. Support iOS and Andorid phone APP for quicky set up
|
ENCODING
|
|
Input Connector
|
HD 1.4
|
|
VIDEO
|
Encoding
|
MPEG 2
|
|
Input Resolution
|
1920*1080_60P;
1920*1080_50P; 1920*1080_60i;
|
|
1920*1080_50i; 1280*720_60P;
1280*720_50P
|
|
Bitrate
|
2 ~ 18 Mbps
|
|
AUDIO
|
Encoding
|
MPEG 1 Layer II
|
|
Sample Rate
|
48KHz
|
|
Bitrate
|
384kbps
|
|
MODULATION
|
|
DVB-T
|
Standard
|
DVB-T COFDM
|
|
Bandwidth
|
6M, 7M, 8M
|
|
Constellation
|
4QAM, 16QAM, 64QAM
|
|
MER
|
≥ 35 dB
|
|
Transmission Mode
|
2K, 4K, 8K
|
|
Code rate
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
OUTPUT
|
|
RF
|
Output Level
|
≥ 30dBmV
|
|
Output Frequency Range
|
50 ~ 999.999MHz
|
|
Out-band Rejection
|
≥ 60dB
|
|
SYSTEM
|
|
Management
|
Control Keys; NMS; APP
|
LCN Insertion
|
YES
|
|
Language
|
English
|
Upgrade
|
NMS
|
|
GENERAL
|
|
Power Supply
|
DC12V 1A
|
Power Consumption
|
|
