HDPE Easy Install Horse Arenas Gravel Grid Systems

HDPE gravel grid system manufactured from Leiyuan is an excellent gravel stabilizing system. The gravel grid systems will leave you with a stunning surface that is easy to maintain when filled the product is practically invisible.



HDPE EASY INSTALL HORSE AREANAS GRAVEL GRID SYSTEMS

HDPE gravel grid system manufactured from Leiyuan is an excellent gravel stabilizing system. The gravel grid systems will leave you with a stunning surface that is easy to maintain when filled the product is practically invisible.

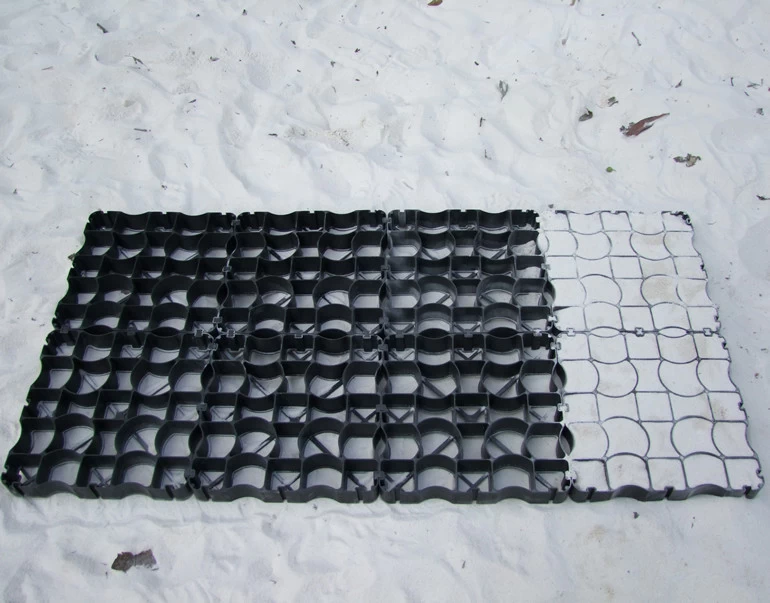

HDPE Easy Install Horse Arenas Gravel Grid Systems

LEIYUAN NEW ONLINE MUD MANAGEMENT PRODUCT –GRAVEL GRID SYSTEMS

Horse Arenas Gravel Grid System is a high quality and versatile range of 100% recycled high density plastic, permeable paving. HDPE Gravel Grid Systems from Leiyuan Industrial Company Limited is the best quality product of its kind in the market place. It is best mud management solutions for all equestrian facilities and livestock owners. Grid floor has a compressive strength of up to 250 tonnes per m2.



DIMENSION

 MATERIAL:  HDPE(100% Recycled High Density Polyethylene)
 SIZE:  336*336*50mm
 COLOR:  Black; Dark Green
 CELL WALL THICKNESS:  2mm
 WEIGHT:  0.65kg/pc; 5.85kg/m²
 PACKING:  Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m² in one go.
 LOADING QUANTITY:  570m2/20’gp, 1150m2/40’gp, 1310m2/40’HQ


SPECIFICATION

 LOADING BEARING CAPACITY:  More than 250tons/m2 after filled
 OPEN CELL PERCENTAGE:   92% top; 75% base
 ANTI HCL:  According to GB4218-1984, 30%x24h, no visible change
 ANTI NaOH:   According to GB4218-1984, 30%x24h, no visible change
 THERMAL AGING:   According to GB/T 7141-1999, 70ICx24h, no visible change
 UV RESISTANCE:  According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified
 TOXICITY:  Non Toxic
 DURABILITY:  Durability of at least 10 years in neutral ground of 4<pH<9



COLORS

HDPE Gravel Grid SystemsHDPE Gravel Grid Systems


APPLICATION


  • Indoor and outdoor riding arenasPaddock Grid Floor

  • Paddocks and open stables

  • Horse walkers

  • Lunging arena

  • Equestrian sports area

  • Tethering and mounting areas

  • Feeding spots

  • Tolt tracks, Racetracts

  • Gravel road

  • Round pens

  • Washing areas.




FEATURE

Plastic Grid Floor



-Light weight

-Non-slip

-Elastic and robust

-Easy Install

-Crack-proof

-Weatherproof

-Environmentally friendly, 100% recyclable

-High load capacity

-Ammonia resistant

-Withstands frost and UV light

-Does not rot

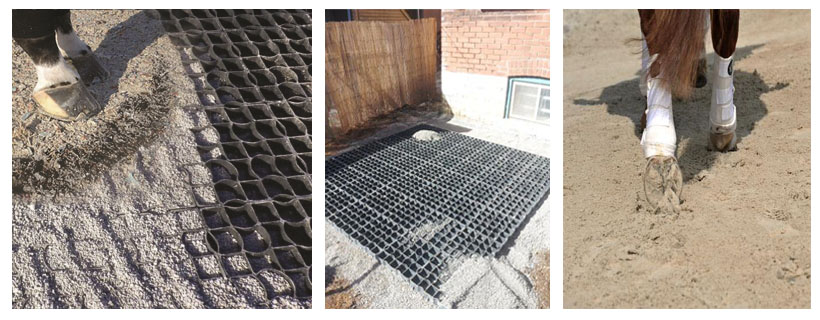

PROJECT SHOW

Plastic Grid Floor System
